30 W SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY 12 V 2 A

SKU:HDR-30-12
30 W SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY 12 V 2 A

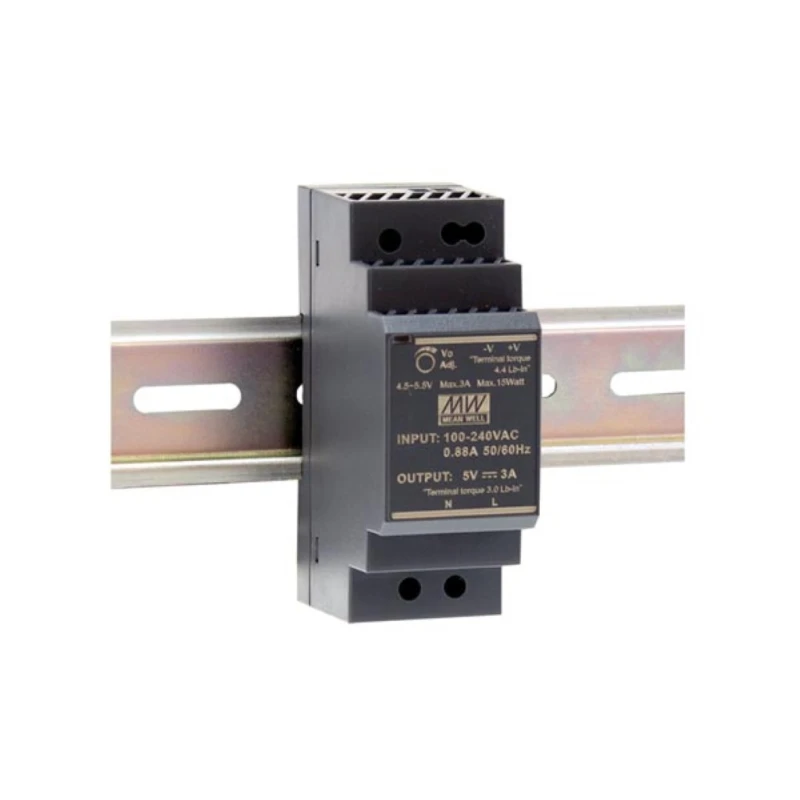

Image is for illustrative purposes only

Features:
    ultra slim design with 35 mm (2SU) width
    universal input 85-264 VAC (277 VAC operational)
    no load power consumption <0.3 W
    isolation class II
    pass LPS (limited power source)
    DC output voltage adjustable
    protections: short circuit / overload / over voltage
    cooling by free air convection (working temperature : -30 - +70°C)
    DIN rail TS-35/7.5 or 15 mountable
    over voltage category III
    LED indicator power on
    3 year warranty
    [b]for professional use only[/b]
    This device must be installed by a qualified person.
Specifications:
    output:
      DC voltage: 12 V
      rated current: 2 A
      current range: 0 - 2 A
      rated power: 24 W
      ripple & noise (max.): 120 mVp-p
      voltage adj. range: 10.8 - 13.8 V
      voltage tolerance: ± 1.0 %
      line regulation: ± 1.0 %
      load regulation: ± 1.0 %
      setup, rise time: 500 ms, 50 ms / 230 VAC - 500 ms, 50 ms / 115 VAC at full load
      hold up time (typ.): 30 ms / 230 VAC - 12 ms / 115 VAC at full load
    input:
      voltage range: 85-264 VAC (277 VAC operational) - 120-370 VDC (390 VDC operational)
      frequency range: 47 - 63 Hz
      efficiency (typ.): 88 %
      ac current (typ.): 0.88 A / 115 VAC - 0.48 A / 230 VAC
      inrush current (typ.): cold start 25 A / 115 VAC - 45 A / 230 VAC
    protection:
      overload:
        105 - 160 % rated output power
        protection type: constant current limiting, recovers automatically after fault condition is removed
      overvoltage:
        15 - 18 V
        protection type: shut down output voltage, re-power on to recover
      environment:
        working temperature: -30 to +70 °C
        working humidity: 20 to 90 % RH non-condensing
        storage: -40 to +85 °C, 10 to 95% RH
        temperature coefficient: ± 0.03 %/°C (0 - 50°C )
        vibration: 10 - 500 Hz, 2G 10 min / 1 cycle, 60 min each along X, Y, Z axes; mounting: compliance to IEC60068-2-6
        operating altitude: 2000 m
        over voltage category: III, according to EN61558, EN50178, EN60664-1, EN62477-1, altitude up to 2000 meters
      safety & EMC:
        safety standards: UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved, design refer to TUV EN60950-1
        withstand voltage: input to output: 4 kVAC
        isolation resistance: input to output: 100 MOhm / 500 VDC / 25 °C / 70 % RH
        EMC emission:
          conducted: EN55032 (CISPR32) / Class B
          radiated: EN55032 (CISPR32) / Class B
          harmonic current: EN61000-3-2 / Class A
          voltage flicker: EN61000-3-3
        EMC immunity:
          ESD: EN61000-4-2 / Level 3, 8KV air - Level 2, 4KV contact - criteria A
          radiated susceptibility: EN61000-4-3 / Level 3 - criteria A
          EFT/Burest: EN61000-4-4 / Level 3 - criteria A
          surge: EN61000-4-5 / Level 4, 2KV/L-N - criteria A
          conducted: EN61000-4-6 / Level 3 - criteria A
          magnetic field: EN61000-4-8 / Level 4, criteria A
          voltage dips and interruptions: EN61000-4-11 / >95% dip 0.5 periods, 30% dip 25 periods - >95% interruptions 250 periods
        other:
          MTBF: 968.1Kh, MIL-HDBK-217F (25 °C)
          dimensions: 35 x 90 x 54.5 mm (w x h x d)
powersupplya4v04.pdf
Download
hdr-30_infosheet.pdf
Download
Regular price
25.00 €
Customer price23.75 €-5%
Orderable, delivery time 15. October 2025
