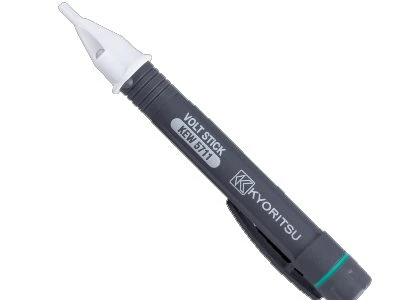

Voltage Detector : 20 - 1000 V AC ( Kyoritsu )

• Senses AC voltage through insulation
• Buzzer sounds and tip glows upon ac voltage detection
• Powerful flashlight
• Dual range (Hi/ Lo) sensitivity
• Ready to use without power-on
• Designed to meet IEC61010-1
• Operating voltage: 90 - 1000 V AC(Lo sensitivity)
                     20 - 1000 V AC(Hi sensitivity)
• Frequency range: 50/60Hz
• Operating temperature: -10 - 50°C
• Storage temperature: -20 - 60°C
• Applicable Standards:    IEC 61010-1 CAT Ⅳ 600V / CAT Ⅲ 1000V
• Power source: LR03 / R03(AA)(1.5V) × 2
• Dimensions: 153(L) × φ20mm
• Weight: 40g (including batteries)
• Accessories:LR03(AA) × 2, Instruction manual

• Datasheet: KEW5711
