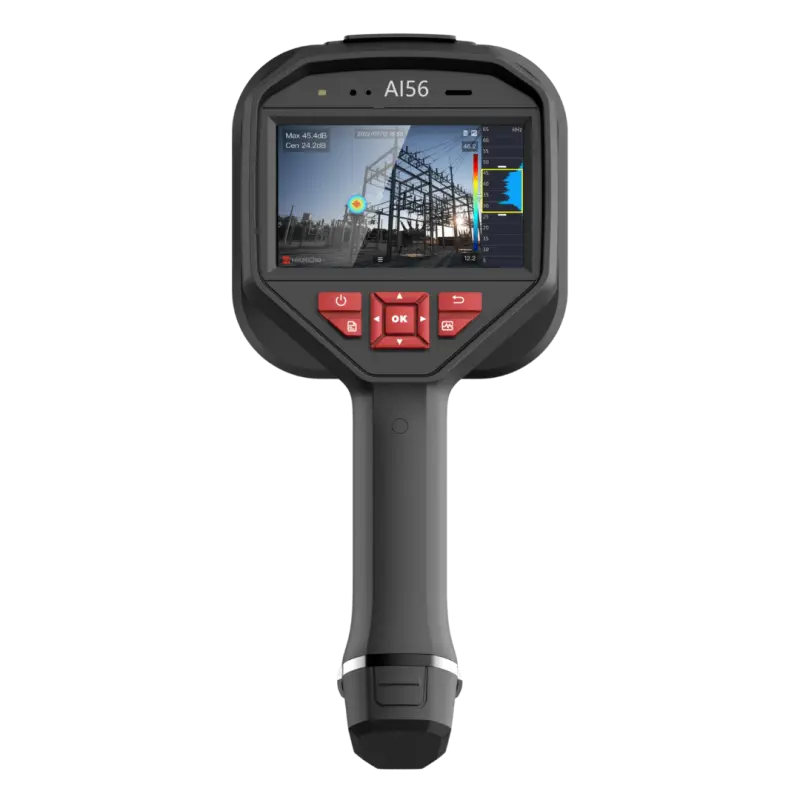

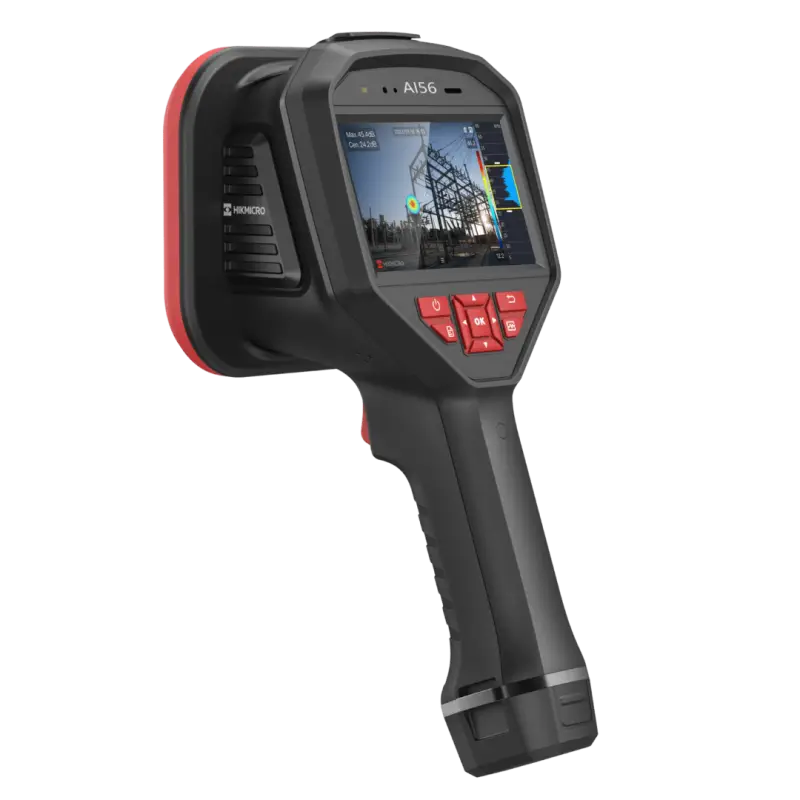

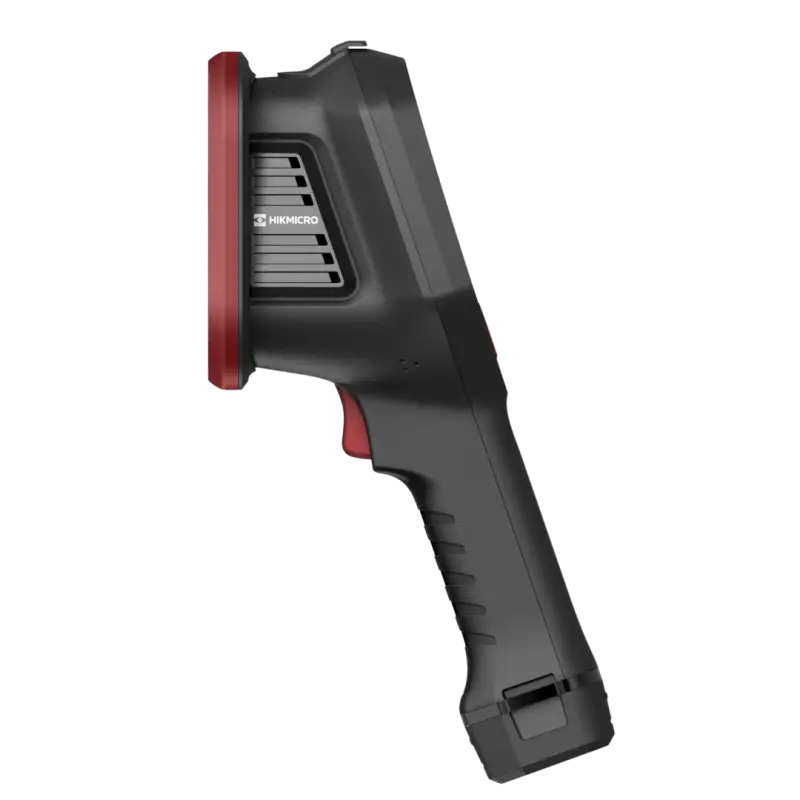

Acoustic imaging camera Hikmicro AI56L

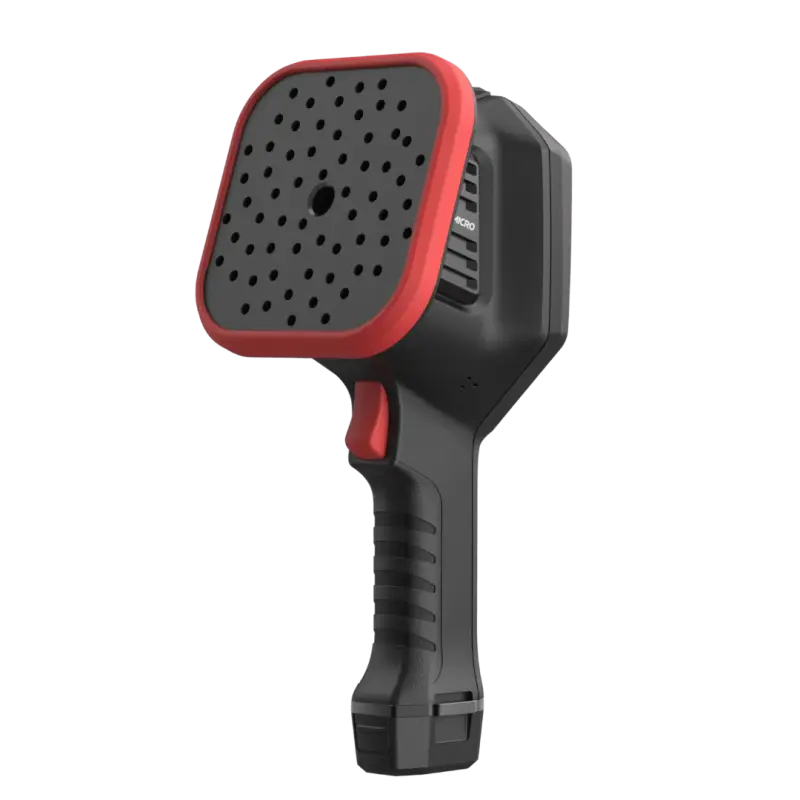

HIKMICRO AI56L is a professional handheld acoustic imaging camera designed for quick and accurate detection of compressed air and gas leaks. This device is equipped with 64 high-sensitivity MEMS microphones, ensuring exceptional acoustic sensitivity and precision.

Thanks to the large 800 × 480 resolution 3.5’’ LCD touch screen, visualizing and locating leaks is easy and intuitive. The device can detect leaks from a distance of 30 cm and the measurement distance reaches up to 150 meters, offering a sensitivity of >0.013 l/min @ 5 bar from a distance of 1 m.

The AI56L supports essential functions such as 8 different color palettes, Bluetooth, and Wi-Fi hotspot for connecting with a smartphone application. Store video or image material on a memory card up to 64GB and add text or voice notes if needed.

This locator is an ideal tool for maintenance, diagnostics, repair, rescue, and inspection, helping to significantly reduce energy loss and improve system efficiency. Use HikMicro Analyzer Acoustic software for PC connection to perform in-depth analysis and generate professional reports.

Durable IP54 protection rating and a wide operating temperature range (-20 °C to 50 °C) ensure reliable operation even in harsh environments. The set includes a durable carrying case and a spare battery with a charger.
