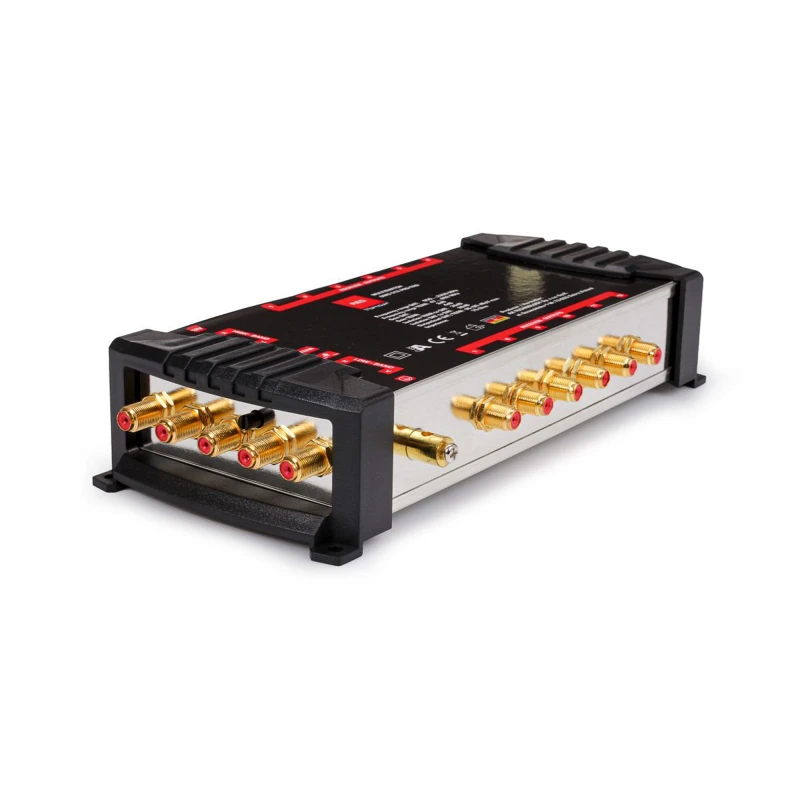

Multiswitch OPTICUM OMS 5/12 PRO TRQ PLATINUM

Multiswitch: OPTICUM OMS 5/12 PRO TRQ PLATINIUM
The multiswitch is designed for an antenna installation of a DVB-S2 satellite television and DVB-T2 terrestrial television system.
Gold-plated sockets significantly reduce signal loss at the antenna cable connection and prevent oxidation.
The multiswitch automatically recognizes the type of signal to be transmitted to the tuners.
The installation should include connecting the multiswitch to a satellite antenna with a diameter of at least 0.8m and a Quattro or Quad converter, as well as a terrestrial television antenna.
The separation of satellite and terrestrial signals exiting the multiswitch is done using end-user sockets.
The multiswitch is powered by an external power supply, which eliminates the phenomenon of increased operating temperature, a common cause of device damage.
Connection:
one Quattro or QUAD converter
one DVB-T terrestrial antenna
12 terrestrial and/or satellite television receivers

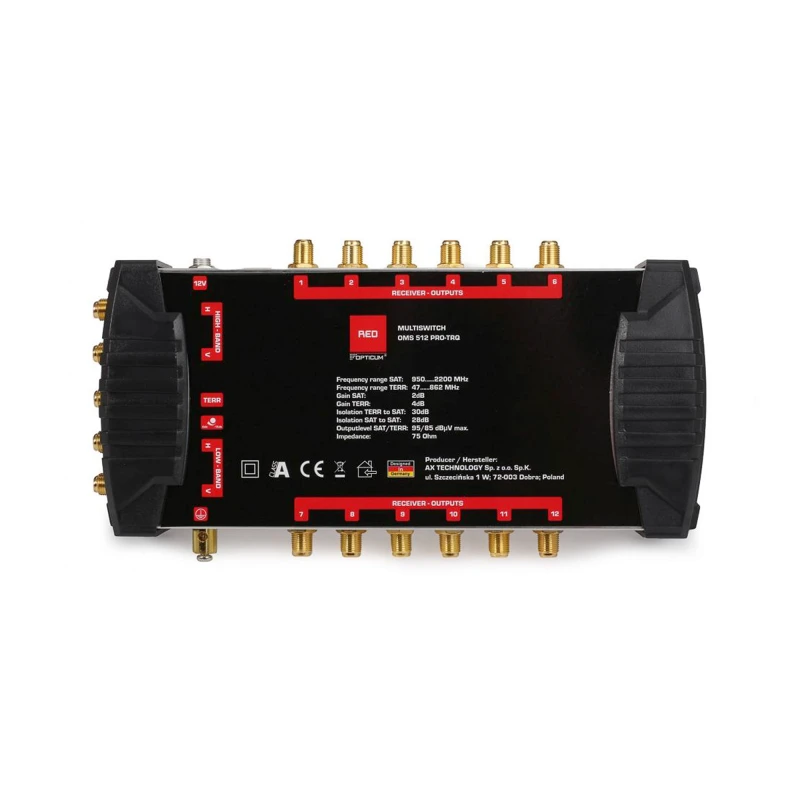

Technical data:
SAT frequency range : 950-2200 MHz
TER frequency range : 47-862 MHz
SAT gain (950-2150 MHz) : 2 dB
TER gain (47-862 MHz) : 4 dB
SAT to TER separation : 30 dB
TER to SAT separation : 28 dB
H/V polarization separation : 25 dB
Maximum SAT output level : 95 dBuV
Maximum TER output level : 85 dBuV
Input/output impedance : 75 Ohm
Polarization/band switching : 13V/18V 13V/22kHz-18V/22kHz
Mains power supply: 230V AC 50Hz
Operating temperature : 0...+55 oC
Dimensions : 255 x 130 x 54 mm (actual dimensions)

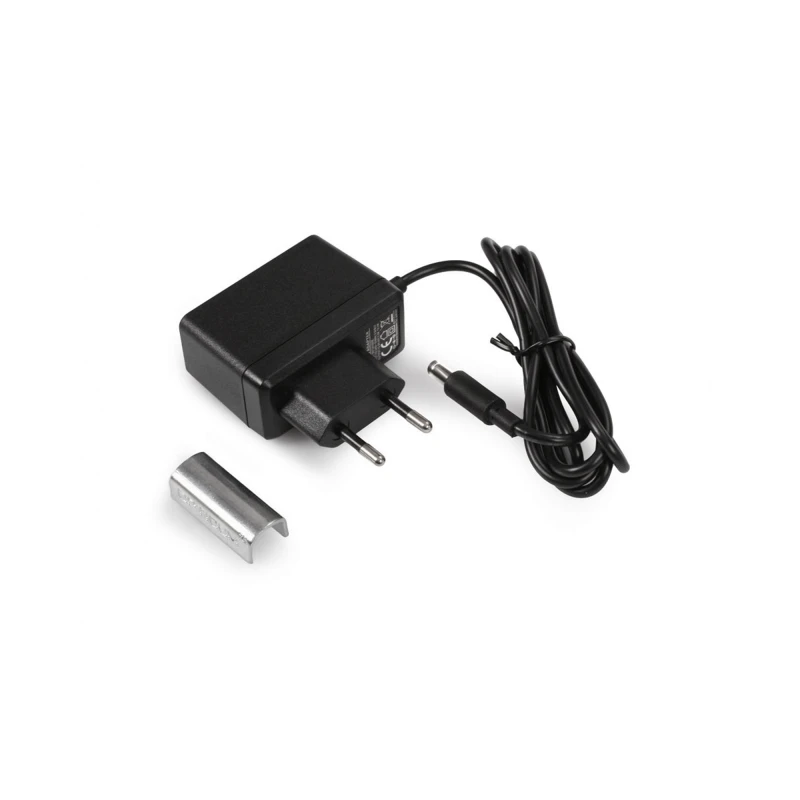

Set includes:
- Multiswitch
- F connector screwing tool
- Mains power adapter
- Original packaging
