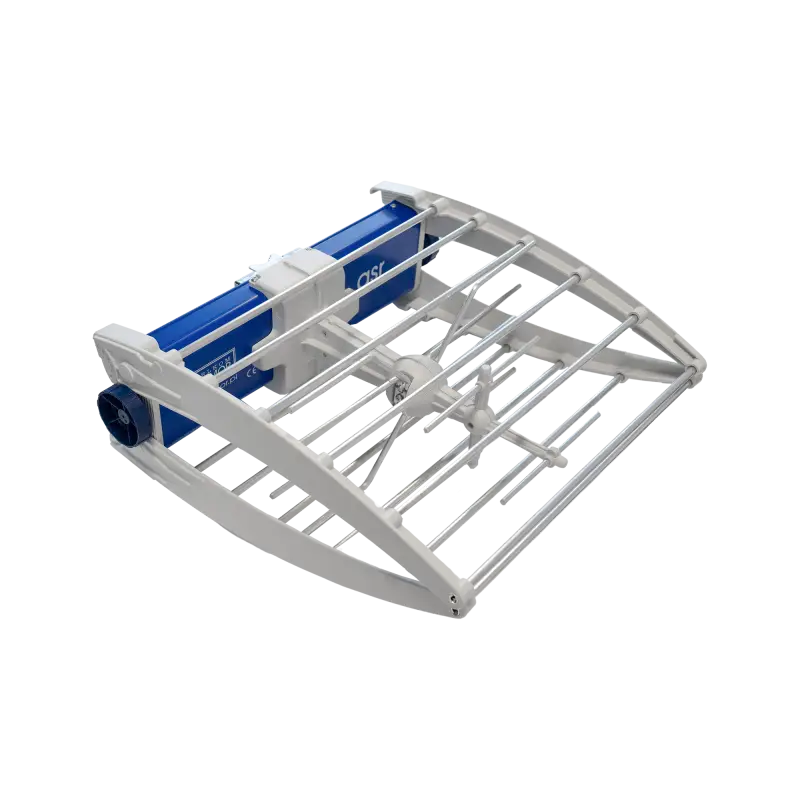

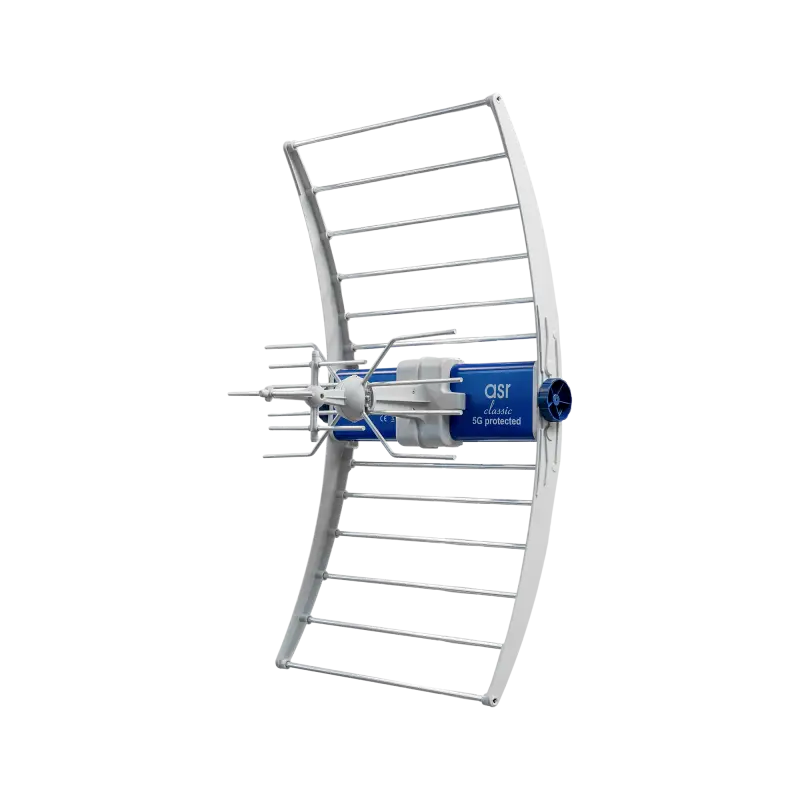

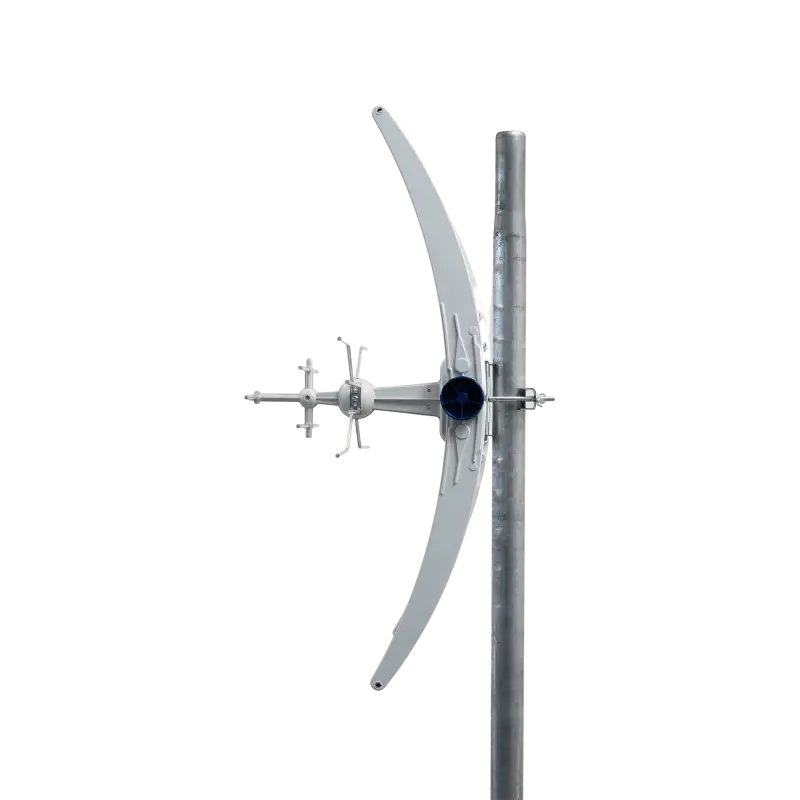

TV Antenna ASR Classic 5G PROTECTED 2023 with ZZA-7 Telkom Telmor

Designed for: receiving digital terrestrial television DVB-T2
Protects the signal from interference from: 5G/LTE/GSM
Features: a modern SAW band-pass filter 470-694MHz
Operating mode: active and passive (by-pass)
Aesthetic and durable construction has been further improved!
Powered by: 5…24V DC voltage (with or without power supply included)
Frequency range: 470-694 MHz
Gain max.: 14 dBi
Pre-amplifier gain max.: 17-21 dB
Attenuation outside operating band: >20/703-800 dB
Attenuation outside operating band: >25/801-1000 dB
Attenuation outside operating band: >35/1001-2600 dB
Horizontal Polarization (H)
3dB beamwidth (horizontal plane): 40 deg
Front/back ratio: 24 dB
Noise figure: 4 dB
Maximum TV signal level at output (DIN): 102 dBuV
Power supply / current consumption: 12..24 / 50 V DC / mA
Power supply / current consumption: 5 / 4 V DC / mA
Mast diameter – maximum: 25-60 mm
Max. wind load: 120 N
Output impedance: 75 Ohm
Output connector type: "F" socket
Antenna dimensions unfolded: 820 x 455 x 220 mm
Net weight: 2.48 kg
Packaging: carton
