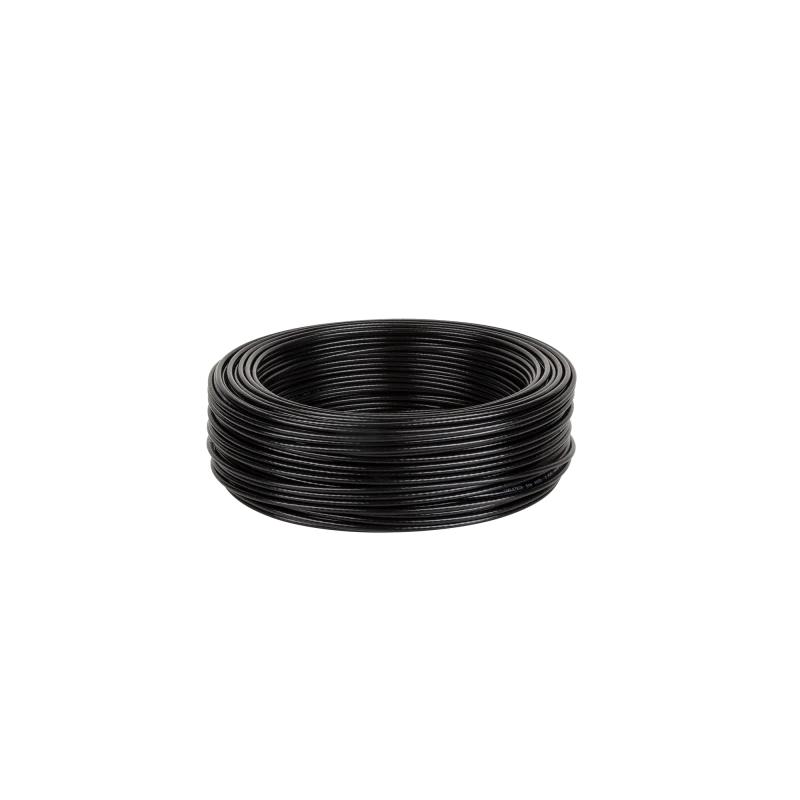

RG11 coaxial cable (F1160BV) 75 Ohm 100m

Used as the main signal cable in building risers.-
Outer insulation diameter: 10.03 mm
Outer insulation material: PVC
Braid coverage factor: 60%
Maximum tensile strength: 166 kg
Characteristic impedance: 75 Ohm
DC loop resistance: 65 Ohm/km
Shielding factor: 80 dB
Propagation speed: 85 %
CABLE ATTENUATION
- 5MHz - 1.25db/km
- 55MHz - 3.15db/km
- 83MHz - 3.87db/km
- 250MHz[dB/100m] - 6.72db/km
- 450MHz[dB/100m] - 9.02db/km
- 865MHz[dB/100m] - 13.05db/km
- 1000MHz[dB/100m] - 14.27db/km
