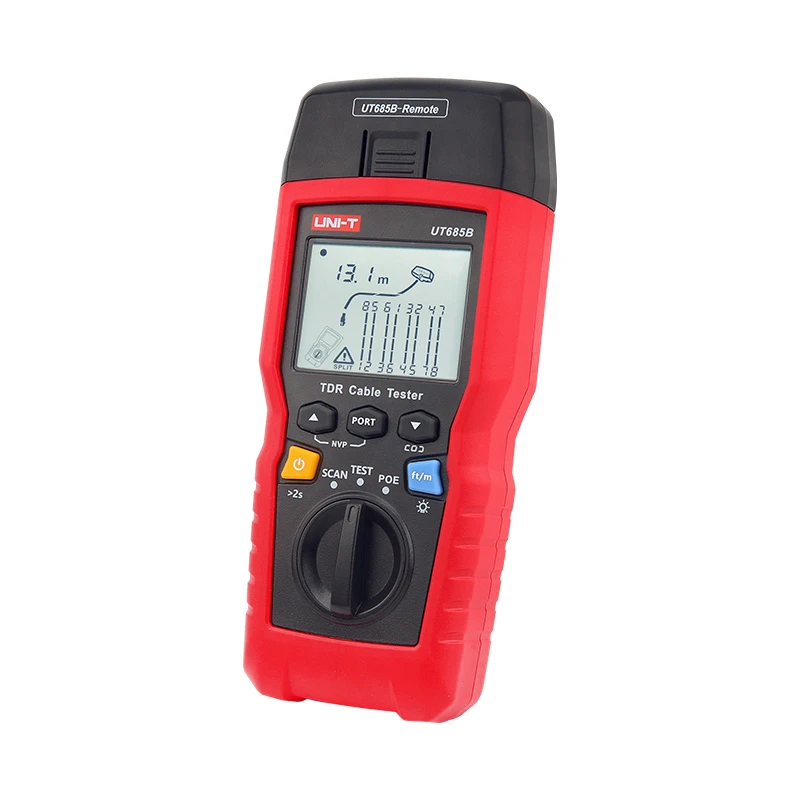

The UT685B-KIT TDR cable tester is an elaborate kit for testing various types of cables, such as coax, twisted pair, and PoE network cable. With this kit it is possible to find the cable, detect the length of the cable, line sequence and detect whether PoE is performing according to standards. In addition, it is possible to follow the cable by means of optics and acoustics.

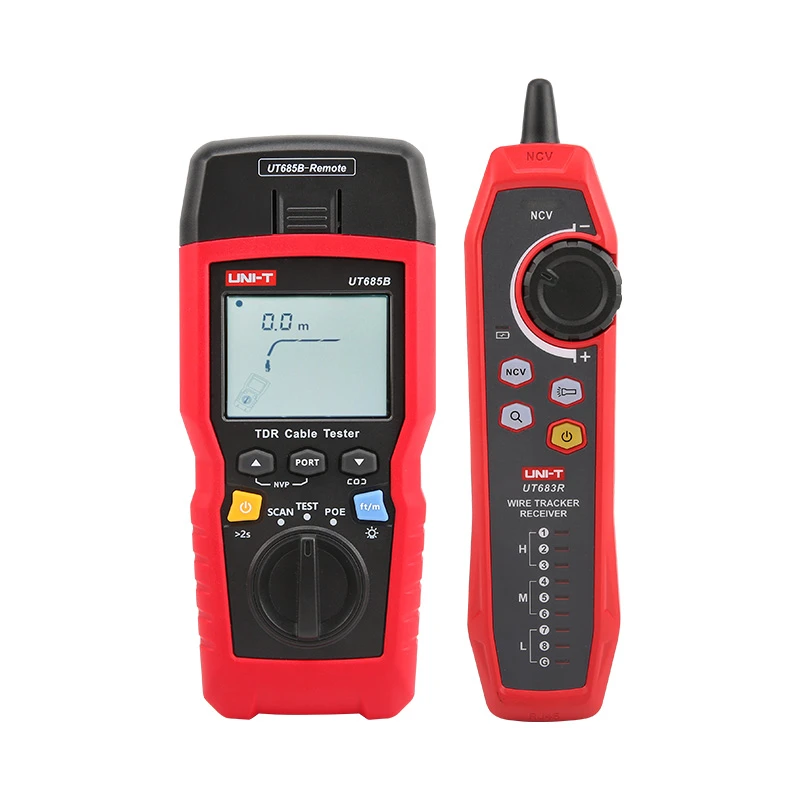

The kit consists of the UT685B cable tester, in combination with the UT683R receiver and appropriate adapters. It is because of the completeness of the UT685B-kit, in addition to features such as a built-in flashlight and a backlit display, that this cable tester stands out and is the standard for technicians working on complicated installations.
Specifications
| Supported cable types | Twister pair cable: UTP, FTP and SSTP Coaxial cable: 50 Ω, 75 Ω, 93 Ω |
| Cable length range | 500 m (0.33 m resolution) |
| PoE detection standards | 802.3AF, 802.3 AT, 802.3BT |
| DTF (Distance to fault) indication | Yes, in meters |
| Ethernet port test | Yes |
| Connectivity | RJ45, RJ11, coax |
| Input protection | 70 V DC |
| Display | 2.8" LCD |
| Batteries | 3x AA |
| Dimensions | Tester: 181 x 80 x 39 mm Receiver: 197 x 48 x 34 mm |
| Weight | Tester: 360 g Receiver: 127 g |
Accessories
The UT685B-kit is supplied including:
- UT685B tester
- UT683R receiver
- RJ45 adapting cable
- RJ11 adapting cable
- RJ11 adapting cable (adapted to alligator clip)
- F-connector to F-connector plug
- Carrying bag
- Batteries
-
