SKU:ANT0085.2

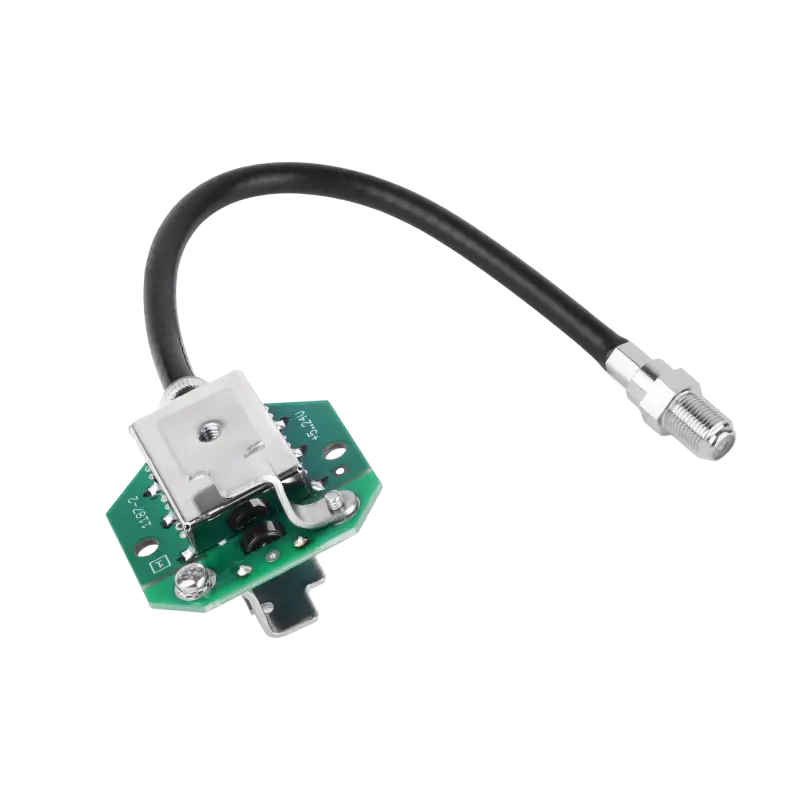

Image is for illustrative purposes only
VHF (174-230 MHz) and UHF (470-694 MHz) band support
Powered from TV (5V DC) or 12V DC power supply
Lowest self-noise on the market!
High intermodulation resistance
Low power consumption
Full compliance with RED Directive
Fits ASR antennas produced for 20 years!
----------Technical data----------
Operating band: FM/ VHF/ UHF
Operating frequency range: 174-230 and 470-694
Gain: 18 dB +/-2 dB
Attenuation outside operating band: >30dB / 700MHz
Maximum output signal level: 105 dBuV
Noise figure: 2.5 dB
Input/output impedance: 300 Ohm / 75 Ohm
Power supply: 5...12V DC
Current consumption: 30 mA +/-3 mA
Output connector type: "F" female
Net weight: 0.05 kg
The PAD-720 type antenna preamplifier is designed for amplifying weak terrestrial TV signals received by ASR series receiving antennas. A new generation SAW filter is built-in, which effectively protects against interference.
The PAD-720 preamplifier is intended for use exclusively in ASR antennas. The device is powered via the coaxial cable from the output side. Due to the wide range of permissible supply voltages from 5-12V, the amplifier in question can be powered: directly from the tuner, or the television (the above devices must have the ability to output 5V DC voltage), or via an external power separator (with power supply) type ZZA-7 or TT-PS 12V.
Effectively protects against strong LTE/5G signals in the 700, 800, and 900 MHz bands and against LTE450.
If your ASR antenna has stopped working – don't throw it away! Buy PAD 720, save money, install and launch it with new technology!
