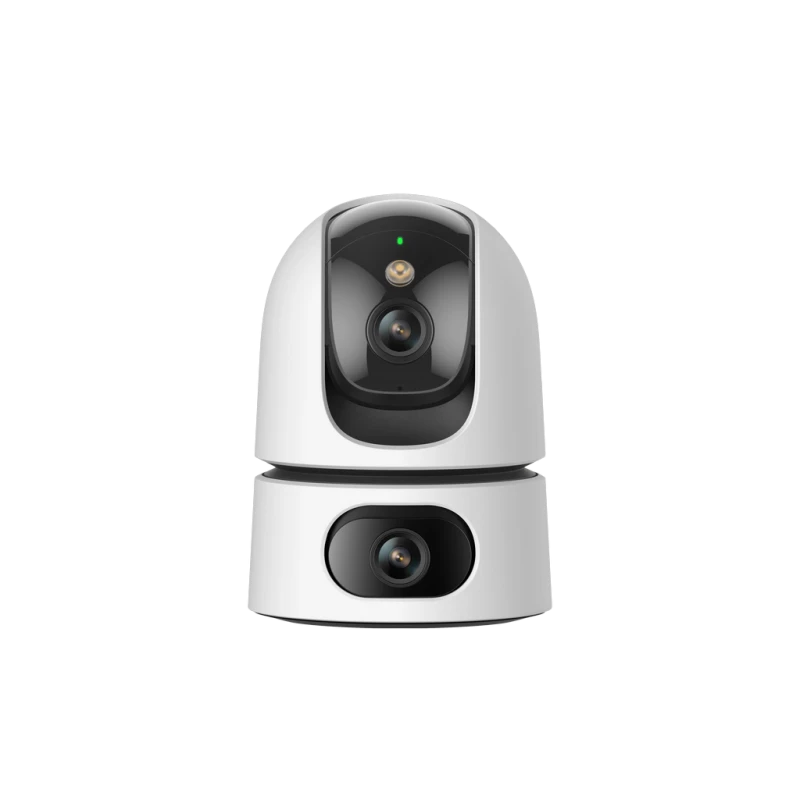

IMOU Ranger Dual PT WIFI kaamera, 5+5MP, IPC-S2XP-10M0WED

IMOU Ranger Dual PT WIFI Camera, 5+5MP, IPC-S2XP-10M0WED
5+5 MP dual camera, smart full-color night vision, and IMOU SENSE® dual-channel detection make the Ranger Dual the solution that provides a complete overview of your home, day and night.

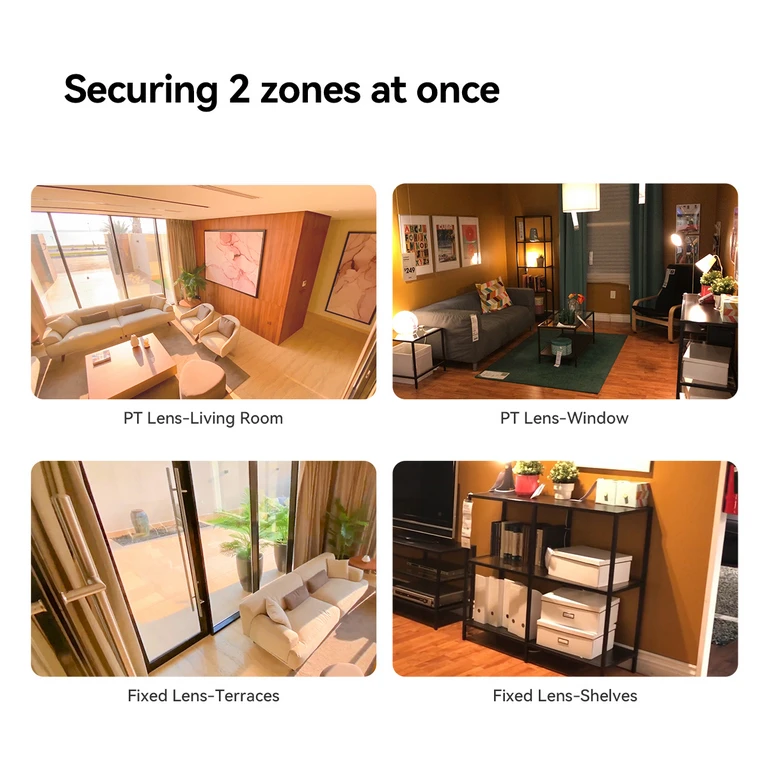

Two Lenses – Two Views Simultaneously
The Ranger Dual combines a rotatable PTZ lens with a fixed lens located below. This allows you to monitor two areas simultaneously:
PTZ lens – living room
PTZ lens – window view
Fixed lens – terrace
Fixed lens – shelves


The lens combinations are flexible and suitable for various spatial arrangements.

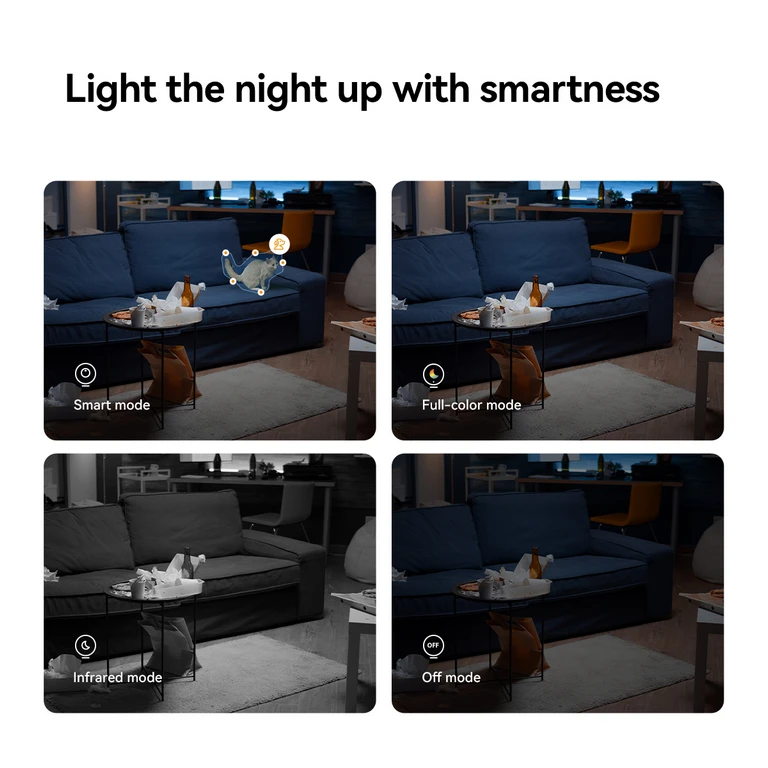

Smart Full-Color Night Vision
The Ranger Dual features four night vision modes that you can choose from according to your preference:
Smart Mode: the camera switches to color mode only when motion is detected
Full Color: 24/7 color night vision with built-in spotlights
IR Mode: clear black and white image in the dark
OFF Mode: all night vision functions are turned off


360° Coverage
PTZ lens: 0°–355° horizontal and 0°–90° vertical
Fixed lens: 0°–350° horizontal and 0°–10° vertical


Dual coverage ensures that no corner goes unmonitored.

IMOU SENSE® – Faster and More Accurate Detection
Each lens has its own IMOU SENSE® algorithm. This means:
50% more accurate detection, regardless of using two lenses
Reaction time of only 0.02 seconds


The camera reliably detects both people and pets, tracks movement, and sends notifications directly to your phone. If necessary, the device can also sound an alarm.

Sound Event Detection
The camera reacts to unusually loud sounds, such as:
baby crying
breaking glass


This way, you'll be notified of everything happening at home.

Fully Customizable
Save favorite views
Specify areas the camera should monitor
Customizable alarm signal


110 dB Siren Deters Unwanted Visitors
In case of intrusion, a loud siren activates, helping to deter unwelcome guests.
Technical Specifications

Camera

Fixed Lens

Sensor: 1/3" 5MP Progressive CMOS
Resolution: 5MP (2880 × 1620)
Night Vision: up to 15 m
Lens: 3.6 mm
Field of View: 87° (H), 47° (V), 105° (D)
Movement: 0–355° pan / 0–15° tilt

Pan & Tilt Lens

Sensor: 1/3" 5MP Progressive CMOS
Resolution: 5MP (2880 × 1620)
Night Vision: up to 15 m
Lens: 3.6 mm
Field of View: 87° (H), 47° (V), 105° (D)
Movement: 0–355° pan / 0–90° tilt

Network

1 × 100 Mbps Ethernet port
Wi-Fi: IEEE802.11 b/g/n/ax, 2.4 GHz, Wi-Fi 6
Open area range: up to 50 m
App: Imou App (iOS, Android)
ONVIF support

Video and Audio

Video Codec: H.265 / H.264
Frame Rate: up to 15 fps
8× digital zoom
Two-way audio

Additional Interfaces

microSD card slot (up to 512 GB)
Built-in microphone and speaker
Reset button

Smart Notifications

Motion detection
Human detection
Pet detection
Definable monitoring areas
Unusual sound level notifications

General Data

Power Supply: DC 5V 1.5A
Power Consumption: <5.65 W
Operating Conditions: –10°C … +45°C, <95% RH
Dimensions: 82.2 × 82.2 × 115.4 mm
Weight: 225 g
Certifications: CE, UKCA

Package Contents
Camera
Quick start guide
Power adapter
USB cable
Screw kit
Quick mounting plate
Installation template
