SKU:CSB-EVX12170

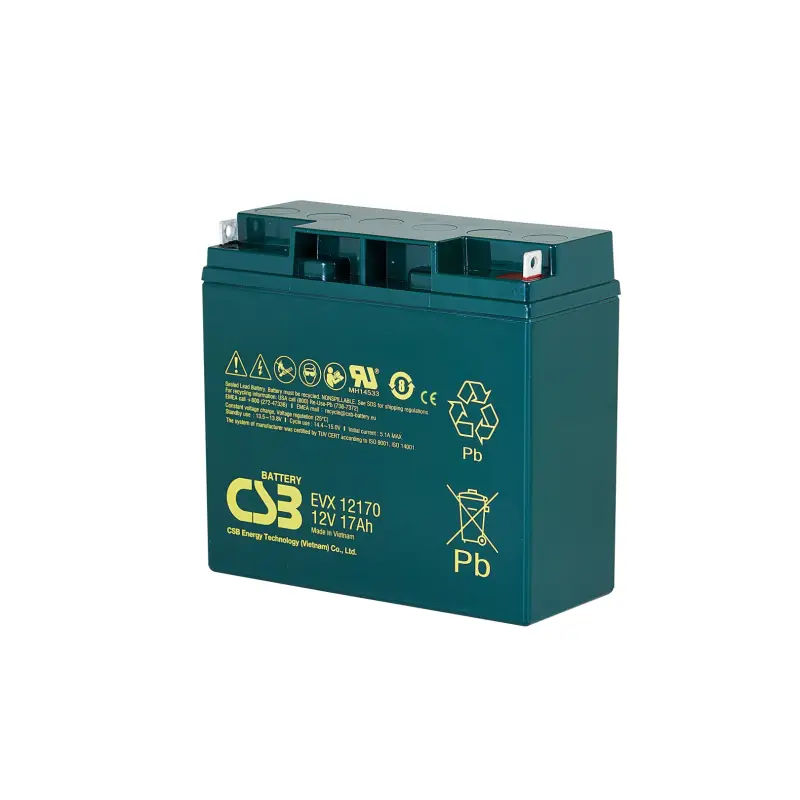

Image is for illustrative purposes only
Reliable and Maintenance-Free Power Source
The CSB lead-acid battery EVX 12170 offers dependable performance for a wide range of applications.
EVH Series Features:
Cycle resistant technology
High current capability
Impact and breakage resistant plastic
Valve-regulated plastic construction
Installation independent of position
Suitable Applications:
E-scooters, wheelchairs, campers, construction machinery, mobile measuring and testing equipment, vending machines, traffic engineering, marine, railroad, and military equipment.
The CSB lead-acid battery EVX 12170 offers dependable performance for a wide range of applications.
EVH Series Features:
Cycle resistant technology
High current capability
Impact and breakage resistant plastic
Valve-regulated plastic construction
Installation independent of position
Suitable Applications:
E-scooters, wheelchairs, campers, construction machinery, mobile measuring and testing equipment, vending machines, traffic engineering, marine, railroad, and military equipment.
Manufacturer: CSB Battery
Model: EVX 12170
Rated voltage: 12 V
Capacity: 17 Ah (20hr)
Maximum discharge current: 230A (5sec)
Weight: 5,67 kg
Dimensions: 181 x 76,2 x 167 mm
Pole connection: B1 terminal to accept M5 nut & bolt
Design Life: up to 5 years or 400 cycles @ 100% depth of discharge at 25℃ or 1800 cycles @ 30% depth of discharge at 25℃
Operating temperature: -15℃ ~ +40℃
Battery voltage (V): 12
Capacity (Ah): 17
Width (mm): 76
Height (mm): 167
Brand: CSB Battery
Model: EVX 12170
Rated voltage: 12 V
Capacity: 17 Ah (20hr)
Maximum discharge current: 230A (5sec)
Weight: 5,67 kg
Dimensions: 181 x 76,2 x 167 mm
Pole connection: B1 terminal to accept M5 nut & bolt
Design Life: up to 5 years or 400 cycles @ 100% depth of discharge at 25℃ or 1800 cycles @ 30% depth of discharge at 25℃
Operating temperature: -15℃ ~ +40℃
Battery voltage (V): 12
Capacity (Ah): 17
Width (mm): 76
Height (mm): 167
Brand: CSB Battery
