SKU:CSB-EVH12240
Image is for illustrative purposes only
Reliable Power Source

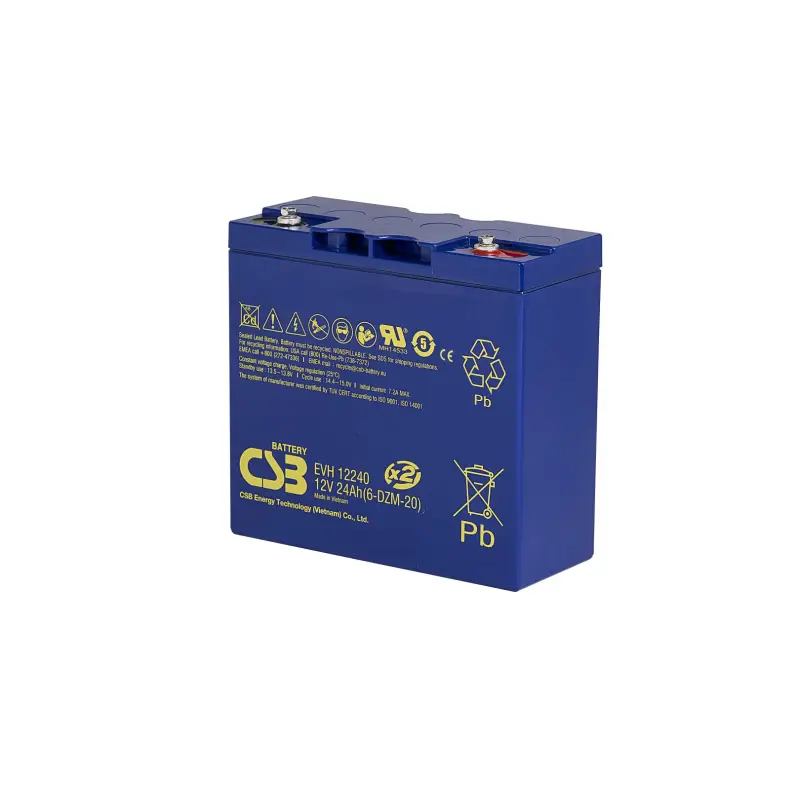

The CSB lead-acid battery EVH 12240 is a reliable and maintenance-free power source.
EVH Series Features
Cycle resistant, high current technology
Impact and breakage resistant plastic
High shock and vibration resistance
Maintenance-free operation
Valve-regulated plastic construction
Installation independent of position
No hazardous material according to IATA
Applications
Suitable for e-scooters, wheelchairs, campers, construction machinery, mobile measuring and testing equipment, vending machines, traffic engineering, marine, railroad, and military equipment.
The CSB lead-acid battery EVH 12240 is a reliable and maintenance-free power source.
EVH Series Features
Cycle resistant, high current technology
Impact and breakage resistant plastic
High shock and vibration resistance
Maintenance-free operation
Valve-regulated plastic construction
Installation independent of position
No hazardous material according to IATA
Applications
Suitable for e-scooters, wheelchairs, campers, construction machinery, mobile measuring and testing equipment, vending machines, traffic engineering, marine, railroad, and military equipment.
Manufacturer: CSB Battery
Model: EVH 12240
Rated voltage: 12 V
Capacity: 24 Ah (20hr)
Maximum discharge current: 320A (5sec)
Weight: 7,55 kg
Dimensions: 181 x 76,2 x 170 mm
Pole connection: I1 thread lead alloy terminal to accept M5 bolt
Design Life: up to 5 years or 350 cycles @ 100% DOD at 25℃ or 1800 cycles @ 30% DOD at 25℃
Operating temperature: -15℃ ~ +40℃
Quality standard: iso 9001
Battery voltage (V): 12
Capacity (Ah): 24
Width (mm): 76
Height (mm): 170
Brand: CSB Battery
Model: EVH 12240
Rated voltage: 12 V
Capacity: 24 Ah (20hr)
Maximum discharge current: 320A (5sec)
Weight: 7,55 kg
Dimensions: 181 x 76,2 x 170 mm
Pole connection: I1 thread lead alloy terminal to accept M5 bolt
Design Life: up to 5 years or 350 cycles @ 100% DOD at 25℃ or 1800 cycles @ 30% DOD at 25℃
Operating temperature: -15℃ ~ +40℃
Quality standard: iso 9001
Battery voltage (V): 12
Capacity (Ah): 24
Width (mm): 76
Height (mm): 170
Brand: CSB Battery
