SKU:UT-CS06A
Image is for illustrative purposes only

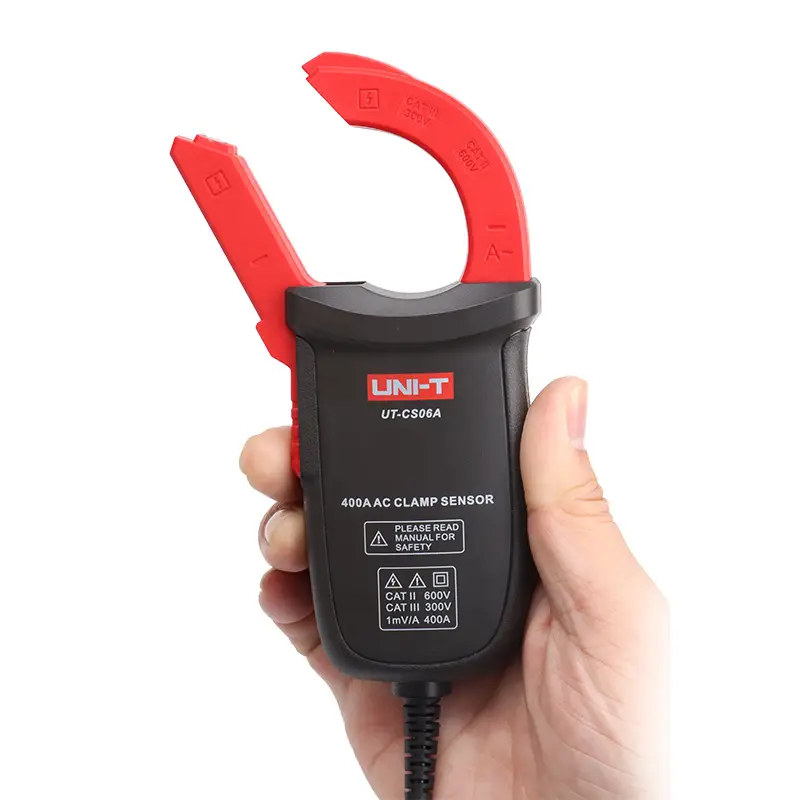

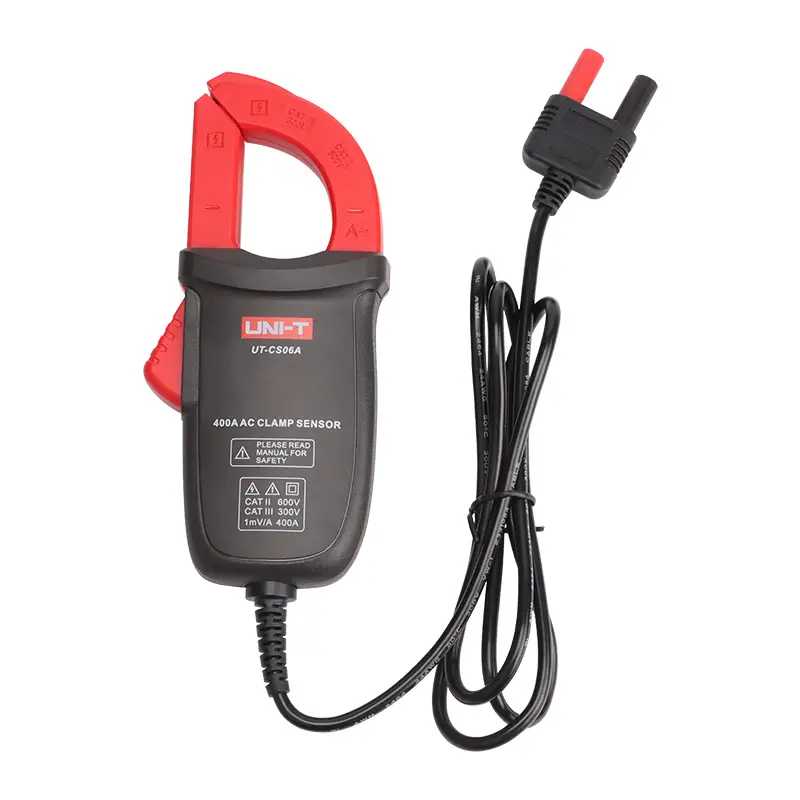

UT-CS06A 400A AC Current Clamp Sensor
This is an entry-level sensor for AC Current measurement with a multimeter or data logger.
It suits most UNI-T multimeters and features a compact, easy-to-use design.
● Compact design, easy to operation
● 400A AC current measurement

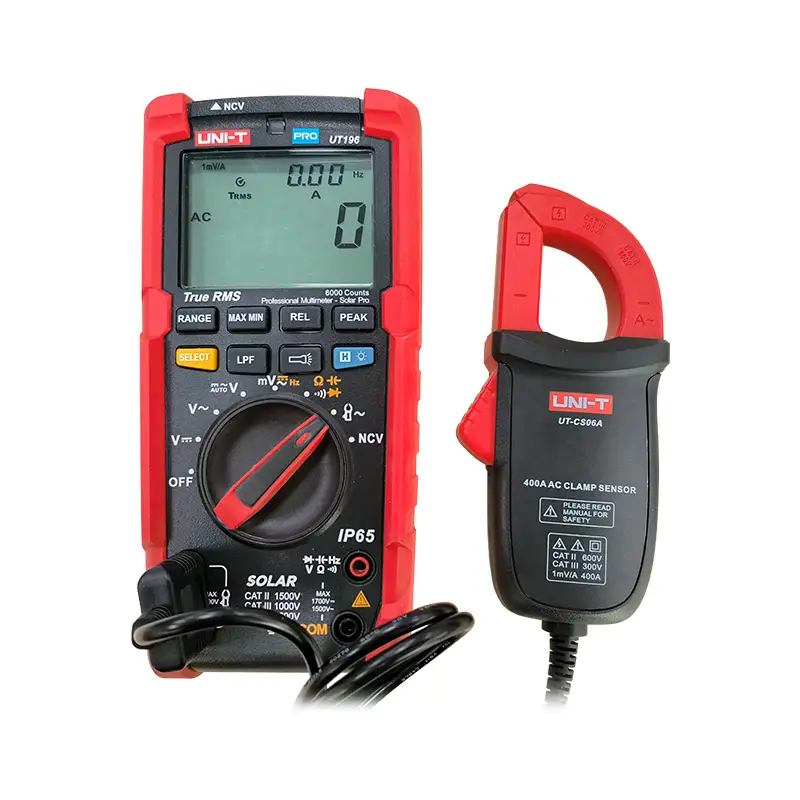

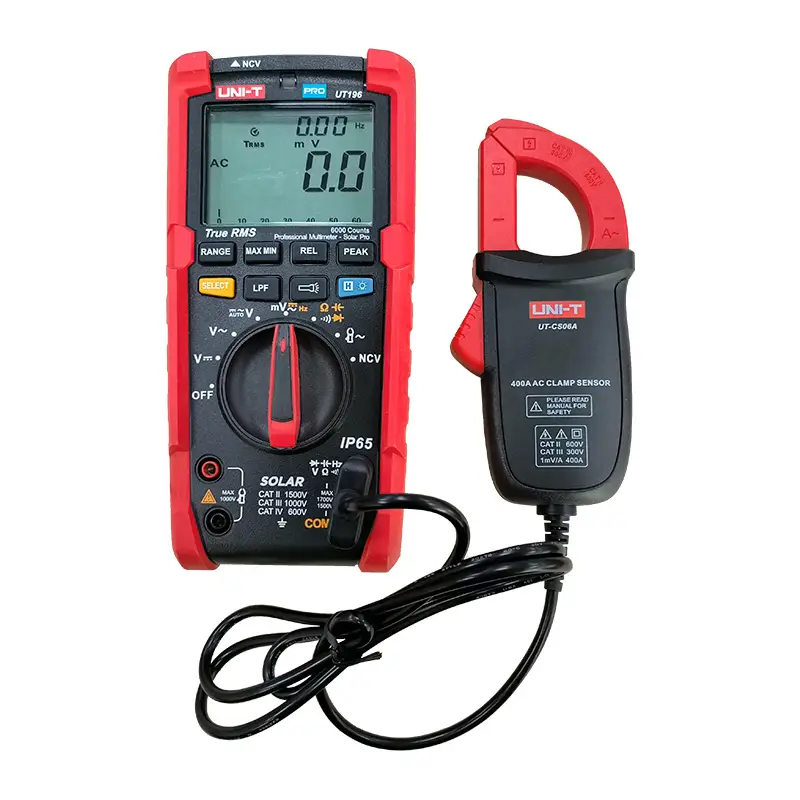

● Suitable for most UNI-T multimeters
● Drop protection: 1m
This is an entry-level sensor for AC Current measurement with a multimeter or data logger.
It suits most UNI-T multimeters and features a compact, easy-to-use design.
● Compact design, easy to operation
● 400A AC current measurement
● Suitable for most UNI-T multimeters
● Drop protection: 1m
Certificates: CE, UKCA
AC Current: 1-400A
Accuracy: ±2.5%±0.5A@50-60Hz, ±2.8%±0.5A@60-400Hz
Jaw opening: 28mm
Output ratio: 1mV/A
Frequency: 50 Hz~400 Hz
Wire length: 1.1m
Power supply: No need battery
Drop test: 1m
Overvoltage category: CAT III 300V, CAT II 600V
Depth (mm): 33
Width (mm): 65
Height (mm): 158
Brand: UNI-T
AC Current: 1-400A
Accuracy: ±2.5%±0.5A@50-60Hz, ±2.8%±0.5A@60-400Hz
Jaw opening: 28mm
Output ratio: 1mV/A
Frequency: 50 Hz~400 Hz
Wire length: 1.1m
Power supply: No need battery
Drop test: 1m
Overvoltage category: CAT III 300V, CAT II 600V
Depth (mm): 33
Width (mm): 65
Height (mm): 158
Brand: UNI-T
-
