SKU:PNI-E650VA
UPS power 390W, two 230V outputs. UPS with output in the form of a modified sine wave, and output voltage stabilization. It is used together with small and medium office electronic equipment. It is not recommended and is not used with pumps, motors, laser printers, inductive electronics, etc.
No worries about power outages The PNI SafePC E650VA UPS is an uninterruptible power source specially designed to protect small and medium consumers from disturbances in the power supply network and sudden interruptions in the power supply. The main protected consumers are: computers, laptops, monitors.
AVR function - output voltage stabilization Through the AVR function, the PNI SafePC E650VA UPS offers the advantage of stabilizing the output voltage , a function that provides a voltage that is as correct as possible and close to that required to power the electrical and electronic equipment in your home. The waveform on the mains mode is a pure sine wave , and on the battery mode it is a simulated sine wave. The switching time on battery is 8-10 ms.

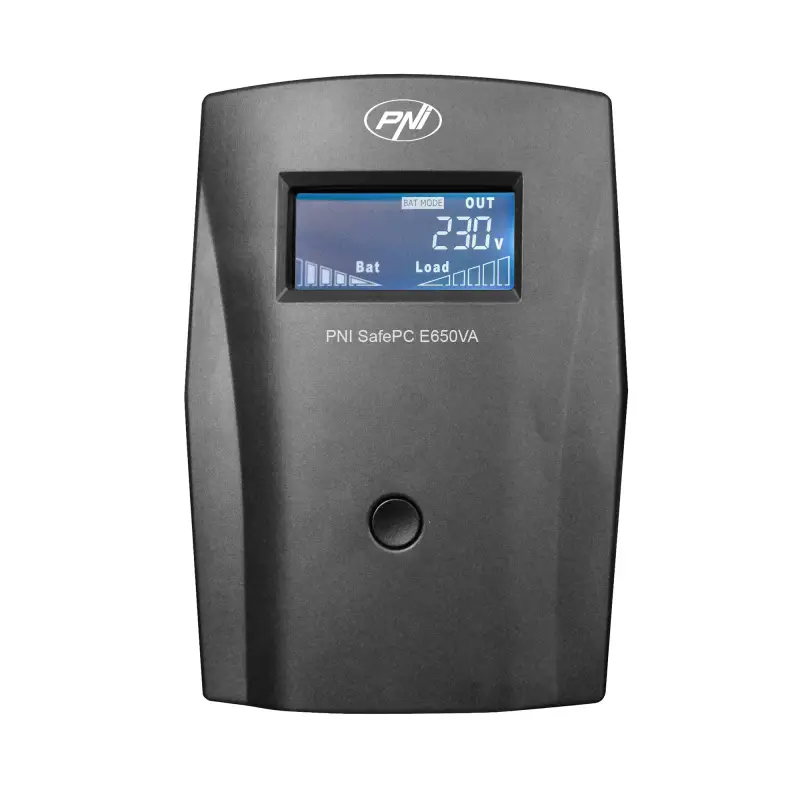

LCD screen and smart menu PNI SafePC E650VA warns you both audibly and visually in the event of a low battery level, in the event of switching to battery power or in the event of overload. The LCD screen will allow you to monitor the operating status of the device, view the battery level and warnings.
Small size and noise Thanks to its small size of only 295 x 135 x 90 mm and a weight of 4.6 kg, the PNI SafePC E650VA UPS can be positioned anywhere around the office without getting in the way. Also, the noise produced by the UPS is imperceptible.

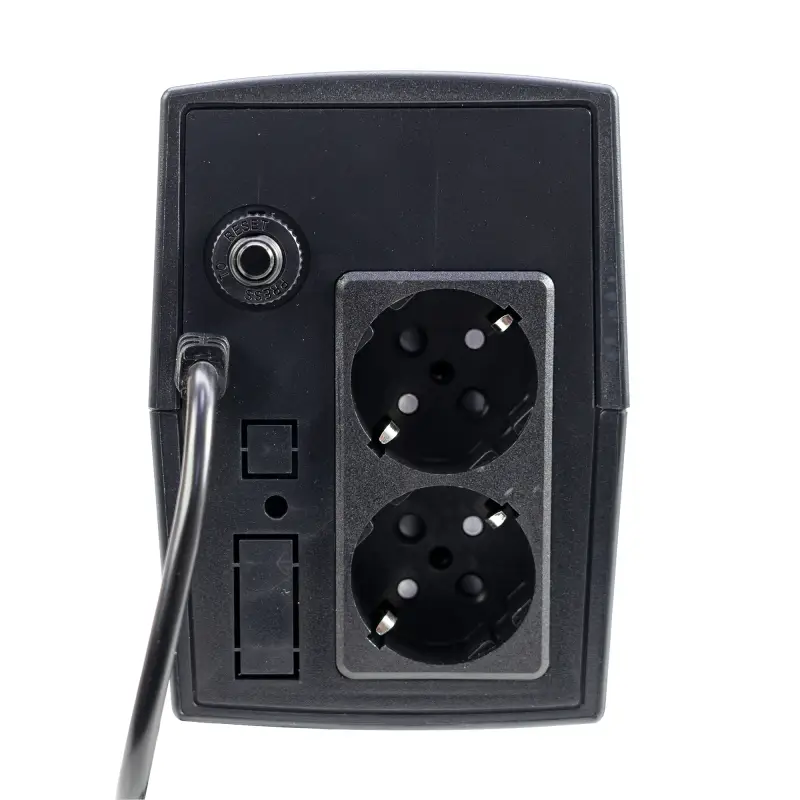

Available connections The PNI SafePC E650VA UPS has 2 schuko outputs for powering electronic devices at 230V. The maximum capacity is 650VA with a maximum nominal power of 390W.
No worries about power outages The PNI SafePC E650VA UPS is an uninterruptible power source specially designed to protect small and medium consumers from disturbances in the power supply network and sudden interruptions in the power supply. The main protected consumers are: computers, laptops, monitors.
AVR function - output voltage stabilization Through the AVR function, the PNI SafePC E650VA UPS offers the advantage of stabilizing the output voltage , a function that provides a voltage that is as correct as possible and close to that required to power the electrical and electronic equipment in your home. The waveform on the mains mode is a pure sine wave , and on the battery mode it is a simulated sine wave. The switching time on battery is 8-10 ms.
LCD screen and smart menu PNI SafePC E650VA warns you both audibly and visually in the event of a low battery level, in the event of switching to battery power or in the event of overload. The LCD screen will allow you to monitor the operating status of the device, view the battery level and warnings.
Small size and noise Thanks to its small size of only 295 x 135 x 90 mm and a weight of 4.6 kg, the PNI SafePC E650VA UPS can be positioned anywhere around the office without getting in the way. Also, the noise produced by the UPS is imperceptible.
Available connections The PNI SafePC E650VA UPS has 2 schuko outputs for powering electronic devices at 230V. The maximum capacity is 650VA with a maximum nominal power of 390W.
entry
tension: 162 ~ 295 VAC
Frequency: 50 / 60 Hz (auto-sensing)
output
tension: 230V ± 10%
Frequency: 50Hz/60Hz +/-1%
Wave type: Mains mode: Pure sine wave / Battery mode: Simulated sine wave
Transfer time: Typical: 8ms / 10ms (max)
Battery
Type: With lead acid
Capacity: 12V/7Ah
Backup time: ~ 8 minutes (half capacity usage)
Recharge time: ~ 8 hours
General features
Screen: LCD
Power: 390W / 650VA
Output voltage stabilization: Yes: 195VAC-245VAC
Protection: Overcharging / low battery / short circuit / overheating
Overload protection: Yes
Operating temperature: 0 ~ 40 °C
Moisture: 5 - 90% RH non-condensing
Alarm sound level: ≤ 45 dB
Dimensions / weight: 295 x 135 x 90 mm / 4.6 kg
Communication interface
PC monitoring software
Power cable length: 1.2m
Compatible battery/rechargeable battery voltage: 12V
Low/overcharged battery alert: Yes
Low/overcharged battery auto-disconnect: Yes
VAC output connectors: 2 x Schuko socket
tension: 162 ~ 295 VAC
Frequency: 50 / 60 Hz (auto-sensing)
output
tension: 230V ± 10%
Frequency: 50Hz/60Hz +/-1%
Wave type: Mains mode: Pure sine wave / Battery mode: Simulated sine wave
Transfer time: Typical: 8ms / 10ms (max)
Battery
Type: With lead acid
Capacity: 12V/7Ah
Backup time: ~ 8 minutes (half capacity usage)
Recharge time: ~ 8 hours
General features
Screen: LCD
Power: 390W / 650VA
Output voltage stabilization: Yes: 195VAC-245VAC
Protection: Overcharging / low battery / short circuit / overheating
Overload protection: Yes
Operating temperature: 0 ~ 40 °C
Moisture: 5 - 90% RH non-condensing
Alarm sound level: ≤ 45 dB
Dimensions / weight: 295 x 135 x 90 mm / 4.6 kg
Communication interface
PC monitoring software
Power cable length: 1.2m
Compatible battery/rechargeable battery voltage: 12V
Low/overcharged battery alert: Yes
Low/overcharged battery auto-disconnect: Yes
VAC output connectors: 2 x Schuko socket
