SKU:PNI-ST10A
Image is for illustrative purposes only

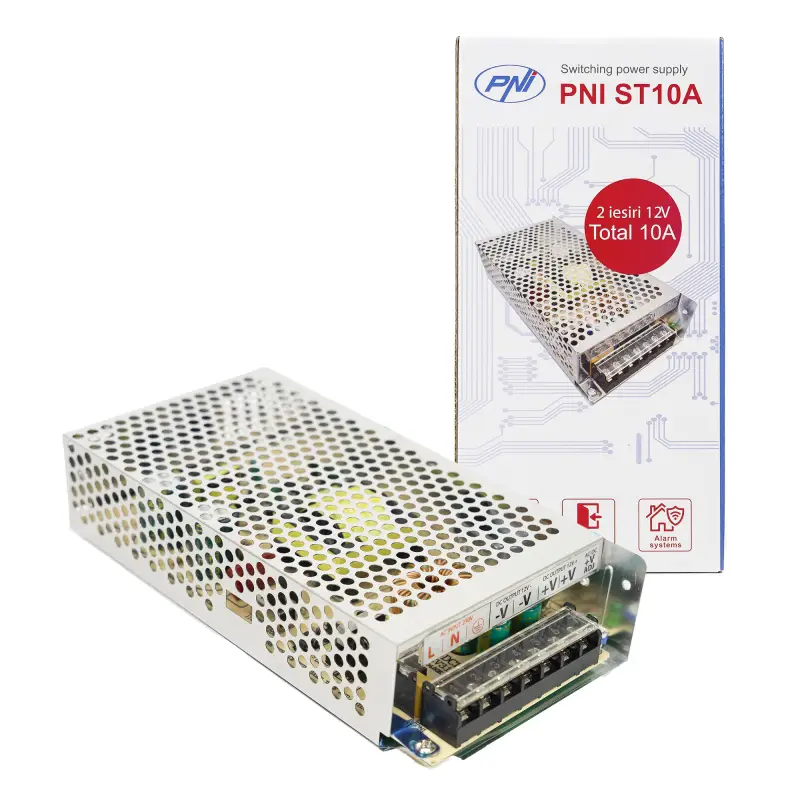

Switching voltage source.
Applications The PNI ST10A power supply can be used in access control systems, video surveillance systems or in any application with consumption less than 10A.
Entry The PNI ST10A voltage source is supplied to the normal electricity grid with a voltage of 230V.
Output PNI ST10A has an output of 12V and a maximum capacity of 10A.
Physical characteristics The base plate of the power supply is protected by a shock-resistant metal housing. Due to its small size, it can be easily mounted and hidden in a junction box. It has the dimensions: 160 x 98 x 40 mm.
Applications The PNI ST10A power supply can be used in access control systems, video surveillance systems or in any application with consumption less than 10A.
Entry The PNI ST10A voltage source is supplied to the normal electricity grid with a voltage of 230V.
Output PNI ST10A has an output of 12V and a maximum capacity of 10A.
Physical characteristics The base plate of the power supply is protected by a shock-resistant metal housing. Due to its small size, it can be easily mounted and hidden in a junction box. It has the dimensions: 160 x 98 x 40 mm.
Features
Input voltage: 230V AC
Input signal frequency: 50-60Hz
Output voltage: 2 x 12V
Output current: 10A (peak)
Output power: 120W
Overload protection: From 105% to 115%
Operating temperature: -26°C ~ +80°C
Dimensions (D x H x W) / Weight: 160 x 98 x 40mm / 336g
Efficiency: 73%
Short circuit protection: Yes
Cooling fan
Input voltage: 230V AC
Input signal frequency: 50-60Hz
Output voltage: 2 x 12V
Output current: 10A (peak)
Output power: 120W
Overload protection: From 105% to 115%
Operating temperature: -26°C ~ +80°C
Dimensions (D x H x W) / Weight: 160 x 98 x 40mm / 336g
Efficiency: 73%
Short circuit protection: Yes
Cooling fan
-
