SKU:ABX00083

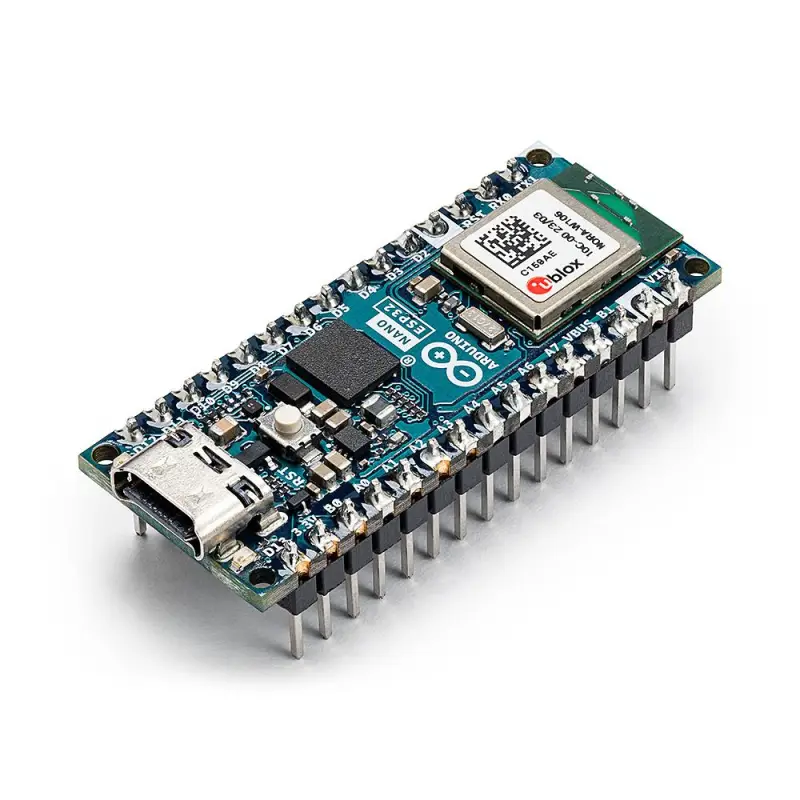

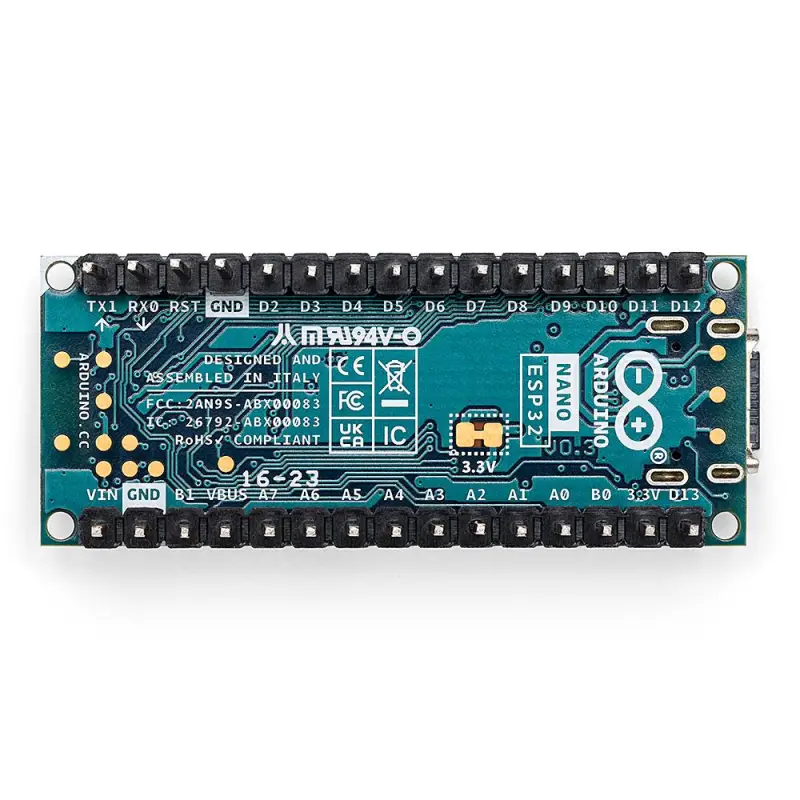

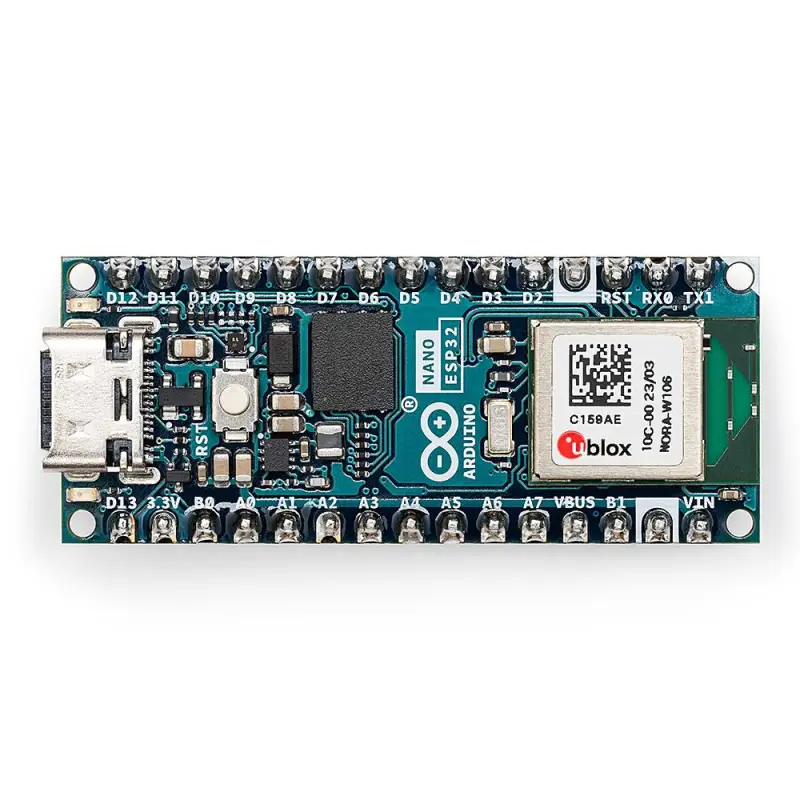

Image is for illustrative purposes only
Overview
Introducing the Nano ESP32, a powerful addition to the Arduino ecosystem that brings the popular ESP32-S3 to the world of Arduino and MicroPython programming. Whether you're a beginner stepping into the world of IoT or MicroPython, or an advanced user looking to incorporate it into your next product, the Nano ESP32 is the perfect choice. It covers all your needs to kick-start your IoT or MicroPython project with ease.
Key features of the Nano ESP32:
Tiny footprint: Designed with the well-known Nano form factor in mind, this board's compact size makes it perfect for embedding in standalone projects.
Wi-Fi® and Bluetooth®: Harness the power of the ESP32-S3 microcontroller, well-known in the IoT realm, with full Arduino support for wireless and Bluetooth® connectivity.
Arduino and MicroPython support: Seamlessly switch between Arduino and MicroPython programming with a few simple steps.
Arduino IoT Cloud compatible: Quickly and easily create IoT projects with just a few lines of code. Our setup takes care of security, allowing you to monitor and control your project from anywhere using the Arduino IoT Cloud app. (Available starting August 2023)
HID support: Emulate human interface devices, such as keyboards or mice, over USB, opening up new possibilities for interacting with your computer.
Introducing the Nano ESP32, a powerful addition to the Arduino ecosystem that brings the popular ESP32-S3 to the world of Arduino and MicroPython programming. Whether you're a beginner stepping into the world of IoT or MicroPython, or an advanced user looking to incorporate it into your next product, the Nano ESP32 is the perfect choice. It covers all your needs to kick-start your IoT or MicroPython project with ease.
Key features of the Nano ESP32:
Tiny footprint: Designed with the well-known Nano form factor in mind, this board's compact size makes it perfect for embedding in standalone projects.
Wi-Fi® and Bluetooth®: Harness the power of the ESP32-S3 microcontroller, well-known in the IoT realm, with full Arduino support for wireless and Bluetooth® connectivity.
Arduino and MicroPython support: Seamlessly switch between Arduino and MicroPython programming with a few simple steps.
Arduino IoT Cloud compatible: Quickly and easily create IoT projects with just a few lines of code. Our setup takes care of security, allowing you to monitor and control your project from anywhere using the Arduino IoT Cloud app. (Available starting August 2023)
HID support: Emulate human interface devices, such as keyboards or mice, over USB, opening up new possibilities for interacting with your computer.
Microcontroller: u-blox® NORA-W106 (ESP32-S3)
USB connector: USB-C®
Built-in LED Pin: 13
Built-in RGB LED pins: 14-16
Digital I/O Pins: 14
Analog input pins: 8
PWM pins: 5
External interrupts: All digital pins
Wi-Fi®: u-blox® NORA-W106 (ESP32-S3)
Bluetooth®: u-blox® NORA-W106 (ESP32-S3)
UART: 2x
I2C: 1x, A4 (SDA), A5 (SCL)
SPI: D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS)
I/O Voltage: 3.3 V
Input voltage (nominal): 6-21 V
Source Current per I/O Pin: 40 mA
Sink Current per I/O Pin: 28 mA
Processor Clock speed: up to 240 MHz
ROM: 384 kB
SRAM: 512 kB
External Flash: 128 Mbit (16 MB)
Width: 18 mm
Length: 45 mm
Brand: ARDUINO
USB connector: USB-C®
Built-in LED Pin: 13
Built-in RGB LED pins: 14-16
Digital I/O Pins: 14
Analog input pins: 8
PWM pins: 5
External interrupts: All digital pins
Wi-Fi®: u-blox® NORA-W106 (ESP32-S3)
Bluetooth®: u-blox® NORA-W106 (ESP32-S3)
UART: 2x
I2C: 1x, A4 (SDA), A5 (SCL)
SPI: D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS)
I/O Voltage: 3.3 V
Input voltage (nominal): 6-21 V
Source Current per I/O Pin: 40 mA
Sink Current per I/O Pin: 28 mA
Processor Clock speed: up to 240 MHz
ROM: 384 kB
SRAM: 512 kB
External Flash: 128 Mbit (16 MB)
Width: 18 mm
Length: 45 mm
Brand: ARDUINO
-
