SKU:ABX00080
Overview

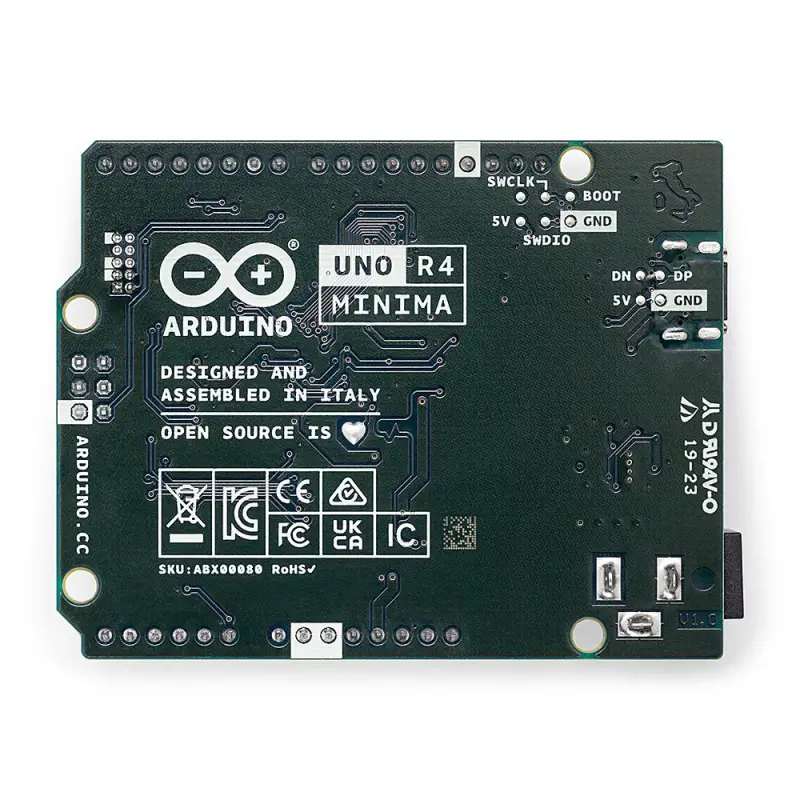

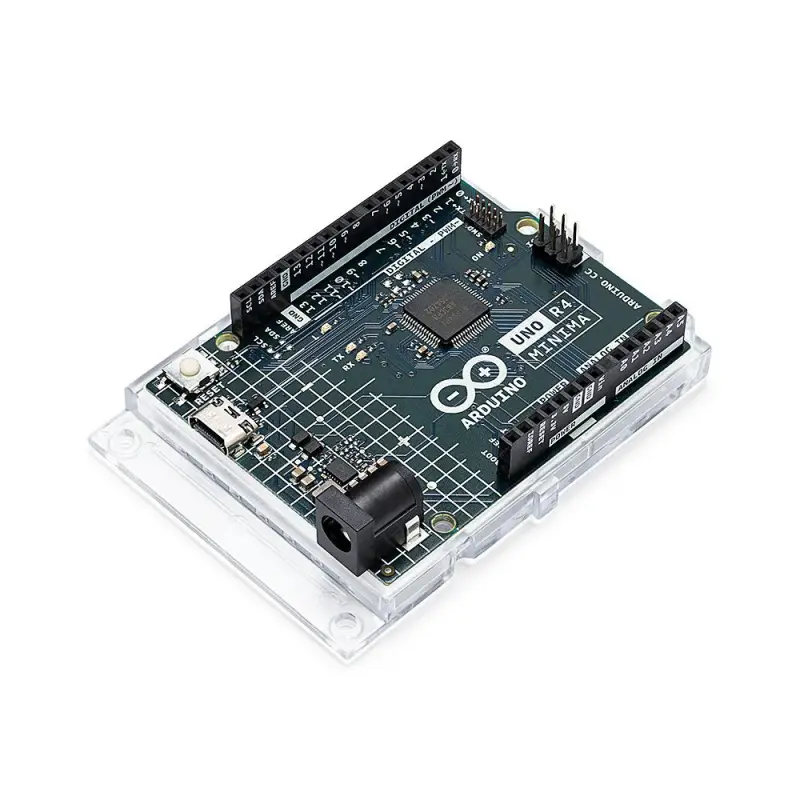

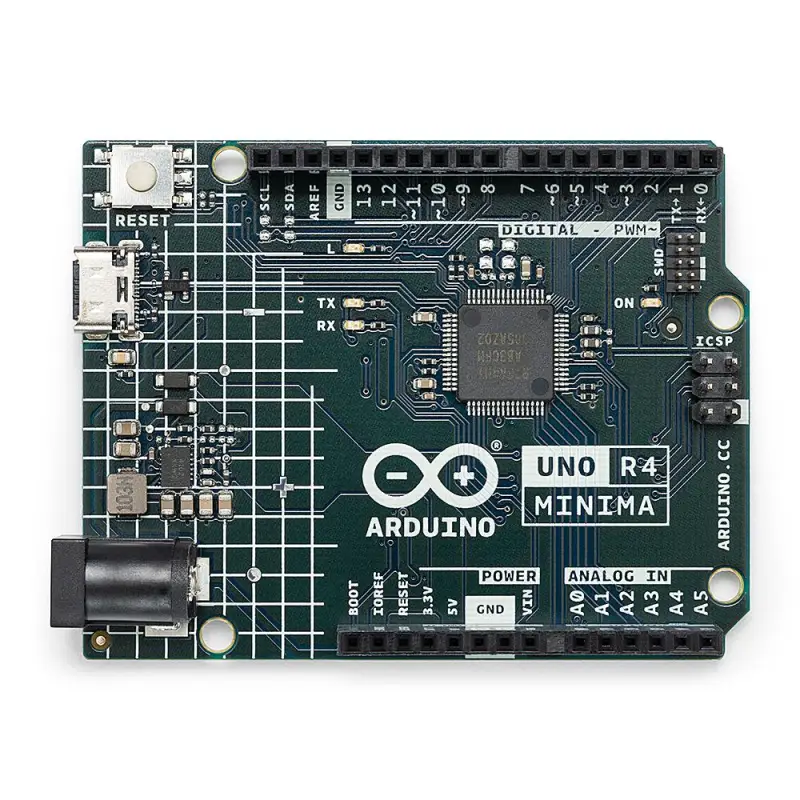

Enhanced and improved, the Arduino UNO R4 Minima is armed with a powerful 32-bit microcontroller courtesy of Renesas. Brace yourself for increased processing power, expanded memory, and a whole new level of on-board peripherals. Compatibility with existing shields and accessories remains intact, and there's no need to make any changes to the standard form factor or 5 V operating voltage.
Joining the Arduino ecosystem, the UNO R4 is a trusty addition suitable for both beginners and seasoned electronics enthusiasts.
Hardware compatibility with UNO form factor:
The UNO R4 Minima maintains the same form factor, pinout, and 5 V operating voltage as its predecessor, the UNO R3. This ensures a seamless transition for existing shields and projects.
Expanded memory and faster clock:
Prepare for more precise calculations and the ability to handle complex projects with ease. The UNO R4 Minima boasts increased memory and a faster clock speed.
Extra on-board peripherals:
The UNO R4 Minima introduces a range of on-board peripherals, including a 12-bit DAC, CAN BUS, and OP AMP.
Extended 24 V tolerance:
The UNO R4 Minima now supports a wider input voltage range, allowing power supplies up to 24 V.
SWD connector:
Debugging is a critical aspect of any project. Simply connect an external debugger to the UNO R4 Minima and effortlessly monitor the inner workings of your system.
HID support:
The UNO R4 Minima comes with built-in HID (Human Interface Device) support, enabling it to simulate a mouse or keyboard when connected to a computer via a USB cable.
Enhanced and improved, the Arduino UNO R4 Minima is armed with a powerful 32-bit microcontroller courtesy of Renesas. Brace yourself for increased processing power, expanded memory, and a whole new level of on-board peripherals. Compatibility with existing shields and accessories remains intact, and there's no need to make any changes to the standard form factor or 5 V operating voltage.
Joining the Arduino ecosystem, the UNO R4 is a trusty addition suitable for both beginners and seasoned electronics enthusiasts.
Hardware compatibility with UNO form factor:
The UNO R4 Minima maintains the same form factor, pinout, and 5 V operating voltage as its predecessor, the UNO R3. This ensures a seamless transition for existing shields and projects.
Expanded memory and faster clock:
Prepare for more precise calculations and the ability to handle complex projects with ease. The UNO R4 Minima boasts increased memory and a faster clock speed.
Extra on-board peripherals:
The UNO R4 Minima introduces a range of on-board peripherals, including a 12-bit DAC, CAN BUS, and OP AMP.
Extended 24 V tolerance:
The UNO R4 Minima now supports a wider input voltage range, allowing power supplies up to 24 V.
SWD connector:
Debugging is a critical aspect of any project. Simply connect an external debugger to the UNO R4 Minima and effortlessly monitor the inner workings of your system.
HID support:
The UNO R4 Minima comes with built-in HID (Human Interface Device) support, enabling it to simulate a mouse or keyboard when connected to a computer via a USB cable.
Brand: ARDUINO
Microcontroller: Renesas RA4M1 (Arm® Cortex®-M4)
USB: USB-C®
Programming Port: Pins
Digital I/O Pins: 14
Analog input pins: 6
DAC: 1
PWM pins: 6
Communication UART: Yes, 1x
Communication I2C: Yes, 1x
Communication SPI: Yes, 1x
Communication CAN: Yes 1 CAN Bus
Circuit operating voltage: 5 V
Input voltage (VIN): 6-24 V
DC Current per I/O Pin: 8 mA
Clock speed Main core: 48 MHz
Memory RA4M1: 256 kB Flash, 32 kB RAM
Dimensions Width: 68.85 mm
Dimensions Length: 53.34 mm
Microcontroller: Renesas RA4M1 (Arm® Cortex®-M4)
USB: USB-C®
Programming Port: Pins
Digital I/O Pins: 14
Analog input pins: 6
DAC: 1
PWM pins: 6
Communication UART: Yes, 1x
Communication I2C: Yes, 1x
Communication SPI: Yes, 1x
Communication CAN: Yes 1 CAN Bus
Circuit operating voltage: 5 V
Input voltage (VIN): 6-24 V
DC Current per I/O Pin: 8 mA
Clock speed Main core: 48 MHz
Memory RA4M1: 256 kB Flash, 32 kB RAM
Dimensions Width: 68.85 mm
Dimensions Length: 53.34 mm
