SKU:UT691-10
Image is for illustrative purposes only

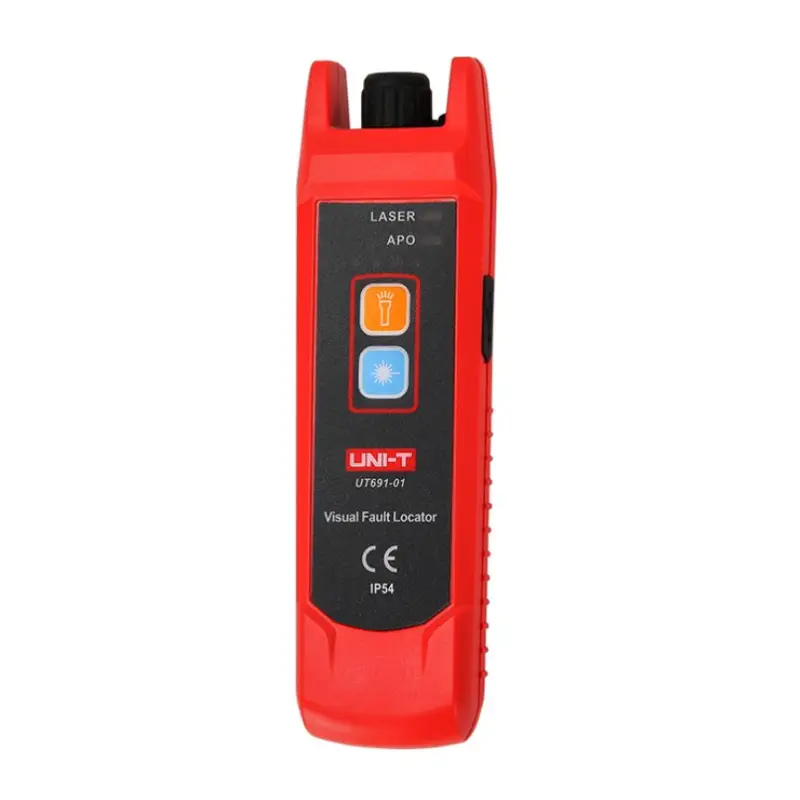

UT691 Series Visual Fault Locators
The UT691 series visual fault locator is designed for optical fiber fault detection and locating, end-to-end optical fiber identification, and more. It is IP54 rated and uses 650nm visible red light with 2 emitting modes. With the functions of APO, battery status indicator, and flashlight, it can be widely used in the fields of optical cable construction and maintenance, optical fiber communication or sensing, and optical CATV.
Non-slip humanized design
Equipped with LED flashlight
Battery level indicator
Laser indicator
Automatic shut-down
The UT691 series visual fault locator is designed for optical fiber fault detection and locating, end-to-end optical fiber identification, and more. It is IP54 rated and uses 650nm visible red light with 2 emitting modes. With the functions of APO, battery status indicator, and flashlight, it can be widely used in the fields of optical cable construction and maintenance, optical fiber communication or sensing, and optical CATV.
Non-slip humanized design
Equipped with LED flashlight
Battery level indicator
Laser indicator
Automatic shut-down
Laser output power: ≥1mW
Optical fiber length range: 2~3km
Wavelength of red light: 650±10nm
Optical fiber adapter: 2.5mm FC general connector
Battery type: 3.7V 1050mAh polymer lithium battery
Battery life: ＞12h
Battery status display: The battery status will be shown by 4 blue LED
Laser mode: Continuous mode/Pulse mode
Charge voltage and current: DC 5V, < 1A
APO: 15min auto power off (manual adjustable)
Key press test: ＞5000 times
Drop test: 1m
Power: 1050mAh rechargeable battery
Product color: Red and grey
Product net weight: 62g
Product size: 130mm x 38mm x 27mm
Certifications: CE, UKCA
Protection level: IP54
Brand: UNI-T
Purpose: Optical testing
Width (mm): 65
Height (mm): 135
Network: Optical
Optical fiber length range: 2~3km
Wavelength of red light: 650±10nm
Optical fiber adapter: 2.5mm FC general connector
Battery type: 3.7V 1050mAh polymer lithium battery
Battery life: ＞12h
Battery status display: The battery status will be shown by 4 blue LED
Laser mode: Continuous mode/Pulse mode
Charge voltage and current: DC 5V, < 1A
APO: 15min auto power off (manual adjustable)
Key press test: ＞5000 times
Drop test: 1m
Power: 1050mAh rechargeable battery
Product color: Red and grey
Product net weight: 62g
Product size: 130mm x 38mm x 27mm
Certifications: CE, UKCA
Protection level: IP54
Brand: UNI-T
Purpose: Optical testing
Width (mm): 65
Height (mm): 135
Network: Optical
-
