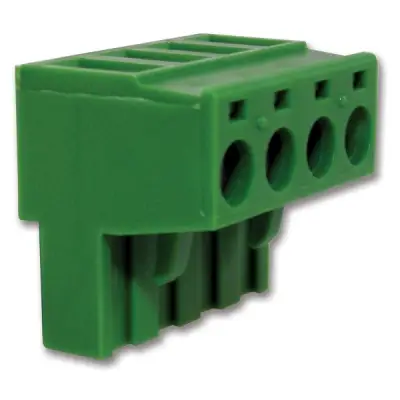

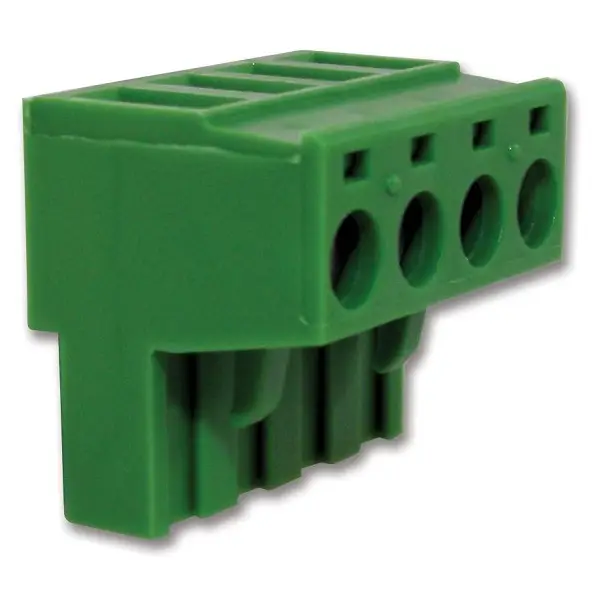

Plug, free, 4way, 5.08mm,CTB9208/4

  • Tootekood: 1717012

The CTB9208/4 is a 4-pole 320V/12A female pluggable professional rising clamp Terminal Block with UL94-V0 flame retardant PA green polarised moulding, tinned brass pin/terminal, nickel copper flash brass rising clamp, M3 steel zinc plated captive screw, 5.08mm pitch. It features anti solder wicking and guided pin alignment. It accepts 0.2 to 2.5mm² (30 to 12AWG) solid and stranded cable.

    >=2.5kV Dielectric strength

    4kV Impulse withstand voltage

    0.5Nm Torque

    1.4mm Recommended PCB hole size
