Kapillaartermostaat 540030 556343 556501 - thermostat, 0/40°c

  • Tootekood: 1846343

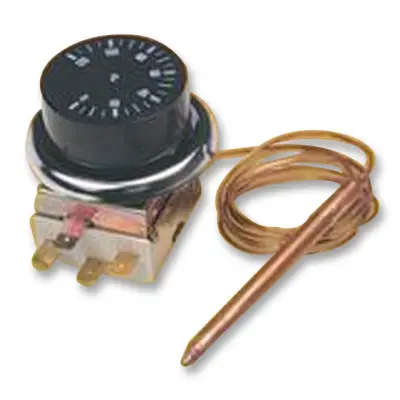

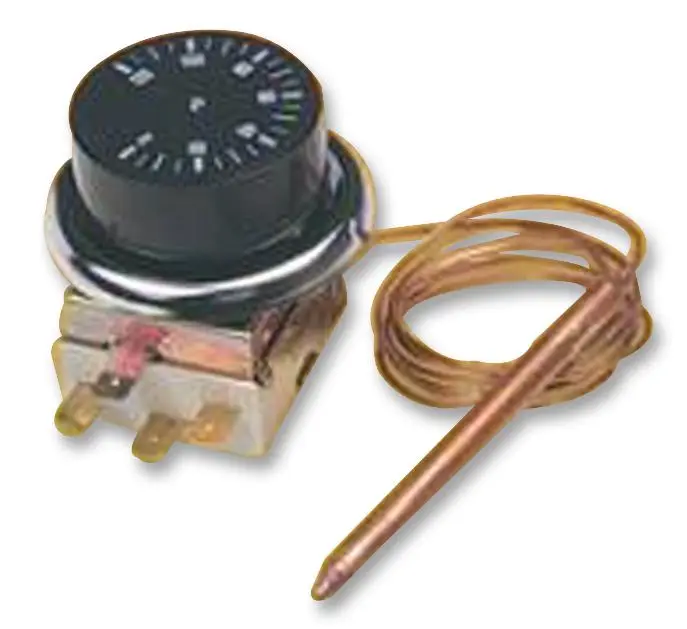

The 540030/556343/556501 is an Adjustable Control Thermostat with remote liquid-filled sensing bulb. Capillary thermostat operates from a remote liquid-filled sensing bulb through a 1m length of capillary tube. Changeover (SPDT) contacts enable use for both heating and cooling applications. Terminals opposite to operating knob.

15A (2.5A)/250V Contact rating
4 - 6.3 x 0.8mm Faston terminals
330°C Maximum bulb temperature
85°C Maximum body temperature
