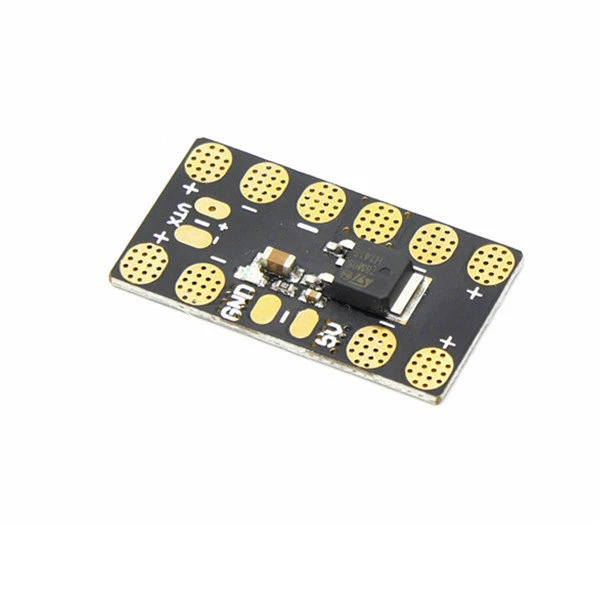

Jaotusplaat DALRC 5V BEC LED FPV
Tootekood:300141-DISB
Pilt on illustratiivne
It's a very small volume and weight with LED work lights,
with the channel 5V BEC can supply to the flight control, flow capacity of 50A.
Brand: DALRC
Item Name: Power Distribution Board
Operating voltage: 2~4S LiPo
PCB Process: Immersion Gold
Linear Output Voltage: 5V, voltage regulation accuracy 2.5%
Linear Output Current: 500mA (4S IN), 800mA (3S IN), 1000mA (2S IN)
Size: 35 * 20mm
Weight: 2.6g
