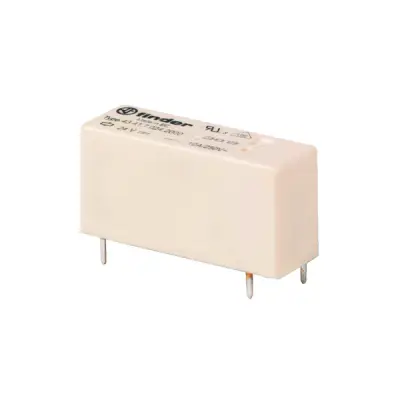

Relee 12VDC 0.25W 20.7mA 580R SPDT 10A 3.5mm

  • Tootekood: 43.41.7.012.0000

 Püsikliendi hind

20+ 2.84€
5+ 3.35€
1+ 4.18€

Tavahind

4.40€

Pealadu, Peterburi tee 90F, Tallinn 305
Peterburi tee Oomipood, Peterburi tee 90F, Tallinn 9
Järve keskuse Oomipood, Pärnu mnt. 238, Tallinn 7
Relee 12VDC 0.25W 20.7mA 580R SPDT 10A 3.5mm

Contacts: 1 Change-Over (CO)

Ucoil: 12 VDC

Relay type: Monostable

Switching current: 0.12 A@ 220 VDC1

    0.3 A@ 110 VDC1

    10 A@ 250 VAC1

    10 A@ 30 VDC

Contact material: AgNi

Switching capacity: 2500 VAAC1 / 500 VA AC15

    300 mW(5 mA @ 5 V) min.

Series: 43 Series

Rcoil: 580 Ohm

Pcoil: 250 mW

Pitch: 3.2 mm

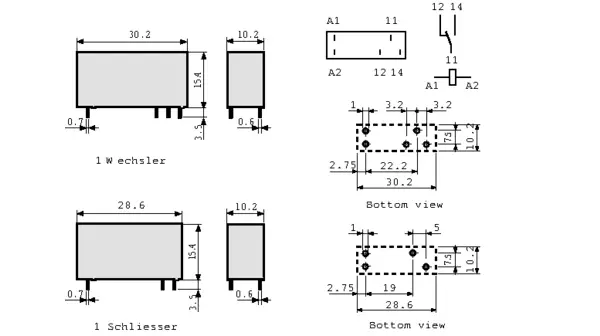

Dimensions L x W x H: 30.2 x 10.2 x 15.4 mm

Switching voltage: 250 VAC

Test voltage: 3.6 kV

Protection rating: IP54

Temperature range: -40 ... +85 °C

43.41 Series datasheet753.75KBLink
