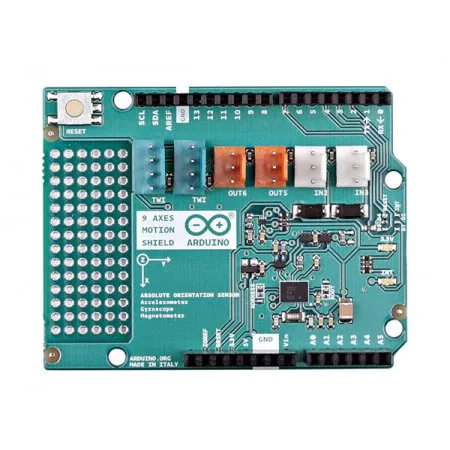

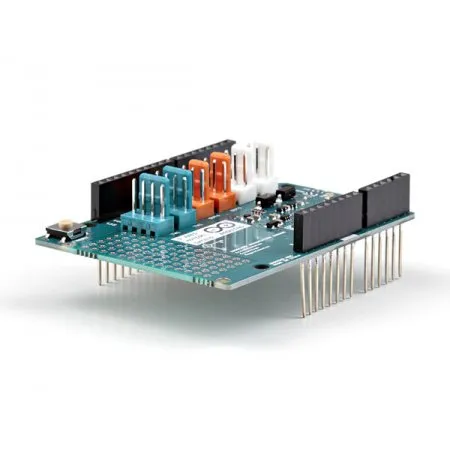

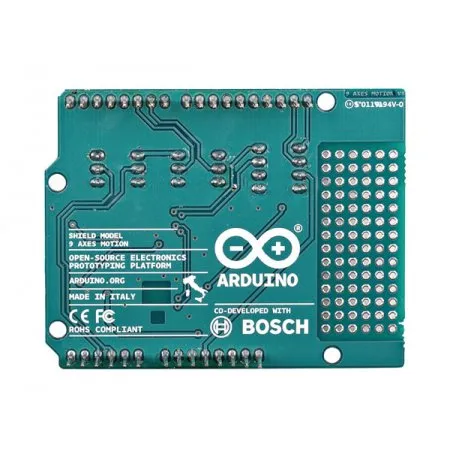

Arduino 9 axis motion shield

  • Tootekood: A000070

The Arduino 9 Axes Motion Shield is based on the BNO055 absolute orientation sensor (datasheet) from Bosch Sensortec GmbH.

The BNO055 is a System in Package (SiP), integrating a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of ±2000 degrees per second, a triaxial geomagnetic sensor and a 32-bit microcontroller running the BSX3.0 FusionLib software.  The sensor features three-dimensional acceleration, yaw rate and magnetic field strength data each in 3 perpendicular axes.    It also provides the sensor fusion signals such as  Quaternion Euler angles Rotation vector Linear acceleration Gravity vector In addition, it incorporates an intelligent interrupt engine, which allows for triggering interrupts based on slow or no motion recognition any motion (slope) detection  high-g-detection. The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board.
Sensor:Bosch BNO055
Chip software:BSX3.0 FusionLib
Operating Voltage:5V
Power Consumption:50mW
datasheet0BLink
