Arduino YUN Mini
- 80.00 €
- 41.22 € -48%

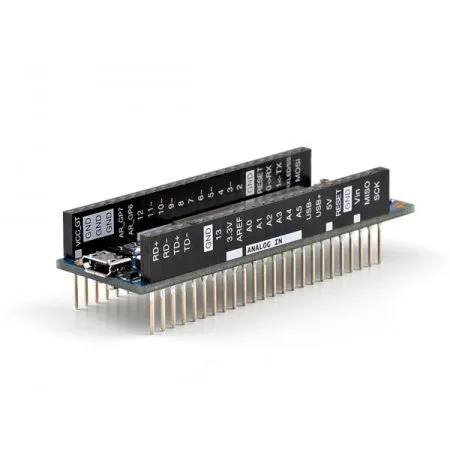

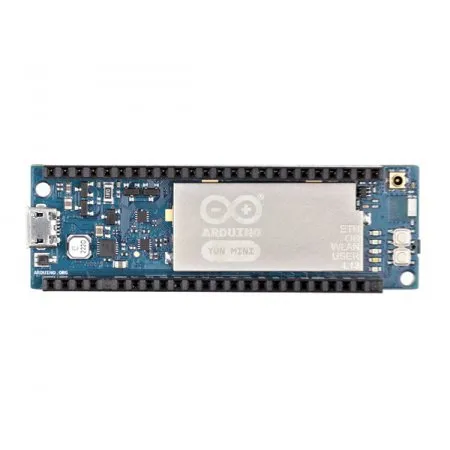

Arduino Yun Mini is a breadboard PCB developed with ATmega 32u4 MCU and QCA MIPS 24K SoC CPU operating up to 400 MHz. Qualcomm Atheros CPU supports a Linux distribution based on OpenWRT named Linino. The board has built- in WiFi ( IEEE 802.11b/g/n operations up to 150Mbps 1x1 2.4 GHz ) supports 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connector, an ICSP header, two reset buttons and one user button.
The Arduino Yún Mini is similar to the Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Arduino Yún Mini to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

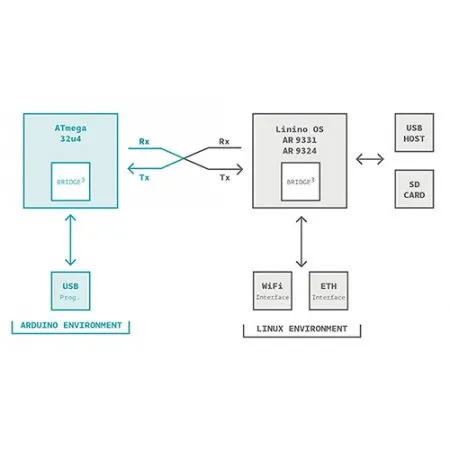

The Bridge library facilitates communication between the two processors, giving Arduino sketches the ability to run shell scripts, communicate with network interfaces, and receive information from the AR9331 processor. The USB host, network interfaces and SD card are not connected to the 32U4, but the AR9331, and the Bridge library also enables the Arduino to interface with those peripherals.
|Digital I/O Pins:||20|
|Analog input channels:||12|
|DC Current per I/O Pin:||40 mA|
|DC Current for 3.3V Pin:||50 mA|
|Flash Memory:||32 KB|
|Clock Speed:||16 MHz|
|Processor:||Atheros AR9331, MIPS 24K processor operating at up to 400 MHZ|
|RAM:||64 MB DDR2|
|Flash Memory:||16 MB|
|Operating Voltage:||3.3 V typ.380mA (113~570 mA)|
|Input Voltage:||4.75~5.25 V/1A|
|Temperature:||Operating: 0º~60º C|
