PCB terminal block; angled 45°; 5mm; ways: 2; on PCBs; 2.5mm2; 15A
Tootekood:DG330-5.0-2P12

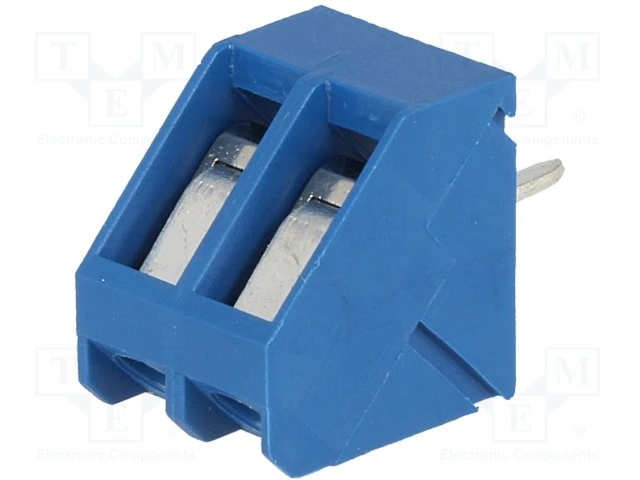

Pilt on illustratiivne
PCB terminal block; angled 45°; 5mm; ways: 2; on PCBs; 2.5mm2; 15A
| Wire cross section | 2.5mm2 |
| Wire size | 22AWG...12AWG |
| Conform to the norm | VDE |
| Conform to the norm | UL |
| Conform to the norm | CE |
| Type of pin configuration | 1x2 |
| Flammability rating | UL94V-0 |
| Depth | 12.5mm |
| Operating temperature | -40...105°C |
| Contact material | brass |
| Length | 10mm |
| Connectors features | assembling possibility |
| Body material | PA66 |
| Rated voltage | 300V |
| Colour | blue |
| Height | 12.5mm |
| Current rating | 15A |
| Contact plating | tinned |
| Connector | terminal |
| Electrical mounting | THT |
| Electrical mounting | screw terminal |
| Electrical mounting | cage clamp |
| Mechanical mounting | on PCBs |
| Number of ways | 2 |
| Contacts pitch | 5mm |
| Spatial orientation | angled 45° |
| Type of connector | PCB terminal block |
| Manufacturer | DEGSON ELECTRONICS |
