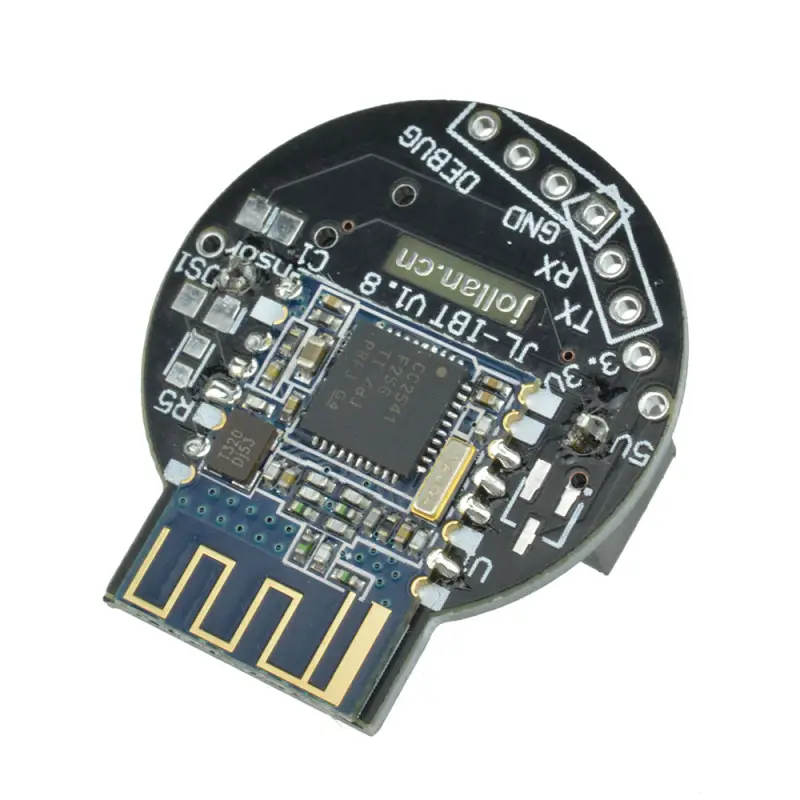

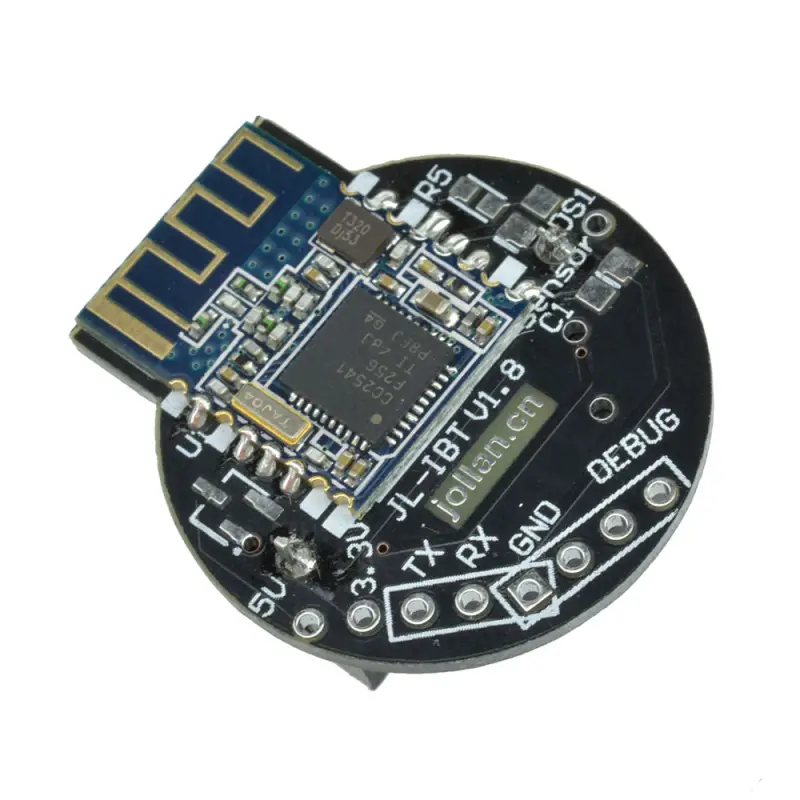

iBeacon moodule BLE 4.0

  • Tootekood: IBEACON-MOD

iBeacon moodule BLE 4.0

- This module is for apple iOS 7.0+ or android 4.3+,bluetooth 4.0+
- BT Version: Bluetooth Specification V4.0 BLE
- Send and receive no bytes limit.
- Working frequency: 2.4GHz ISM band
- Modulation method: GFSK(Gaussian Frequency Shift Keying)
- RF Power: -23dbm, -6dbm, 0dbm, 6dbm, can modify through AT
- Command AT+POWE.
- Speed: Asynchronous: 6K Bytes
- Synchronous: 6K Bytes
- Security: Authentication and encryption
- Service: Central & Peripheral UUID FFE0,FFE1
- Power: +3.3VDC 50mA
- Long range: Open space have 100 Meters with iphone4s
- Power: In sleep mode 400uA~1.5mA, Active mode 8.5mA.
- Working temperature:–5 ~ +65C
- Size: 24.8mm x 24.8mm,  thickness 7.5mm

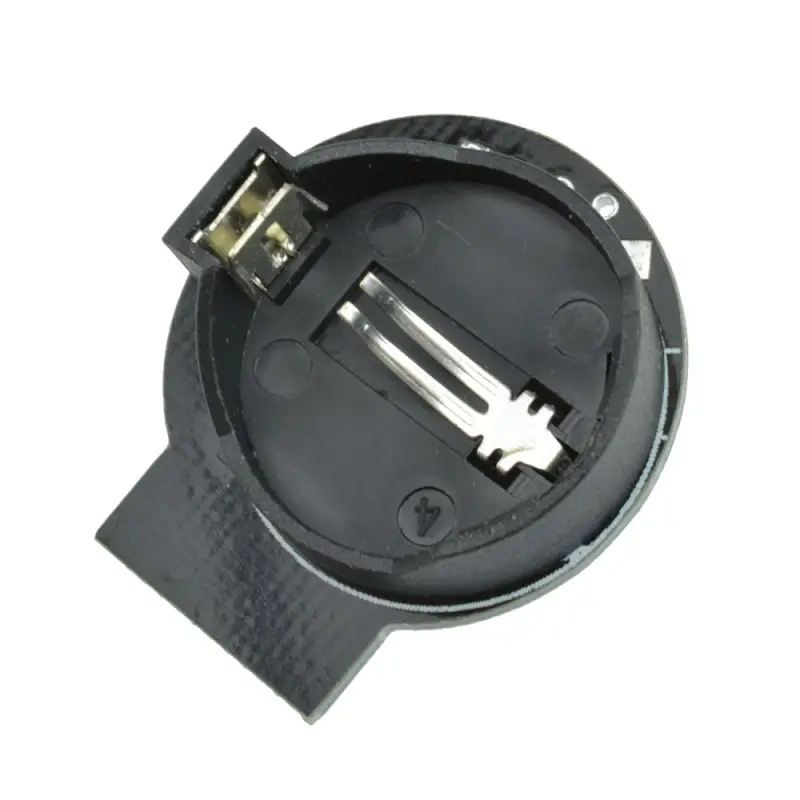

- Battery type: CR2032  (the battery not included)
- You can customize your own iBeacon configuration including UUID etc

iBeacons commands ENG207.97KBLink
