Pilt on illustratiivne

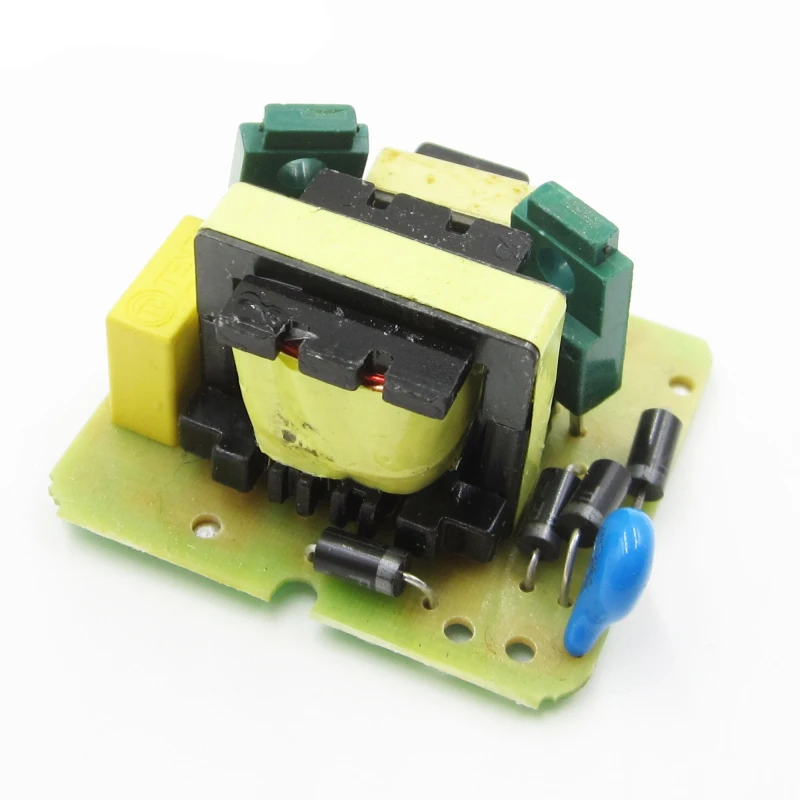

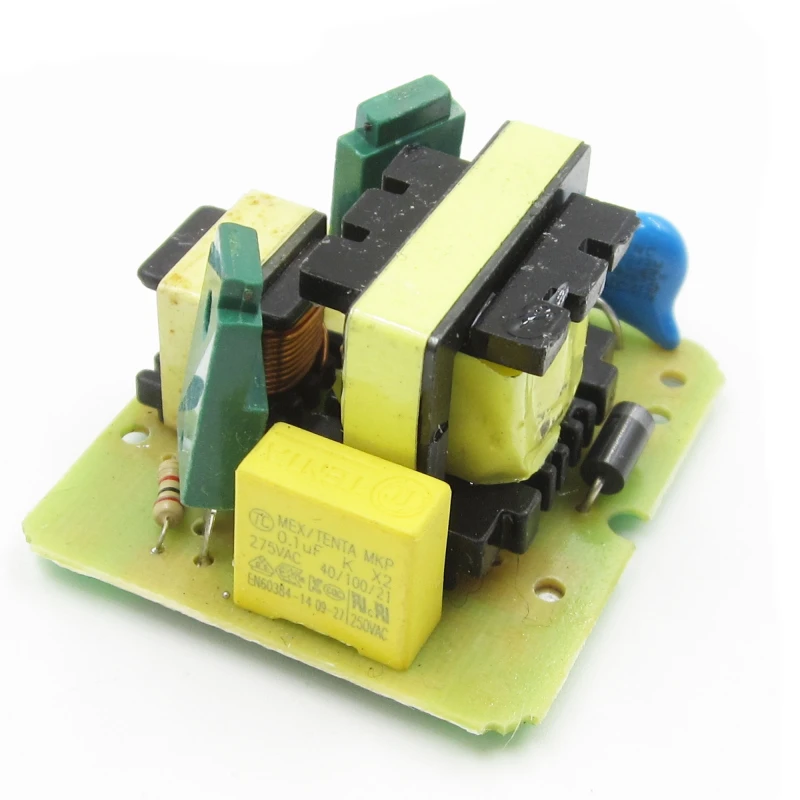

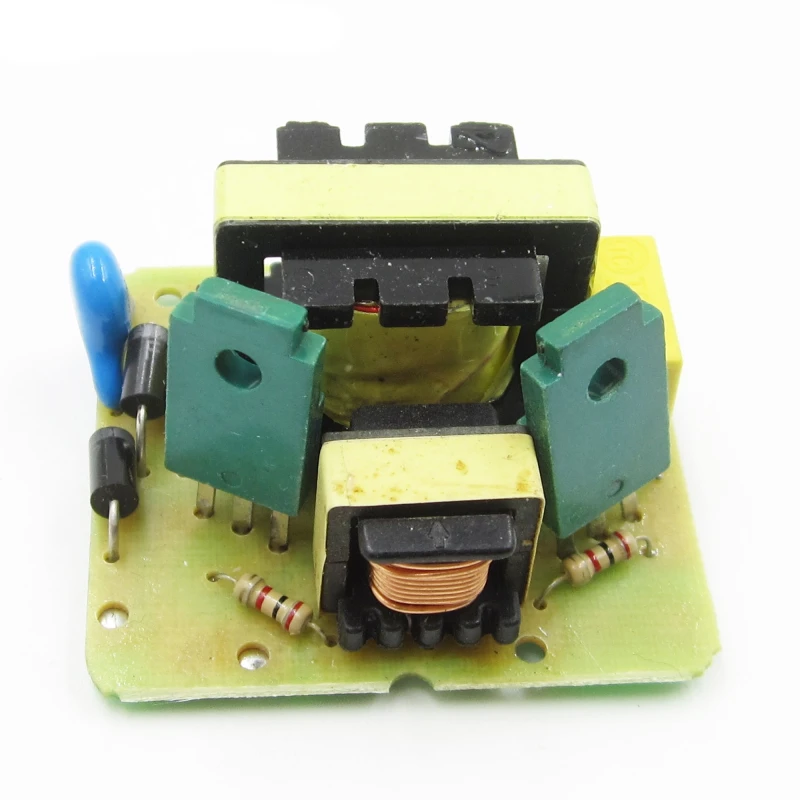

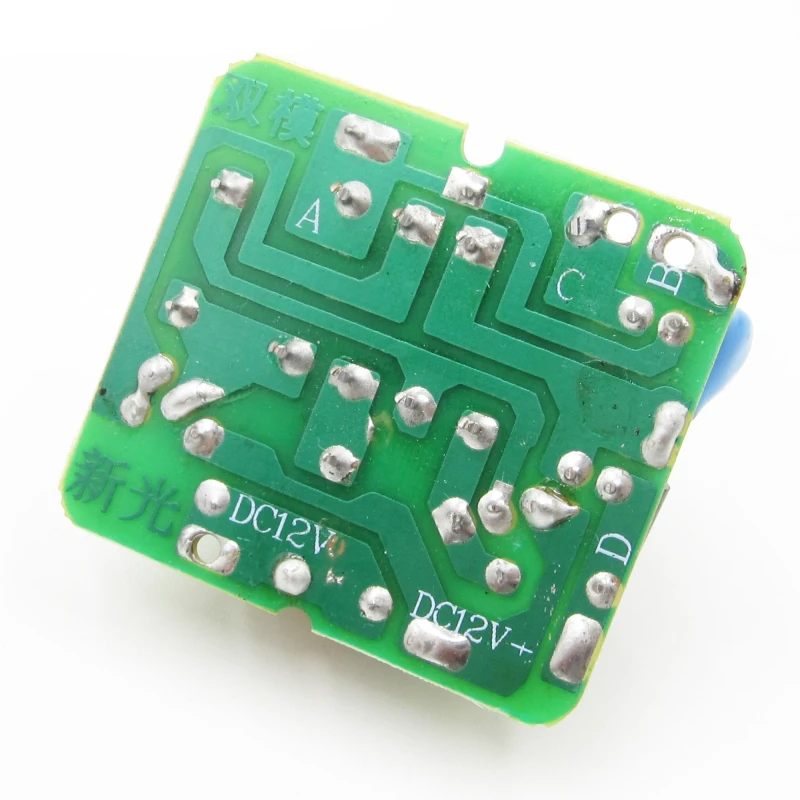

Toitemoodul DC/AC 12V-230V

  • Tootekood: INV-35W

 Püsikliendi hind

3+ 8.66€
1+ 11.31€

Tavahind

11.90€

Pealadu7
Peterburi tee Oomipood1
Järve keskuse Oomipood2
Lõunakeskuse Oomipood1

Väljundpinge sõltub koormuse tüübist (aktiivne või reaktiivne).
Ettevaatust, tegemist on 230V mooduliga!

Power: 35W max
Input DC: 12V
Output AC: 230V
Protection: none


Warnings:
1. The board belongs to high frequency square AC output; it is not suitable for the inductive appliance, such as motor, fan and coil transformer.
2. While picked up with low-load machines (LED light, mobile phone charger and DVD set-top box), you are suggested to pick up with low voltage point, such as: 172V/110V.
3. You should install a large heat sink to release its long time high-load work.
4. You could not connect the power inversely. Besides, power supply and power wire should have large enough current.
5. Do not overload and short-circuit because it without any protections.
6. The number in measured by the output high frequency non-load voltage meter will be a little higher.
