Pilt on illustratiivne

Mega R3 ATmega2560 ja WiFi ESP8266 arendusplaat

  • Tootekood: MEGA-WIFI-ESP
  • 39.00€

Full integration on one board: Mega R3 ATmega2560 and WiFi ESP8266 with memory 8Mb. All of the modules can work together or each separately. And everyone has their own pinout headers.
The convenient solution for the development of new projects requiring Uno and WiFi.
Via USB you can update sketches and firmvare for ATmega2560 and for ESP8266. For this on board have the USB-serial converter CH340G.
Use this board is very simple.

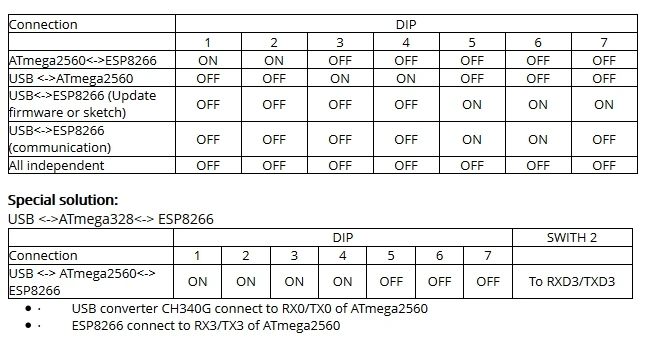

The board has DIP-switch, to connect the modules.
For example, to: USB and ATmeg2560, USB and ESP8266, ATmega2560 and ESP8266.

Microcontroller IC: ATmega2560
USB-Serial IC: CH340G
Operating Voltage: 5V/3.3V
Input Voltage: 7-12V (peak 20V)
Digital I/O: 54 (15 PWM)
Analog Input: 16
Clock Speed: 16Mhz
WiFi: ESP8266EX
