Lennu kontroller SP Racing F3 NAZE32 Acro 6DOF

  • Tootekood: NAZE32-ACRO
Pealadu2
Peterburi tee Oomipood1
Järve keskuse Oomipood1

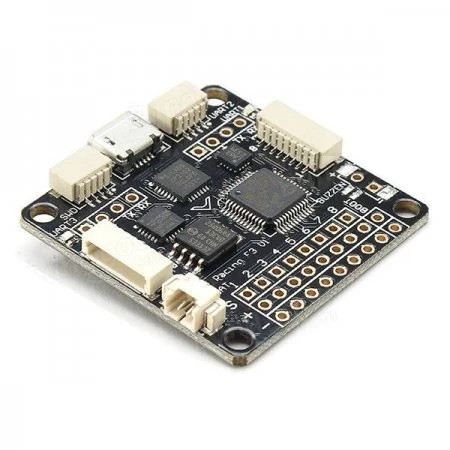

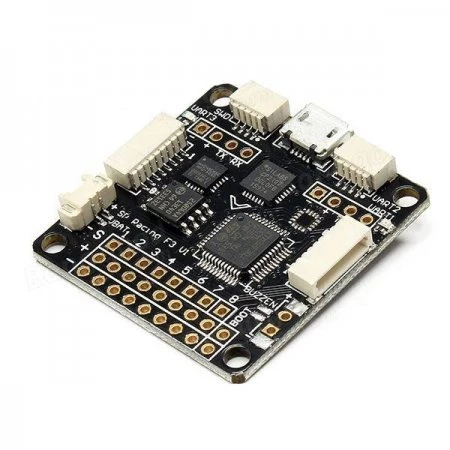

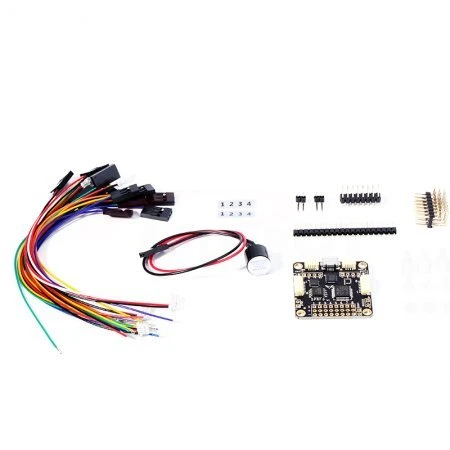

Lennu kontroller SP Racing F3 NAZE32 Acro 6DOF
STM32F3 CPU.
High-capacity Flash
MPU6050 Accelerometers and Gyroscopes
MS5611 Barometer
HMC5883 for compass
MicroUSB socket
4 x 4 pin JST-SH Socket (I2C, SWD, 2xuart)
2 x 8 pin JST-SH Socket (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
8 x 3 pin though-holes for pin headers for ESC / Servo connections
2 x 4 pin though-holes for the 2x serial ports .
2 x 2 pin though-holes for battery voltage and buzzer
36x36mm board, 30.5 mm mounting holes
