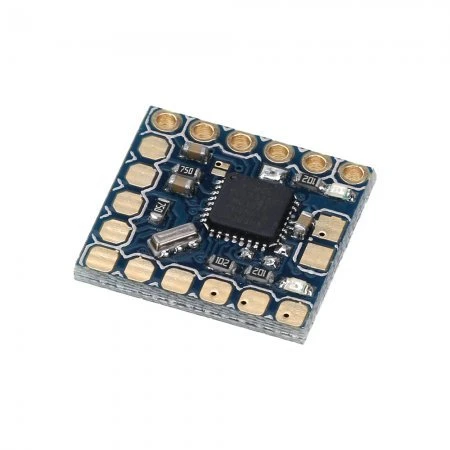

Pilt on illustratiivne

Micro OSD moodul andmete kuvamiseks videosse

  • Tootekood: OSD-MICR-APM

 Püsikliendi hind

3+ 21.92€
1+ 26.60€



Peterburi tee Oomipood1
Järve keskuse Oomipood1
The Micro MinimOSD is the next evolution of minimization. The Minimosd was engineered to bring users a very powerfull OSD at a unreal cost. After all the community mods, we re-engineered the OSD so every useable pin was easy available.(no more surface soldering) From the manfactures of the WitesSpy KV Team OSD and all your requests have now envoled into the Micro MinimOSD! With all the features of the very popuar WiteSpy KV Team modded OSD but in a 15x15MM size. The only differenece is that It does NOT have the Dc/Dc converter. this means less heat when powered off a Flight controller. The Micro MinimOSD is the same as the older MinimOSD hardware, but has been modified to take advantage of custom firmware options. You can choose firmware that is MAVLink compatible for ArduCopter, or MultiWii Serial compatible for MultiWii and Baseflight/Cleanflight control boards. You can connect two batteries up to 4S so you can see the main flight battery voltage. the second port will allow your FPV battery voltage on the display as well. we also did not forget about the pin for analog or digital PWM RSSI and a connection where you can attach a current sensor.
NO Dc/Dc convert . power board via 5 volts
FTDI cable compatible pinout
Standard 6-pin ISP header
Two LED indicators
ATmega328P with Arduino bootloader
MAX7456 monochrome on-screen display
15x15MM Size
Modifications for direct connection of two batteries (up to 4S)
Pad for an Analog or Digital PWM RSSI signal
Pad for the connection of a Current Sensor
