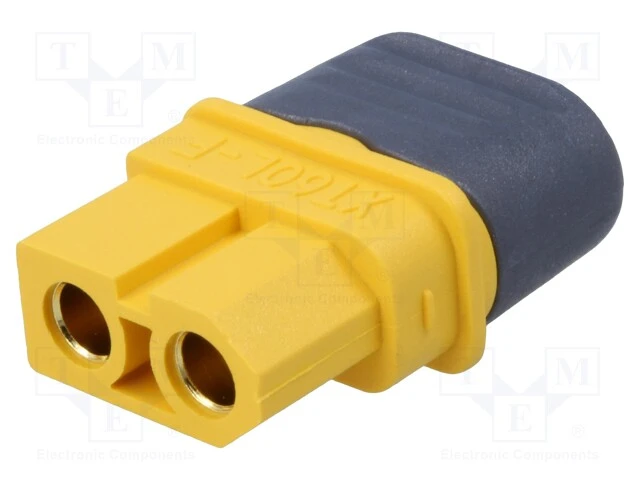

Plug; DC supply; XT60; female; PIN:2; for cable; soldered; 6
Tootekood:XT60L-F
Pilt on illustratiivne
Plug; DC supply; XT60; female; PIN:2; for cable; soldered; 6
Connector: plug
Type of connector: DC supply
Connector series: XT60
Kind of connector: female
Number of pins: 2
Mechanical mounting: for cable
Electrical mounting: soldering
Contact plating: gold flash
Current rating: 30A
Flammability rating: UL94V-0
Operating temperature: -20...120°C
Rated voltage: 500V
Spatial orientation: straight
Wire size: 12AWG
Contact material: brass
Mechanical durability: 1000 cycles
Body material: polyamide
-
