Infarpuna kaugusandur 38 kHz Pololu

  • Tootekood: POLOLU-2578

 Püsikliendi hind

5+ 6.97€
1+ 8.55€

Tavahind

9.00€

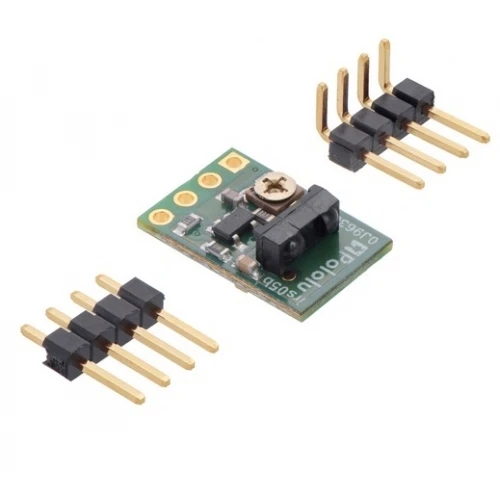

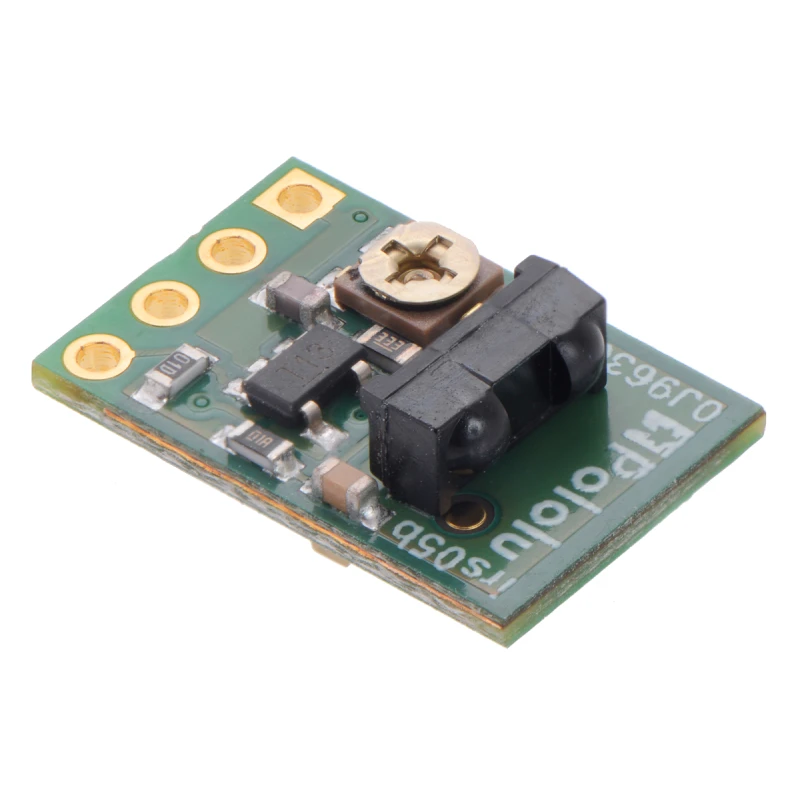

This module features a fixed-gain, 38 kHz modulated IR sensor and a corresponding IR LED with oscillator circuit to make a tiny proximity sensor. This high-brightness version draws an average of 16 mA at 5 V and has a typical sensing range up to approximately 24 inches (60 cm).

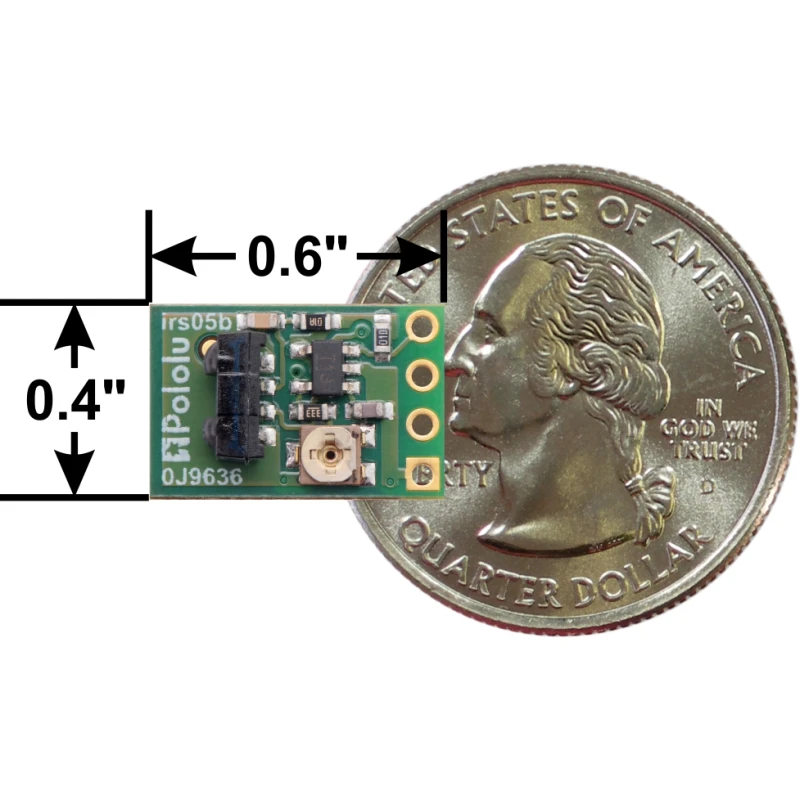

Dimensions
- Size: 0.4″ × 0.6″ × 0.2″1
- Weight: 0.6 g1

General specifications
- Maximum range: 24 in2
- Sampling rate: 1 kHz
- Average input current: 16 mA
