Mootor 50:1 metall HPCB 6V Pololu

  • Tootekood: POLOLU-3073

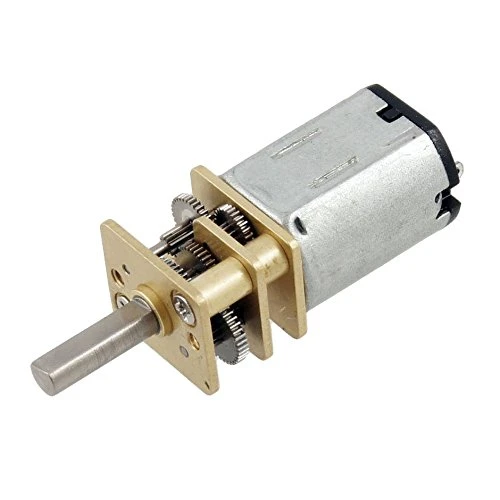

This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 51.45:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.

Dimensions
- Size: 10 × 12 × 26 mm1
- Weight: 9.5 g
- Shaft diameter: 3 mm2

General specifications
- Gear ratio: 51.45:1
- No-load speed @ 6V: 650 rpm
- No-load current @ 6V: 0.10 A
- Stall current @ 6V: 1.5 A
- Stall torque @ 6V: 0.74 kg·cm
- Max output power @ 6V: 1.2 W
- Extended motor shaft: Y
- Long-life carbon brushes: Y
- Motor type: 1.5A stall @ 6V (HPCB 6V - carbon brush)

Performance at maximum efficiency
- Max efficiency @ 6V: 32 %
- Speed at max efficiency: 490 rpm
- Torque at max efficiency: 0.16 kg·cm
- Current at max efficiency: 0.42 A
- Output power at max efficiency: 0.80 W
