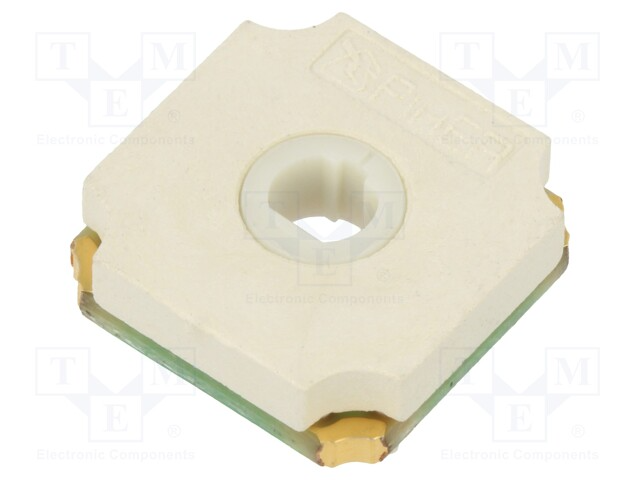

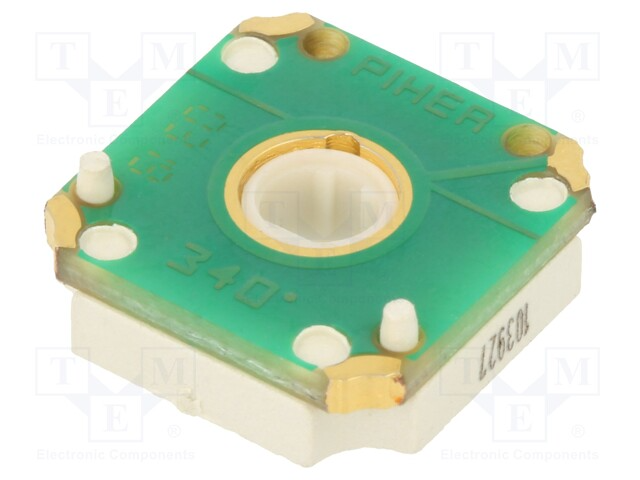

Potentiometer: mounting; single turn,horizontal; 10kΩ;
Tootekood:N15TS-103A30-BULK
Pilt on illustratiivne
Potentiometer: mounting; single turn,horizontal; 10kΩ;
Manufacturer - PIHER
Type of potentiometer - mounting
Kind of potentiometer - horizontal, single turn
Resistance - 10kΩ
Power - 0.15W
Mounting - SMD
Tolerance - ±30%
Temperature coefficient - 300ppm/°C
Characteristics - linear
Body dimensions - 15x15x4.4mm
Operating temperature - -40...120°C
Track material - carbon
Electrical rotation angle - 340°
Mechanical rotation angle - 360°
Terminal pitch - 16x16mm
Mechanical durability - 100000 cycles
-
