Tihendatud ABS korpus- tumehall, 115 x 65 x 40mm

These enclosures consist of high-impact ABS (operating temperature : -20°C to +100°C). The lid and the base are equipped with a tongue and groove sealing system with a neoprene gasket. The mounting holes and the lid-fixing screws are located outside the sealed area, preventing moisture and dust from entering the enclosure. Internal guide slots allow the vertical mounting of PCB assemblies. Designed to meet IP65 of IEC529 and NEMA4 (dust- and hoseproof). The bosses on the internal base allow the horizontal fixing of PCB's or the connection of terminals, etc. with threaded brass inserts. Also available with clear lid (on demand).
Specifications:

material: ABS

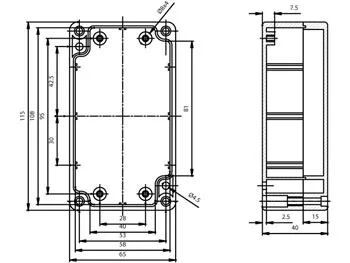

dimensions: 115 x 65 x 40mm
colour: dark grey
