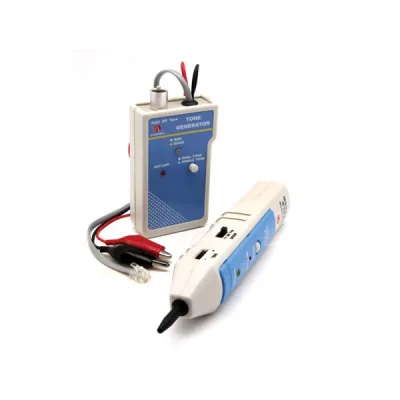

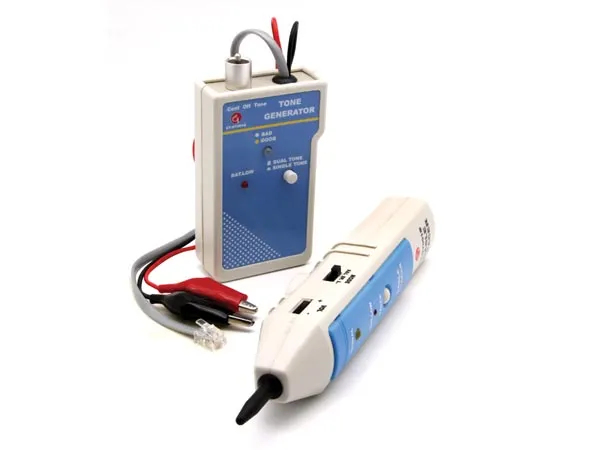

Toongeneraatoriga kaabliotsija ( Velleman )
Tootekood: VTTEST11
- 50.00 €
-
Järelmaksu taotluse esitamiseks lisage toode ostukorvi, valige makseviisiks Liisi järelmaks ning kinnitage tellimus. Peale tellimuse kinnitamist ilmub ekraanile Liisi järelmaksu taotlus. Arvutus on ligikaudne ja võib erineda Teile pakutavatest tingimustest.
Toode on tarnija laos, eeldatav tarneaeg 09.04.2025
With this handy tool, you can quickly and easily locate short circuits, open circuits, broken wires, power leaks and even wires. How does it work? Simple! Connect the tone generator to the cable and use the measurement probe to detect the cable break. Once the cable break is found, the audible signal stops so you can repair it quickly, without opening the insulation layer of the wire. This cable tester can be used to test different types of cables, including:
+ Time-saving: Fast and easy cable break detection.
+ Efficient: Simple operation for quick detection and repair.
+ Versatile: Suitable for various types of cables, including telephone cables (RJ45, RJ12), electrical wiring, audio and video cables, and perimeter wire for robotic mowers.
+ Reliable: Accurate and reliable cable break detection.
+ Simple: Connect the tone generator to the cable and use the measurement probe to detect cable breakage. Once the cable break is found, the beep stops so you can repair it quickly, without opening the wire cover.
+ Efficient: Simple operation for quick detection and repair.
+ Versatile: Suitable for various types of cables, including telephone cables (RJ45, RJ12), electrical wiring, audio and video cables, and perimeter wire for robotic mowers.
+ Reliable: Accurate and reliable cable break detection.
+ Simple: Connect the tone generator to the cable and use the measurement probe to detect cable breakage. Once the cable break is found, the beep stops so you can repair it quickly, without opening the wire cover.
Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
Primary colours: Grey
Additional colours: Blue
Weight unit: 372 g
Material: ABS
Detailed information: Working current tone generator 10 mA (alternating) 20 mA (continuous) Working current probe 25 mA (L) 80 mA (max. SP volume) 100 mA (max. S&L volume)
Width probe: 40 mm
Depth probe: 38 mm
Depth tone generator: 27 mm
Height probe: 205 mm
Height tone generator: 115 mm
Weight probe: 80 g
Weight tone generator: 95 g
Width tone generator: 62 mm
Output wave voltage peak to peak: 10 V
Single audio frequency: 900 Hz
Maximum output volume: 120 dB
Maximum reception sensitivity: 30 mV
Output wave form: Square
Dual audio frequency: 900-1000 Hz
Signal viewing modes: Lamp, Speaker
Audio output type: Speaker
Number of batteries: 2
Input voltage rating VDC: 18 V
Battery composition: Alkaline
Battery IEC size: E (6LR61, 6LP3146, 6F22, 6KR61, 6HR61 ,1604A, 1604D, 1604LC, 7.2H5, 11604, 11604M, PP3, 9-volt, 006P, MN1604)
Primary colours: Grey
Additional colours: Blue
Weight unit: 372 g
Material: ABS
Detailed information: Working current tone generator 10 mA (alternating) 20 mA (continuous) Working current probe 25 mA (L) 80 mA (max. SP volume) 100 mA (max. S&L volume)
Width probe: 40 mm
Depth probe: 38 mm
Depth tone generator: 27 mm
Height probe: 205 mm
Height tone generator: 115 mm
Weight probe: 80 g
Weight tone generator: 95 g
Width tone generator: 62 mm
Output wave voltage peak to peak: 10 V
Single audio frequency: 900 Hz
Maximum output volume: 120 dB
Maximum reception sensitivity: 30 mV
Output wave form: Square
Dual audio frequency: 900-1000 Hz
Signal viewing modes: Lamp, Speaker
Audio output type: Speaker
Number of batteries: 2
Input voltage rating VDC: 18 V
Battery composition: Alkaline
Battery IEC size: E (6LR61, 6LP3146, 6F22, 6KR61, 6HR61 ,1604A, 1604D, 1604LC, 7.2H5, 11604, 11604M, PP3, 9-volt, 006P, MN1604)
