F19610 PWM->PPM muundur

  • Tootekood: PWM-PPM-CONV

 Püsikliendi hind

3+ 14.41€
1+ 18.05€

Tavahind

19.00€

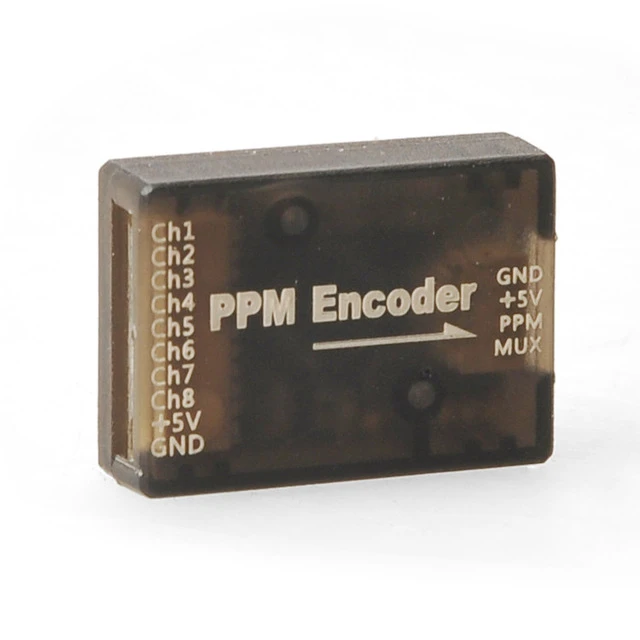

The circuits between Pixracer flight controller and Pixhawk flight are different, there are differences in the signal input portion, and therefore vast majority of PPM PWM modules in the the market are not available. The PWM to PPM Encoder Switcher for Pixracer Pixhawk MWC Flight Controller can solve this problem for Pixracer flight control with PWM receiver use, and also backward compatible with Pixhawk, MWC flight controls and a series of open source flight controllers.

- Designed to connect PWM and PPM flight controllers

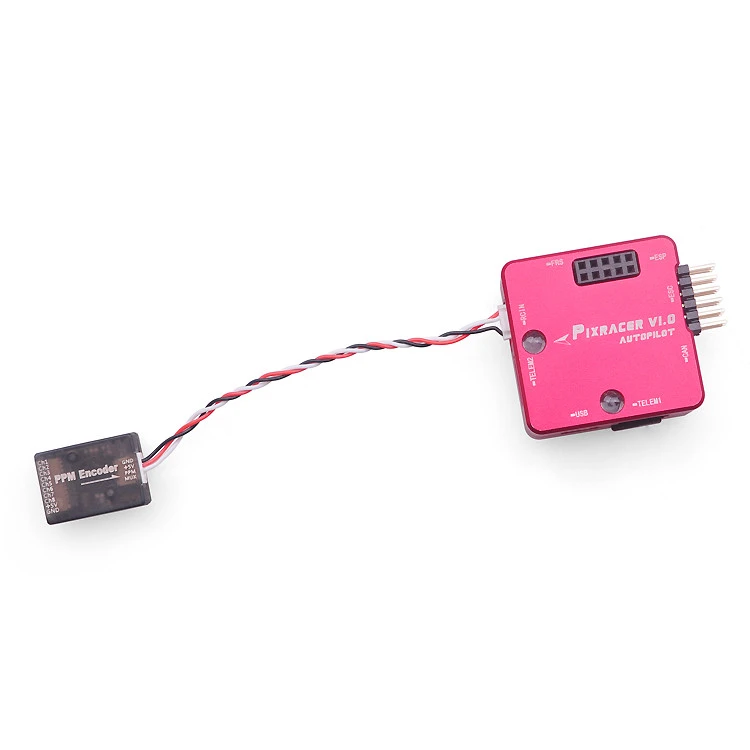

- Suitable for Pixracer flight control with PWM receiver use
- Backward compatible with Pixhawk, MWC flight controls and a series of open source flight controllers
- Mini and light, weigh merely 3g
- High quality, long life span
- Suitable for: Pixracer Pixhawk MWC Flight Controller
- Dimensions: (1.42 x 1.42 x 0.24)" / (3.6 x 3.6 x 0.6)cm (L x W x H)

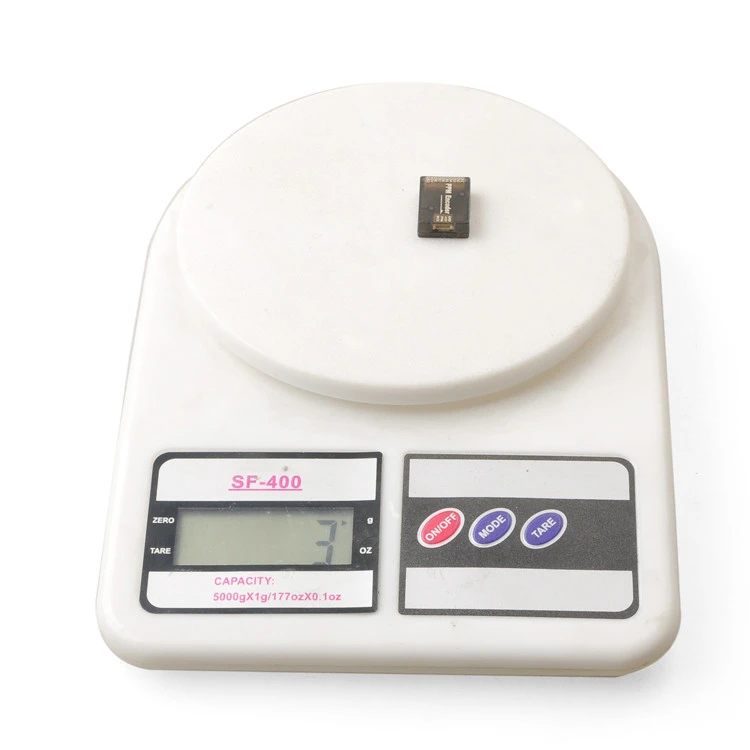

- Weight: 0.11oz / 3g

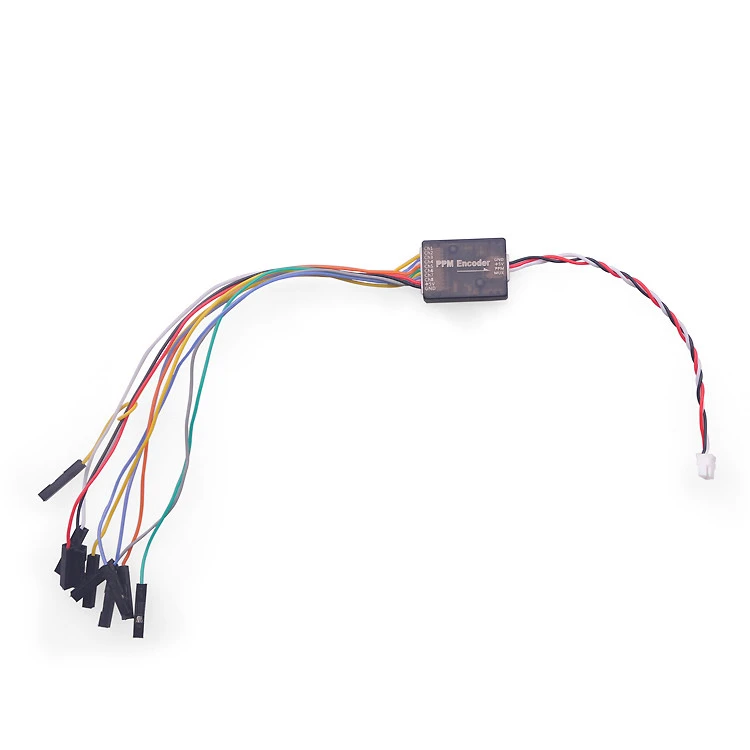

Package Includes: PPM Encoder and 3Pin Connector
