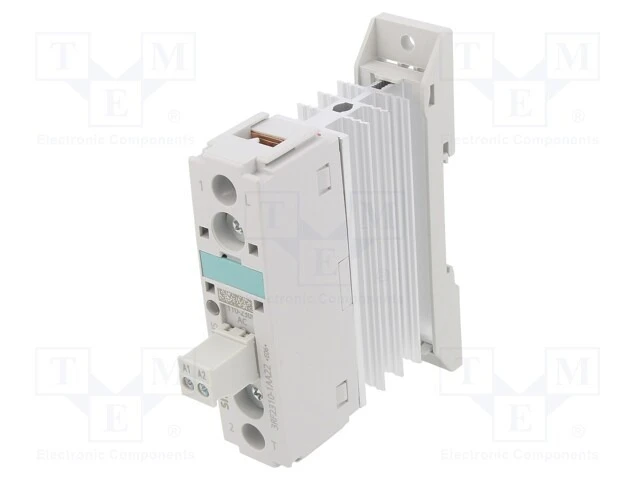

Relee 110-230VAC/24VDC SOLID STATE 10A 24-230VAC Siemens 3RF2310-1AA22
Tootekood:3RF2310-1AA22
Pilt on illustratiivne
Relee Siemens 3RF2310-1AA22 solid state; Ucntrl: 110÷230VAC,24VDC; 10A; 24÷230VAC
Type of relay: solid state
Control voltage: 24V DC, 110...230V AC
Max. operating current: 10A
Switched voltage: 24...230V AC
Relay series: 3RF23
Relay variant: 1-phase
Mounting: for DIN rail mounting
Operating temperature: -25...60°C
Body dimensions: 22,5x100x86mm
Switching method
(the position in bracket indicates momentary position.):zero voltage switching
Leads: screw terminals
Design: heatsink
