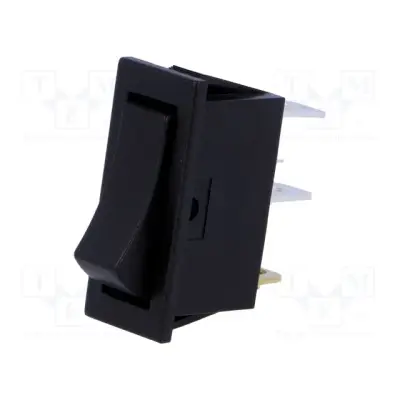

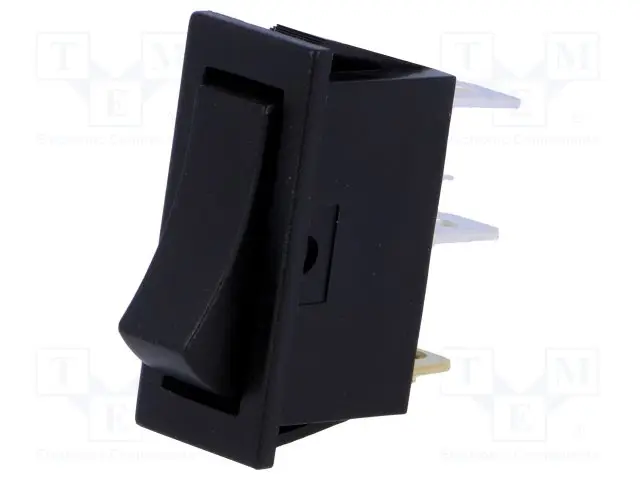

ROCKER; SPST; Positions: 2; OFF-(ON); 10A/250VAC; black; none; 50mΩ

  • Tootekood: RS1391FBB0
Tasku keskuse Oomipood, Turu 2, Tartu 1
ROCKER; SPST; Positions: 2; OFF-(ON); 10A/250VAC; black; none; 50mΩ
Manufacturer seriesR13-91-AC
Body materialpolyamide
Shaperectangular
Backlight colournone
Button markingblank
Mounting hole diameter30.4x11.2mm
Electrical life6000cycles
Panel thicknessmax. 3mm
Leads6,3x0,8mm connectors
Operating temperature-20...85°C
Flammability ratingUL94V-2
Body colourblack
Max. contact resistance:50mΩ
Illuminationnone
Key button colourblack
AC contacts rating @R10A / 250V AC
Switching methodOFF-(ON)
Stable positions number1-position
Number of positions2
Contacts configurationSPST
Type of switchROCKER
ManufacturerSCI
