Sonoff Dual R3 230V 15A 2 kanaliga Wi-Fi juhtmevaba lüliti

  • Tootekood: SF-DUAL R3 LITE
  • SONOFF
Pealadu
Tallinn, Peterburi tee 90F
11 tk
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
1 tk
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
4 tk
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
2 tk
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
1 tk
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
2 tk
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
3 tk

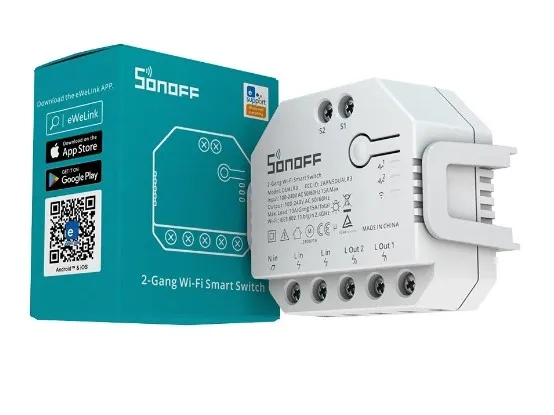

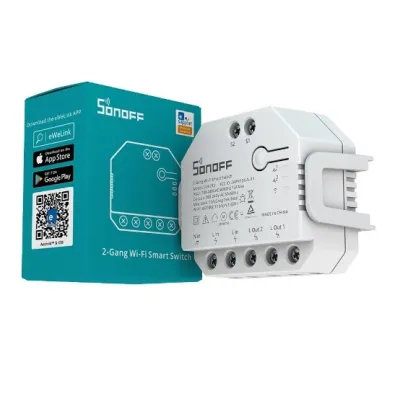

Sonoff Dual R3 Lite

DUALR3 is a flush-mounted Wi-Fi smart dual relay switch module that is installed behind any standard switch to transfer it into a smart switch for wireless remote control with mobile devices or voice command.


Two-channel intelligent switch, which can be used to selectively control two different loads at the same time, or to manage a two-way electric motor for electric shutters (or similar).


The power supply (as well as the output) is the classic 100-240v alternating, while the maximum deliverable power is 10 Ampere per channel and 15 as a maximum sum.


If used to control roller shutter motors, the maximum load per channel is 1A (inductive load).


It has a terminal block with two contacts for the external connection of buttons and / or mechanical switches and three status LEDs, one blue relating to the status of the connectivity and two red ones relating to the status of the two channels. A small button on the back


Sonoff Dual R3 Lite is equipped with a firmware that, in tandem with the well-known eWeLink application (for Android and iOS), allows the following functions:


configuration of use (single or interlocked channels for use with motors for electric shutters or similar);

timings (automatic on / off or automatic shutter adjustment).

NB: does not include the power and energy monitoring functions, nor the automatic overload protection nor the self-tuning function for electric motors.

Power supply: 100-240VAC

Maximum current: 15A (total), 10A (1 channel)

Maximum power: 3300W (total) / 2200W (1 channel)

Product dimensions: 54*49*24 mm

Color: White

Frequency: 802.11 b/g/n

Security Mechanism: WPA-PSK/WPA2-PSK

Humidity: 5%-95% RH, non-condensing

Housing material: flame retardant ABS V0

Operating Temperature: -10°C-40°C

Number of channels: 2

SF-DUAL R3 LITE Kasutusjuhend1.95MBLae alla
