SONOFF DUALR3 Lite Dual Relay Two Way Smart Switch
SKU:SF-DUAL R3 LITE
Manufacturer:SONOFF
Image is for illustrative purposes only

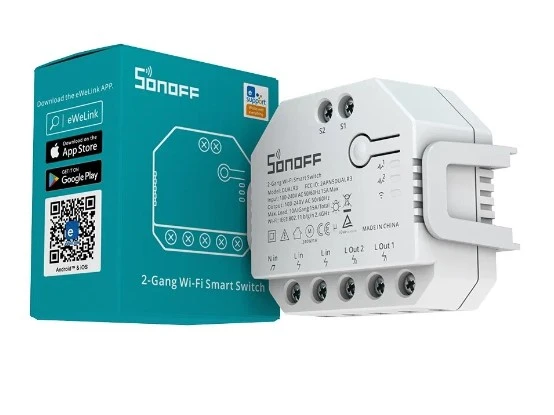

Sonoff Dual R3 Lite
The Sonoff Dual R3 Lite is a flush-mounted Wi-Fi smart dual relay switch module designed to transform any standard switch into a smart switch for wireless remote control via mobile devices or voice commands.
Key features:
- Two-channel intelligent switch for controlling two different loads simultaneously
- Ideal for managing a two-way electric motor for electric shutters or similar applications
- Power supply: 100-240V AC
- Maximum power delivery: 10 Ampere per channel, 15A maximum sum
- Maximum load per channel when used with roller shutter motors: 1A (inductive load)
- Terminal block with two contacts for external connection of buttons/mechanical switches
- Three status LEDs: one blue for connectivity status, two red for channel status
- Equipped with firmware for use with the eWeLink app (Android and iOS)
Functions supported by the firmware:
- Configuration of use (single or interlocked channels for motor control)
- Timings for automatic on/off or shutter adjustment
Note: The device does not include power/energy monitoring, automatic overload protection, or self-tuning function for electric motors.
The Sonoff Dual R3 Lite is a flush-mounted Wi-Fi smart dual relay switch module designed to transform any standard switch into a smart switch for wireless remote control via mobile devices or voice commands.
Key features:
- Two-channel intelligent switch for controlling two different loads simultaneously
- Ideal for managing a two-way electric motor for electric shutters or similar applications
- Power supply: 100-240V AC
- Maximum power delivery: 10 Ampere per channel, 15A maximum sum
- Maximum load per channel when used with roller shutter motors: 1A (inductive load)
- Terminal block with two contacts for external connection of buttons/mechanical switches
- Three status LEDs: one blue for connectivity status, two red for channel status
- Equipped with firmware for use with the eWeLink app (Android and iOS)
Functions supported by the firmware:
- Configuration of use (single or interlocked channels for motor control)
- Timings for automatic on/off or shutter adjustment
Note: The device does not include power/energy monitoring, automatic overload protection, or self-tuning function for electric motors.
Power supply: 100-240VAC
Maximum current: 15A (total), 10A (1 channel)
Maximum power: 3300W (total) / 2200W (1 channel)
Product dimensions: 54*49*24 mm
Color: White
Frequency: 802.11 b/g/n
Security Mechanism: WPA-PSK/WPA2-PSK
Humidity: 5%-95% RH, non-condensing
Housing material: flame retardant ABS V0
Operating Temperature: -10°C-40°C
Number of channels: 2
Maximum current: 15A (total), 10A (1 channel)
Maximum power: 3300W (total) / 2200W (1 channel)
Product dimensions: 54*49*24 mm
Color: White
Frequency: 802.11 b/g/n
Security Mechanism: WPA-PSK/WPA2-PSK
Humidity: 5%-95% RH, non-condensing
Housing material: flame retardant ABS V0
Operating Temperature: -10°C-40°C
Number of channels: 2
