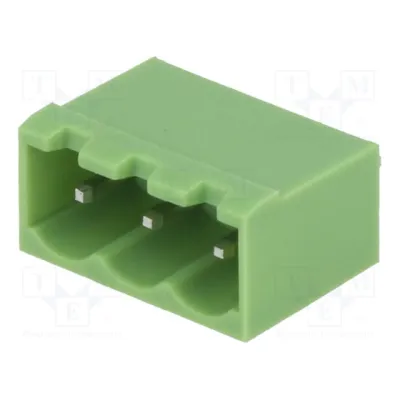

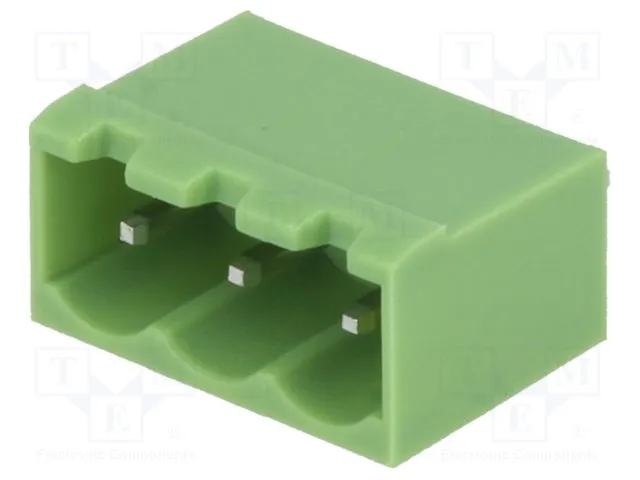

Pilt on illustratiivne
Pluggable terminal block; Contacts ph: 5.08mm; ways: 3; straight
Tootekood: TBG-5-PW-3P-GN
- 0.50 €
-
- Püsikliendile 0.4750 € -5%
- Logi sisse ja saad vähemalt 5% soodustust
Pealadu
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
10 tk
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
0 tk
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
Tallinn, Pärnu mnt. 238
0 tk
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
Tartu, Lääneringtee 39
0 tk
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
Rakvere, Haljala tee 4
0 tk
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
Pärnu, Papiniidu 8
0 tk
Pluggable terminal block; Contacts ph: 5.08mm; ways: 3; straight
| Height | 12mm |
| Number of pins | 3 |
| Contact material | brass |
| Operating temperature | -40...105°C |
| Contact plating | tinned |
| Conform to the norm | UL |
| Flammability rating | UL94V-0 |
| Body material | PA66 |
| Locking system | friction lock |
| Type of pin configuration | 1x3 |
| Current rating | 15A |
| Rated voltage | 300V |
| Colour | green |
| Electrical mounting | THT |
| Mechanical mounting | on PCBs |
| Kind of connector | male |
| Connector | socket |
| Spatial orientation | straight |
| Number of ways | 3 |
| Contacts pitch | 5.08mm |
| Type of connector | pluggable terminal block |
| Manufacturer | XINYA |
