Joone jälgimise moodul TCRT5000

  • Tootekood: TCRT5000
Pealadu, Peterburi tee 90F, Tallinn 46
Järve keskuse Oomipood, Pärnu mnt. 238, Tallinn 1
Pargi keskuse Oomipood, Puru tee 1, Jõhvi 2

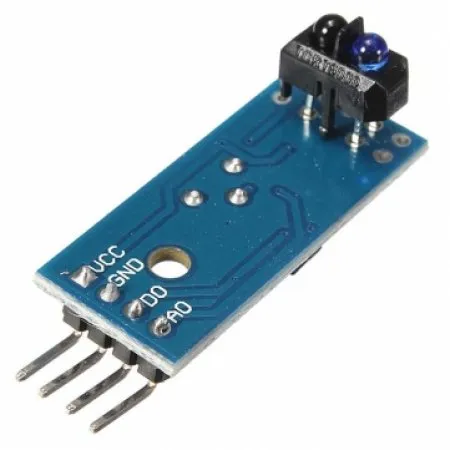

This TCRT5000 Single Channel Line Tracking Sensor Module is a great detector for a line-following robot. Potentiometer to adjust the sensitivity of the individual sensors.

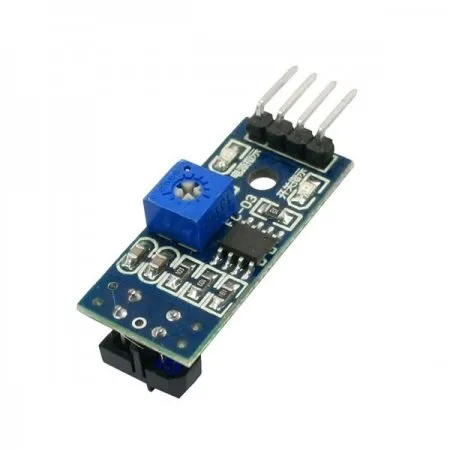

TCRT5000 Single Channel Line Tracking Sensor Module is a carrier board for TCRT5000 reflective optical sensor. Although it is designed for use with line-following robots, it can be used in mini-sumo robots for line control. The board has a digital output.


The concept of working of line follower sensor is related to light. We use here the behavior of light at the black and white surface. When light fall on a white surface it is almost fully reflected and in case of black surface light is completely absorbed. This behavior of light is used in building a line follower sensor.


Each phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0V and VIN (which is typically 5V) as a function of the reflected IR. The lower output voltage is an indication of greater reflection.


Working voltage of 5V, the output of the black line low, white line of high output

Uses Infrared Light to Detect Anti-Interference Ability

Sensors to adopt TCRT5000 High Sensitivity, Stable Performance

Exquisite workmanship, with the indicator

Has a fixed bolt hole for easy installation


Package Includes :

1 xTCRT5000 Single channel line trackingsensor module.



Additional information

Operating Voltage (VDC)

3.3 ~ 5


Supply Current (A)

20mA


Optimal Sensing Distance(mm)

3


Output Format

A Analog and Digital Voltage


Length (mm) 42

Width (mm) 10

Height (mm) 10

Weight (g) 2
