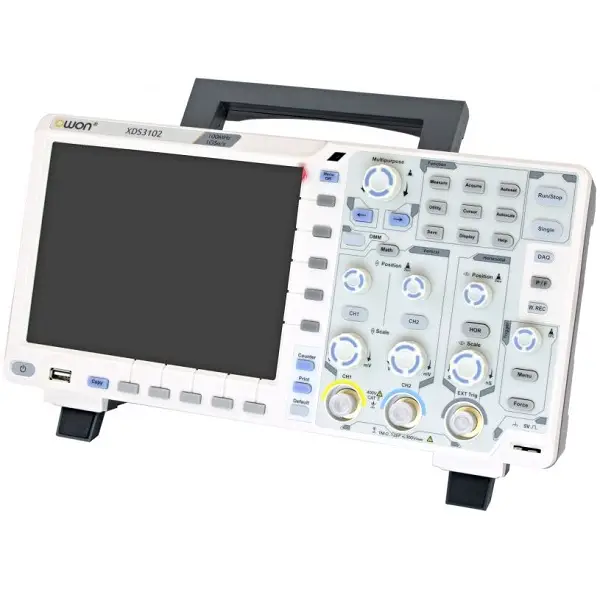

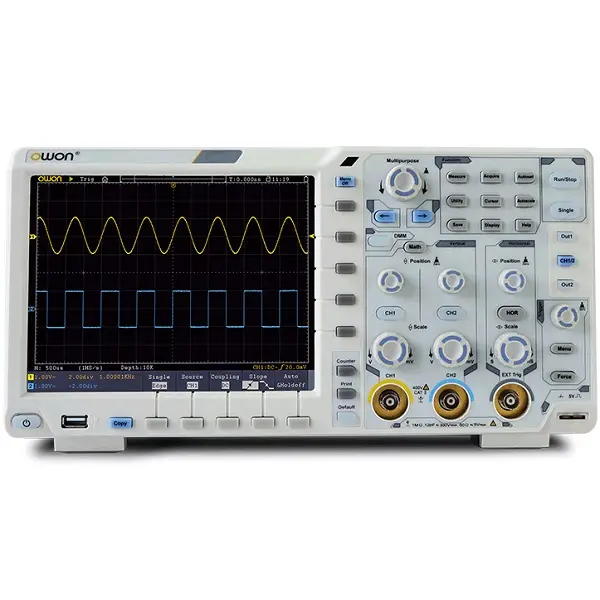

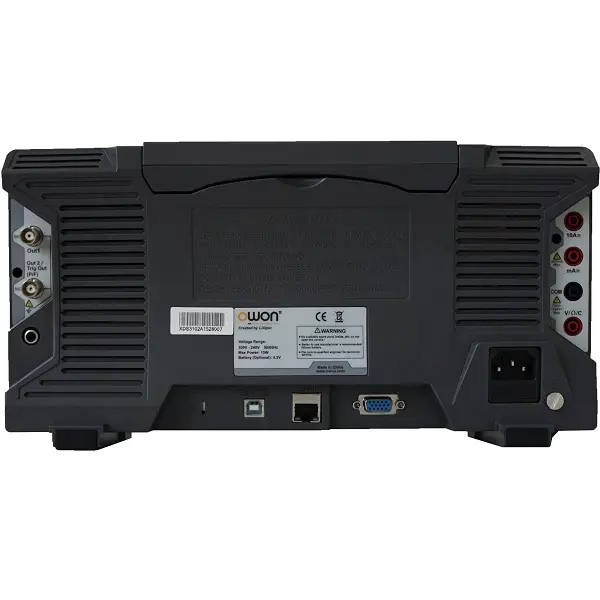

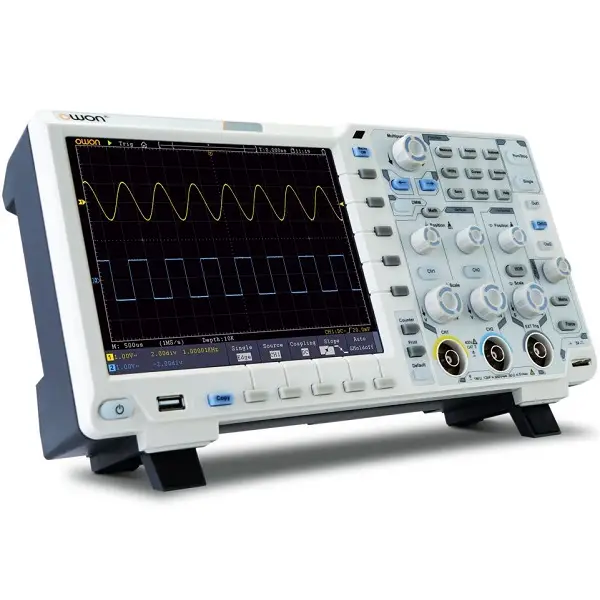

2 kanaliga ostsilloskoop 8"TFT TS 800*600 14bit 100MHz 1GS/s

Bandwidth 100MHz

Sample Rate 1GS/s

Record length 40M

Waveform Refresh Rate 75,000 wfms/s

Horizontal Scale (s/div) 1ns/div - 1000s/div

Channel 2 + 1 (external)

Display 8" 50Ω ≤ 5Vrms DC Gain Accuracy ±3%

Input Coupling DC, AC, and GND Vertical Sensitivity 1mV/div - 10V/div (at input)

Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,  and CAN (optional)

Bus Decoding I2C, SPI, RS232, and CAN (optional)

Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin,

Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,

+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓,

+Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Countn

Waveform Math ＋, －, ×, ÷, FFT Waveform Storage 100 waveforms

Accessories: Power Cord, CD Rom, Quick Guide, USB Cable Probe

Optional Accessories

Multimeter Lead

Q9

Capacitance Ext Module

Battery 3.7V, 13200 mAh
