Tootekood:64704-GBY
Tootja:
Lapp Mobility

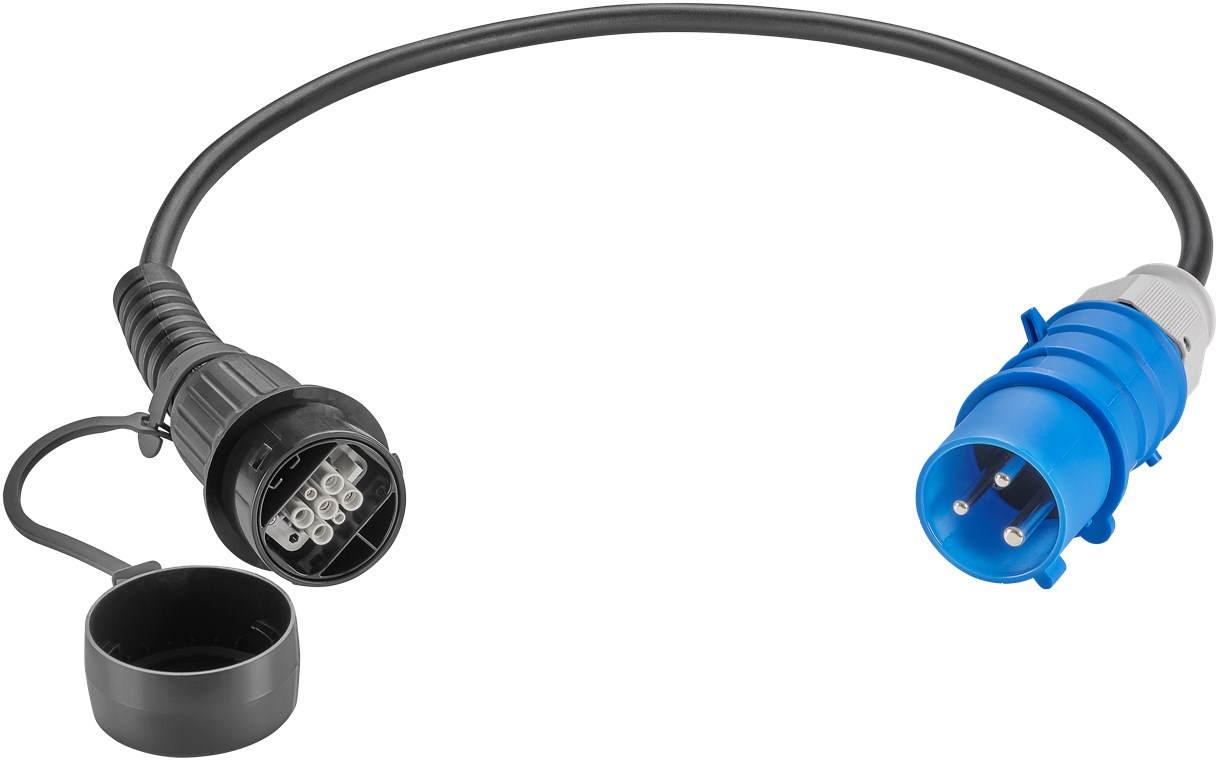

(5555923002) 32 A, adapter cable for the LAPP charging station Universal
Mains adapter for use with the separately available Mode 2 charger "Charging Station Universal" for Type 2 electric cars
Ideal for charging hybrid and electric vehicles with up to 3.7 kW from CEE industrial sockets, e.g. at the standard sockets at campsites
As an adapter for the charging station Universal, it provides highly flexible mobile charging, eliminating the need to purchase an additional Type 2 cable
Charging cable for safe, stable charging at a nominal voltage of 230 V (AC), operating temperature -25 °C to 45 °C
Robust, vehicle-resistant cables and a socket with silver-plated contacts provide extra durability
The cover cap on the female plug protects against the ingress of dust, dirt and water during storage
The mains adapter directly connects the LAPP Universal charging station for EVs to a CEE socket - for easy charging at home or on the road.
Simply connect the Type 2 coupling of the cable to the car and the CEE plug to the socket.
The on-board electronics automatically starts and finishes the charging process.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
Mains adapter for use with the separately available Mode 2 charger "Charging Station Universal" for Type 2 electric cars
Ideal for charging hybrid and electric vehicles with up to 3.7 kW from CEE industrial sockets, e.g. at the standard sockets at campsites
As an adapter for the charging station Universal, it provides highly flexible mobile charging, eliminating the need to purchase an additional Type 2 cable
Charging cable for safe, stable charging at a nominal voltage of 230 V (AC), operating temperature -25 °C to 45 °C
Robust, vehicle-resistant cables and a socket with silver-plated contacts provide extra durability
The cover cap on the female plug protects against the ingress of dust, dirt and water during storage
The mains adapter directly connects the LAPP Universal charging station for EVs to a CEE socket - for easy charging at home or on the road.
Simply connect the Type 2 coupling of the cable to the car and the CEE plug to the socket.
The on-board electronics automatically starts and finishes the charging process.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
Connection 2, type: LAPP Separation point
Cable type: smooth cable
Material cable sheath: ÖLFLEX®CHARGE
Connection, type: CEE plug blue, 3-pole 1ph/32 A
Color version: black
Color: black
Packaging type: Retail Box
Loading capacity up to: 7.4 kW
Rated voltage: 230 V (AC)
Number of phases: 1
Cable length: 0.96 m
Inner conductor cross-section: 6 mm²
protection class: IP44
max current capacity: 32 A
Markings: WEEE, CE
Operating temperature from: -25 °C
Operating temperature up to: 45 °C
Cable type: smooth cable
Material cable sheath: ÖLFLEX®CHARGE
Connection, type: CEE plug blue, 3-pole 1ph/32 A
Color version: black
Color: black
Packaging type: Retail Box
Loading capacity up to: 7.4 kW
Rated voltage: 230 V (AC)
Number of phases: 1
Cable length: 0.96 m
Inner conductor cross-section: 6 mm²
protection class: IP44
max current capacity: 32 A
Markings: WEEE, CE
Operating temperature from: -25 °C
Operating temperature up to: 45 °C
