Tootekood:60364-GBY
Tootja: Goobay

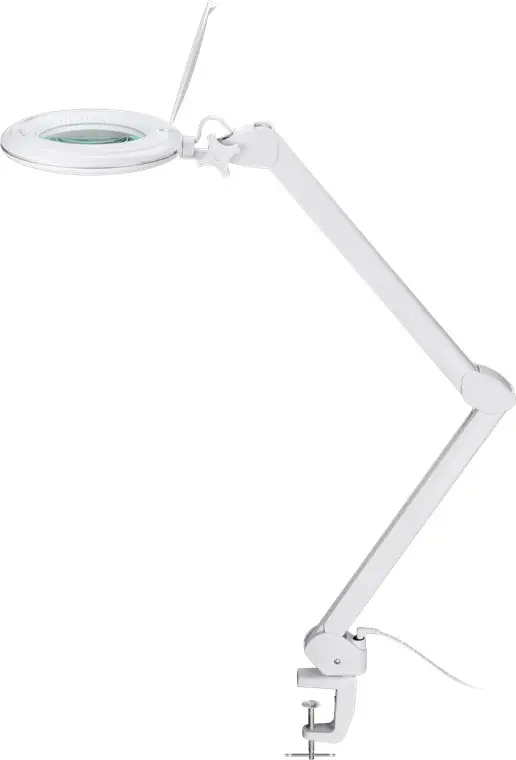

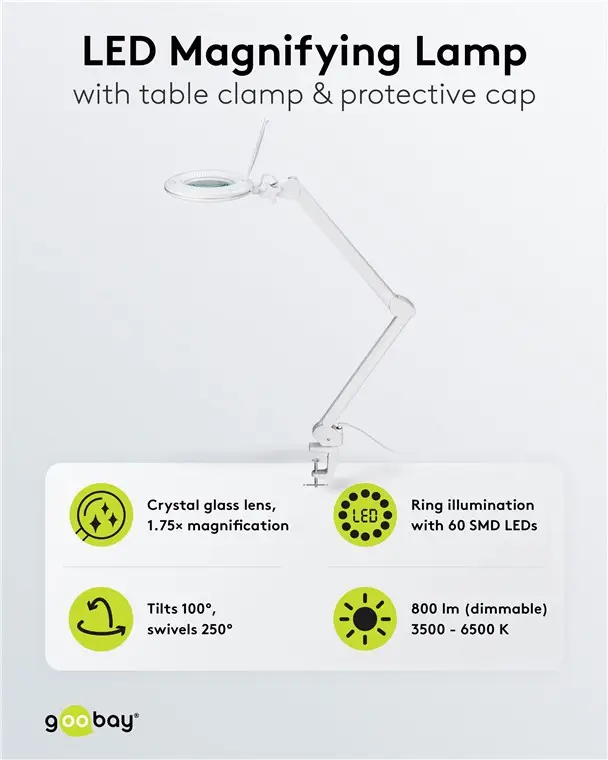

LED Magnifying Lamp with Clamp, 10 W, white
Pilt on illustratiivne
800 lm, brightness & light colour adjustable, 127 mm glass lens, 1.75x magnification, 3 dioptres
Brightness and light colour of the magnifier lamp are adjustable in 6 steps via separate touch panels, max. 800 lm, warm white to daylight-balanced (3500 - 6500 K).

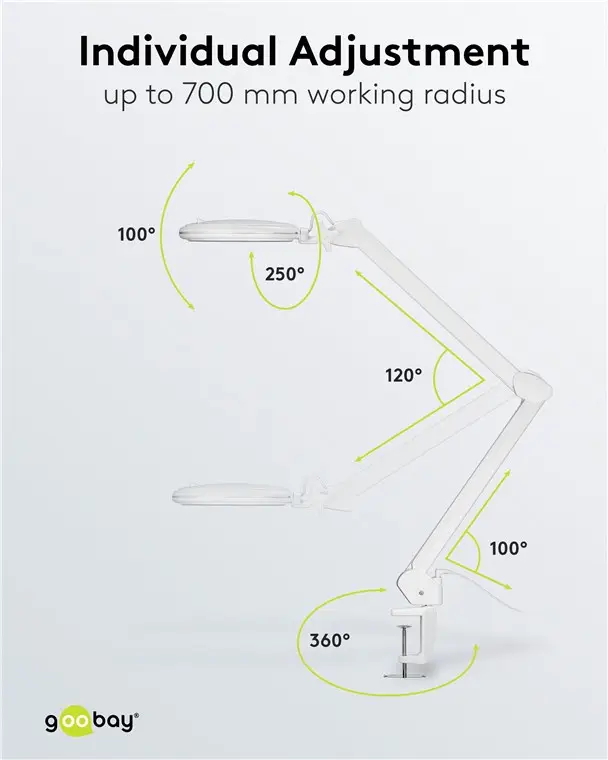

Lens head of the magnifying glass lamp can be tilted by up to 100° and swivelled by 250°, 127 mm lens diameter creates a harmonious LED ring illumination.
Thanks to the quick-release, you can easily and toolfree replace the crystal glass lens of the magnifier with light with 3 dioptres and 1.75x magnification (incl. protective cap)
Articulated arm of the magnifier lamp with integrated cable guide provides flexible 700 mm working radius.
The multi-purpose craft magnifier is useful e.g. in the beauty sector, as a reading aid or for precision work such as embroidery and soldering.
Ideally suitable as a table magnifying glass, a craft light, a desk, drawing or reading lamp

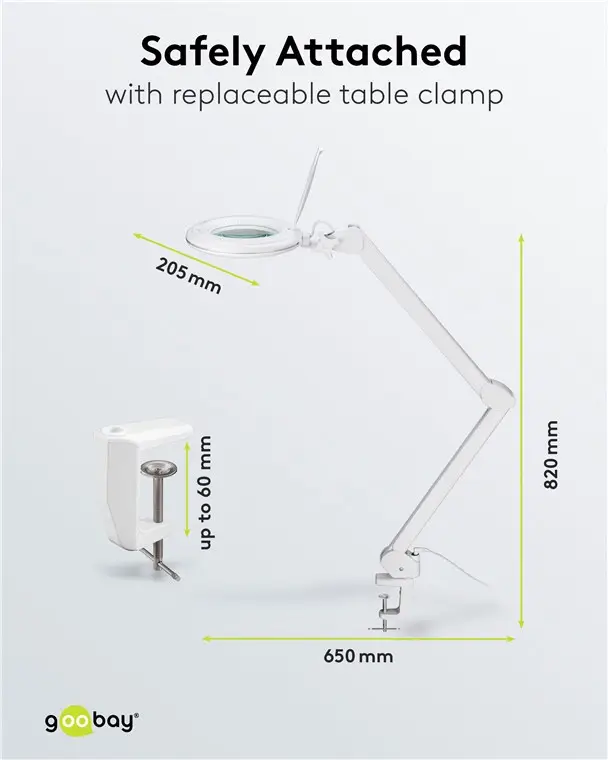

The clip-on of the magnifying desk lamp is suitable for a table top thickness of up to 50 mm. Replacement table clamp: 77460, matching wall bracket: 55771.
Connection, type: Europlug (Type C CEE 7/16)
luminous source: light emitting diode (LED)
Luminous color: variable/adjustable (warm white/classic white/cool white)
Illuminate-Type: SMD LED
Dimmability: dimmable
Useful luminous flux (Φuse): Useful luminous flux (Φuse) in a wide cone (120°)
Color: white
cover type: lens
Material: plastic, metal, glass
Applications: workshop
Consumption Unit: 1 pc. in cardboard box
packaging: de, en, fr, it, es, nl, da, sv, cs, pl
Operation manual: de, en, fr, it, es, nl, da, se, cz, pl
Packaging type: Retail Box
Cable length: 1.5 m
Number of LEDs: 60
Colour temperature from: 3500 K
Colour temperature to: 6500 K
Power consumption: 10 W
Luminous flux total: 800 lm
Rated luminous flux: 800 lm
Non-directional or directional light source: DLS
color rendering index: 80 Ra
Lamp service life factor: 0.9
weighted energy consumption: 10 kWh/1.000 h
operating voltage: 20 V (DC)
Output, min. amperage: 0.5 A
Beam Angle: 108 °
Markings: WEEE, CE
Energy efficiency rating: F
protection class: IP20
rated lamp lifetime: 25000 hrs.
Number of switching cycles: 12500 pcs.
Width: 650 mm
Height: 820 mm
depth: 205 mm
Weight: 2232 g
Appliance Class: III
Peak luminous intensity (cd): 273
Chromaticity coordinate x: 0.313
Chromaticity coordinate y: 0.337
R9 colour rendering index value: 1
lumen maintenance factor: 0.96
Colour consistency in McAdam ellipses: 1.8
Flicker metric (Pst LM): 0.1
Stroboscopic effect metric (SVM): 0.6
Output current: 0.5 A
Input AC frequency: 50/60 Hz
Input voltage: 220-240 V
Model identifier: XY12LF-200050VH-EW
SCIP no.: d58bf5d6-0458-461b-b896-b6bce0d0f531
chemical substance: Pb
CAS no.: 7439-92-1
