Tootekood:67049-GBY
Tootja:
Goobay
Pilt on illustratiivne
with direct voltage (DC) feed-through

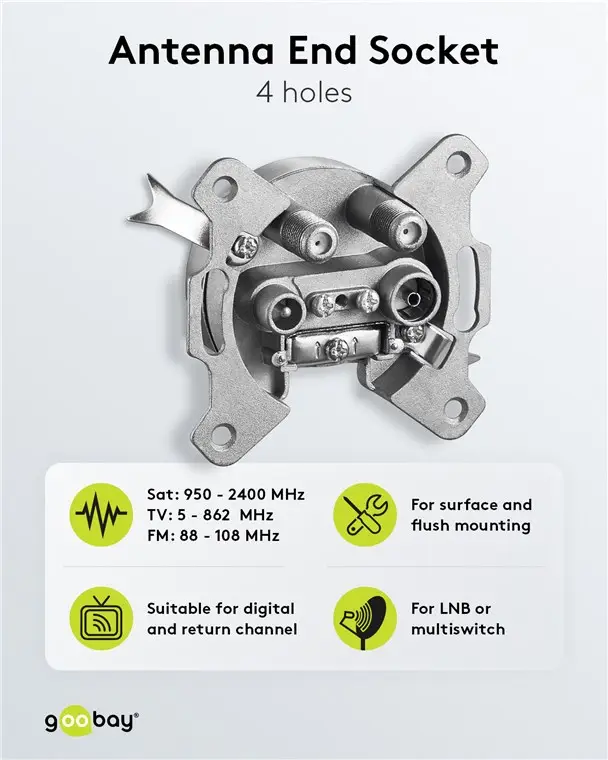

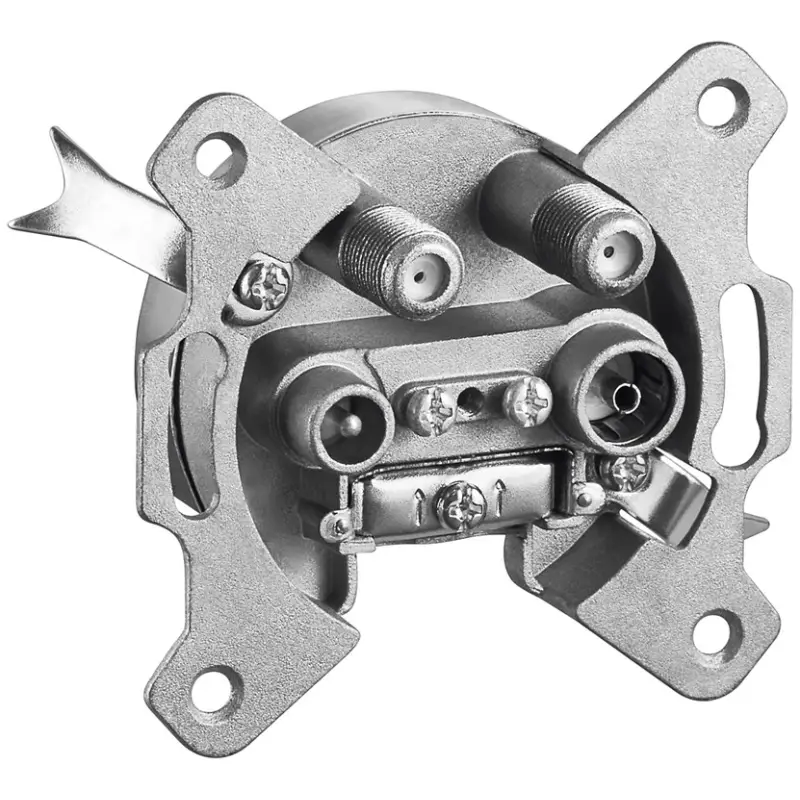

Antenna socket for DVB-C systems, broadcasting, SAT, cable TV and DVB-T
Aerial wall socket is suitable for special channels and return channels.

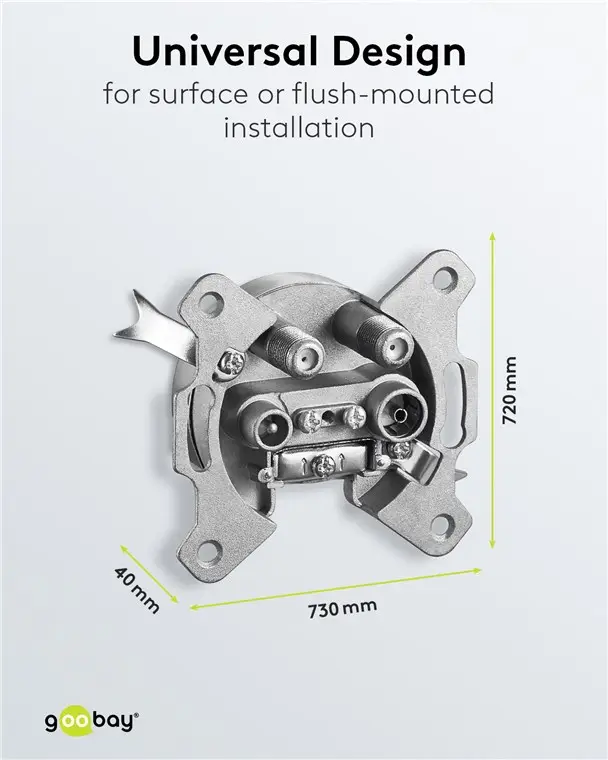

Coax wall socket for connecting a multiswitch or LNB, suitable for surface and flush mounting
950 MHz - 2400 MHz (SAT)
5 MHz - 65 MHz/125 MHz - 862 MHz (TV)
88 MHz - 120 MHz (radio)
Characteristic impedance: 75 ohm
Antenna socket for DVB-C systems, broadcasting, SAT, cable TV and DVB-T
Aerial wall socket is suitable for special channels and return channels.
Coax wall socket for connecting a multiswitch or LNB, suitable for surface and flush mounting
950 MHz - 2400 MHz (SAT)
5 MHz - 65 MHz/125 MHz - 862 MHz (TV)
88 MHz - 120 MHz (radio)
Characteristic impedance: 75 ohm

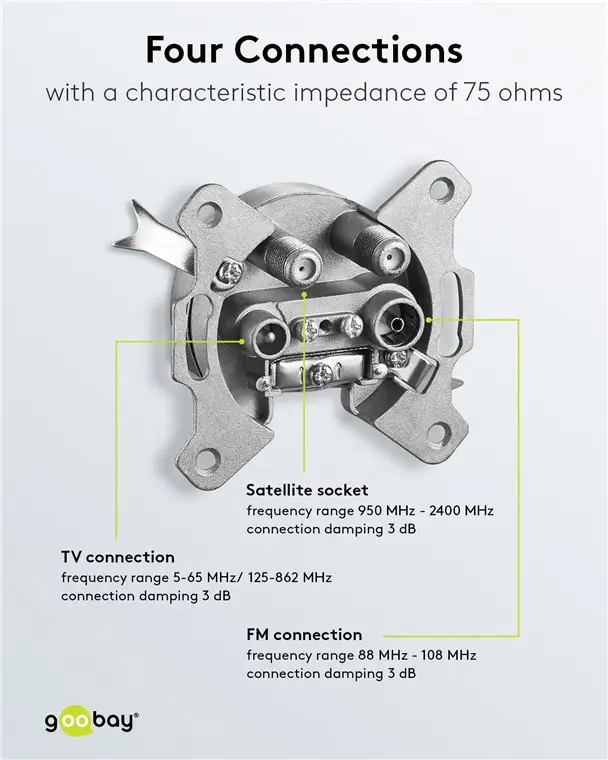

Connection loss radio connection: 3 dB
Connection damping SAT connection: 3 dB
Connection damping TV connection: 3 dB
Frequency range radio connection: 88–108 MHz
Frequency range SAT connection: 950–2,400 MHz
Frequency range TV connection Forward path: 125–862 MHz
Frequency range TV connector rear channel up: 5–65 MHz
Consumption Unit: 1 pc. in cardboard box
Packaging type: Bulk
Markings: CE
Connection damping SAT connection: 3 dB
Connection damping TV connection: 3 dB
Frequency range radio connection: 88–108 MHz
Frequency range SAT connection: 950–2,400 MHz
Frequency range TV connection Forward path: 125–862 MHz
Frequency range TV connector rear channel up: 5–65 MHz
Consumption Unit: 1 pc. in cardboard box
Packaging type: Bulk
Markings: CE
