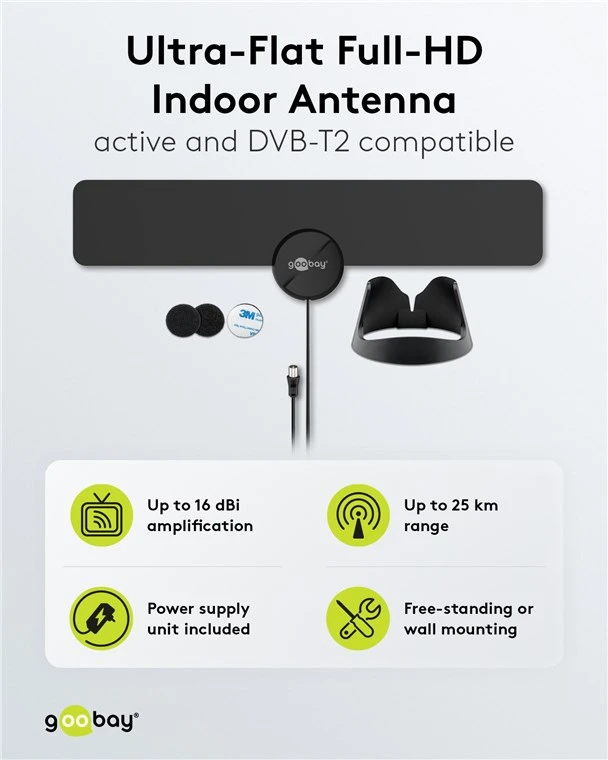

Active DVB-T and DVB-T2 antenna especially for digital terrestrial TV reception (HD, SD)
with up to 16 dBi gain for weak received signal
For reception of digital TV signals in the UHF range (470 MHz - 790 MHz)
Amplifier power: up to 16 dBi
GSM, LTE and 4G filters to prevent interference from mobile phones
Recommended range to the transmitter: 0 - 25 km
Ultra-flat design (0.5 mm), suitable for floor or wall mounting
Shielded coaxial cable and coaxial plug for interference-free reception
Trough the ultraflat design this antenna is very simple and nearly invisible.

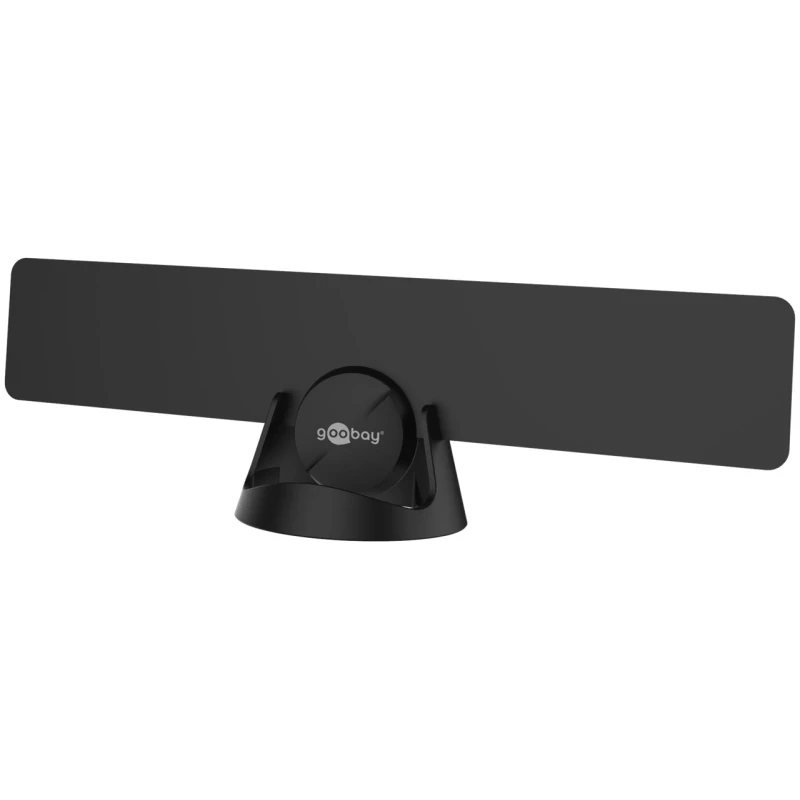

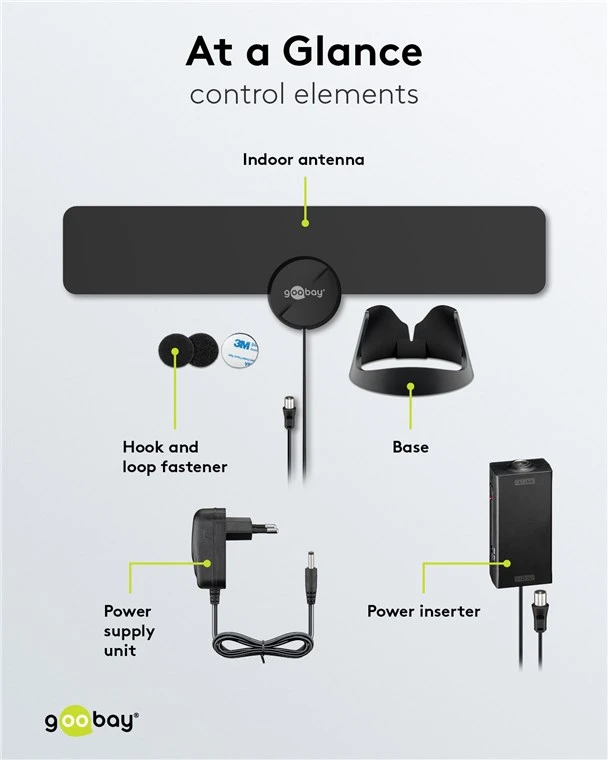

You can place it with the supplied mounting stand or with the hook and loop fastener at the wall.
The extreme low noise antenna amplifier optimizes the reception of the best digital signal within a range of 25 km from your nearest transmitter.
with up to 16 dBi gain for weak received signal
For reception of digital TV signals in the UHF range (470 MHz - 790 MHz)
Amplifier power: up to 16 dBi
GSM, LTE and 4G filters to prevent interference from mobile phones
Recommended range to the transmitter: 0 - 25 km
Ultra-flat design (0.5 mm), suitable for floor or wall mounting
Shielded coaxial cable and coaxial plug for interference-free reception
Trough the ultraflat design this antenna is very simple and nearly invisible.
You can place it with the supplied mounting stand or with the hook and loop fastener at the wall.
The extreme low noise antenna amplifier optimizes the reception of the best digital signal within a range of 25 km from your nearest transmitter.
Cable type: coaxial cable
Signal amplification: yes
Amplifier power-supply: via power supply (Euro plug, 230V)
antenna Type: Indoor Antenna
power Supply: 100-240 V (Euro)
Color version: black
Color: black
Special feature: pliable
Consumption Unit: 1 pc. in cardboard box
packaging: de, en, fr, it
Operation manual: de, en, fr, it, es, nl, da, se, cz, pl
Packaging type: Retail Box
Transmission modes: DVB-T, DVB-T2
Frequency Range UHF from: 470
Frequency range UHF to: 790
antenna gain UHF: 16 dBi max.
blocking filter: LTE/4G
Markings: WEEE, CE, Goobay_DVB-T2_HD, 4G/LTE-Filter
Width: 355 mm
Height: 65 mm
depth: 0.5 mm
Weight: 98 g
Cable Length: 1.8 mm
Average active efficiency: 72.4 %
No-load power consumption: 0.05 W
Weight: 62 g
Dimensions: 55x36x60
Output current: 0.55 A
Input AC frequency: 50/60 Hz
Input voltage: 100-240 V
Model identifier: SW0500550-A02
Signal amplification: yes
Amplifier power-supply: via power supply (Euro plug, 230V)
antenna Type: Indoor Antenna
power Supply: 100-240 V (Euro)
Color version: black
Color: black
Special feature: pliable
Consumption Unit: 1 pc. in cardboard box
packaging: de, en, fr, it
Operation manual: de, en, fr, it, es, nl, da, se, cz, pl
Packaging type: Retail Box
Transmission modes: DVB-T, DVB-T2
Frequency Range UHF from: 470
Frequency range UHF to: 790
antenna gain UHF: 16 dBi max.
blocking filter: LTE/4G
Markings: WEEE, CE, Goobay_DVB-T2_HD, 4G/LTE-Filter
Width: 355 mm
Height: 65 mm
depth: 0.5 mm
Weight: 98 g
Cable Length: 1.8 mm
Average active efficiency: 72.4 %
No-load power consumption: 0.05 W
Weight: 62 g
Dimensions: 55x36x60
Output current: 0.55 A
Input AC frequency: 50/60 Hz
Input voltage: 100-240 V
Model identifier: SW0500550-A02
