Tootekood:67004-GBY
Tootja:
Goobay
Pilt on illustratiivne

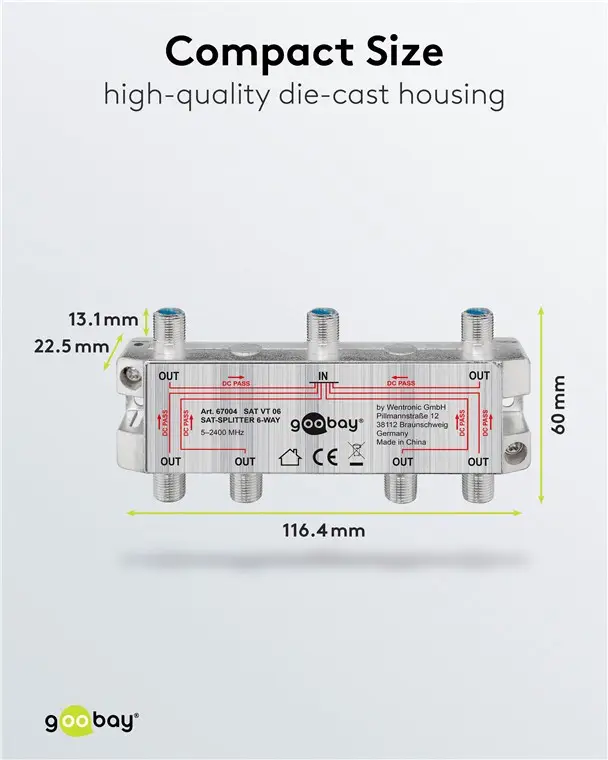

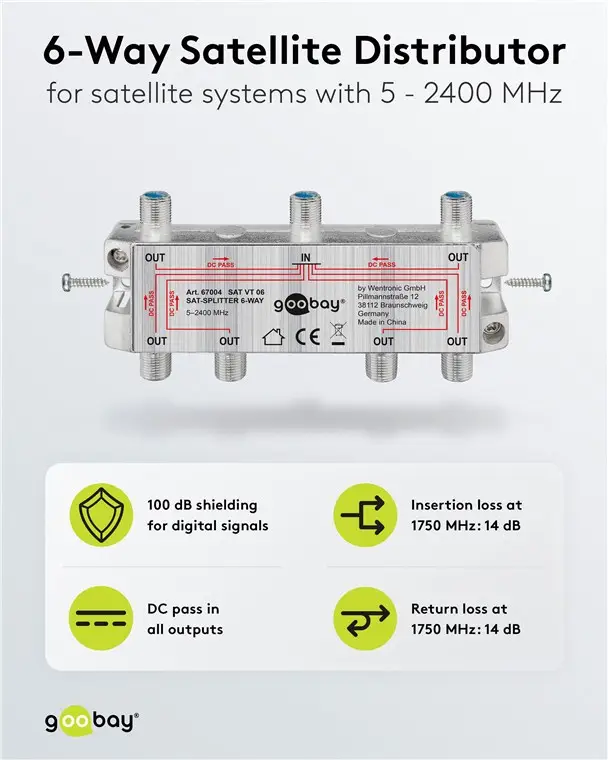

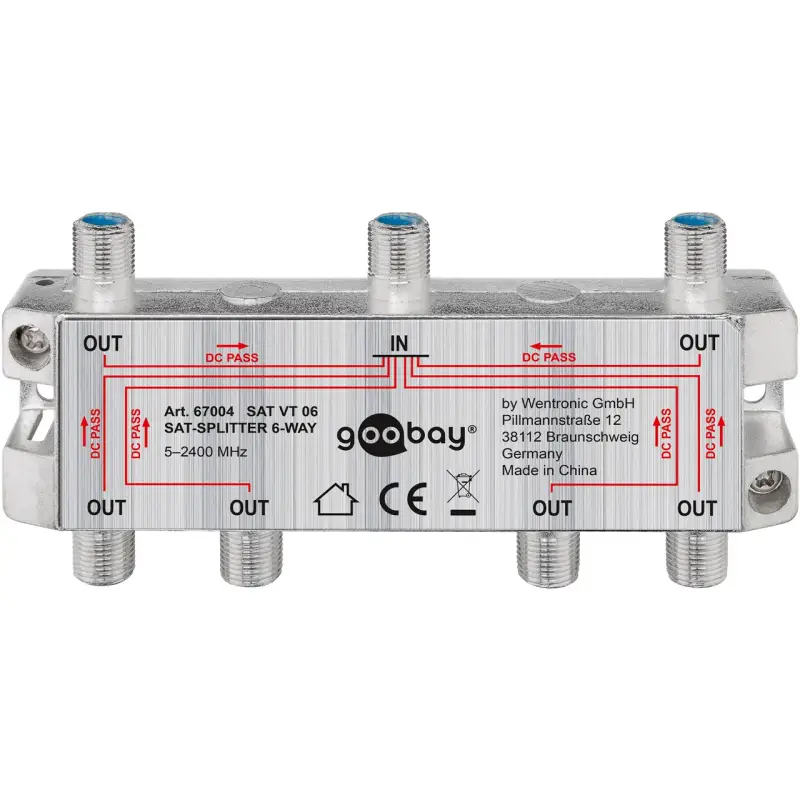

SAT splitter with 100 dB shielding for digital signals
for satellite systems 5 MHz - 2400 MHz
For distributing a satellite signal to 6 connections

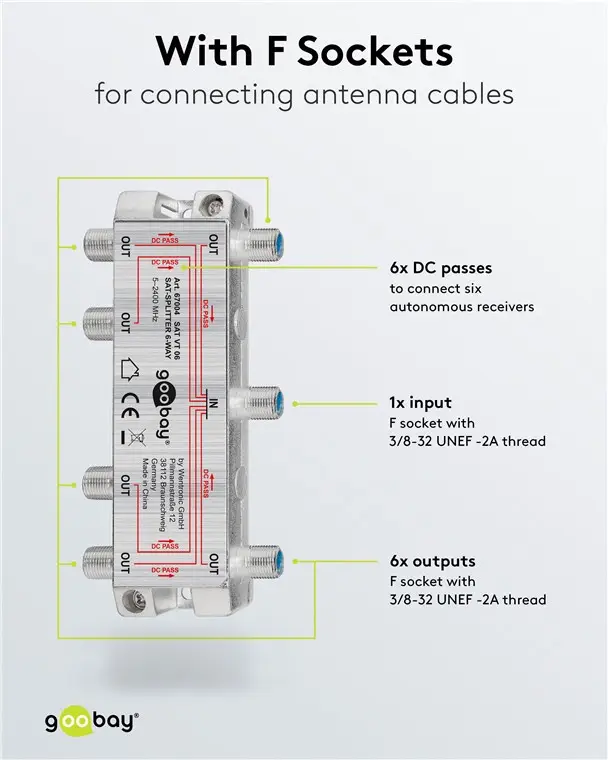

With F couplings for connecting antenna cables
DC continuity at all connections, diode-decoupled
Distribution loss at 1750 MHz: 14 dB
Return loss at 1750 MHz: 14 dB
for satellite systems 5 MHz - 2400 MHz
For distributing a satellite signal to 6 connections
With F couplings for connecting antenna cables
DC continuity at all connections, diode-decoupled
Distribution loss at 1750 MHz: 14 dB
Return loss at 1750 MHz: 14 dB
Connection, type: F female
Connection 2, type: F female
Input, type: F female
Output, type: F female
Color version: silver
Color: silver
Consumption Unit: 1 pc. in polybag
Packaging type: Bulk
number of inputs: 1
Number of outputs: 6
Frequency range from: 5 MHz
Frequency range until: 2400 MHz
Markings: CE, WEEE
Details: INSERTION LOSS (IN-OUT):5 - 40 MHz: 11.5 dB40 -1000 MHz: 12 dB1000 - 2050 MHz: 17 dB2050 - 2400 MHz: 17.5 dB INSERTION LOSS (OUT-OUT):5 - 40 MHz: 20 dB40 -1000 MHz: 18 dB1000 - 2050 MHz: 18 dB2050 - 2400 MHz: 20 dB RETURN LOSS:5 - 40 MHz: 9 dB40 -1000 MHz: 12 dB1000 - 2050 MHz: 12 dB2050 - 2400 MHz: 10 dB
Connection 2, type: F female
Input, type: F female
Output, type: F female
Color version: silver
Color: silver
Consumption Unit: 1 pc. in polybag
Packaging type: Bulk
number of inputs: 1
Number of outputs: 6
Frequency range from: 5 MHz
Frequency range until: 2400 MHz
Markings: CE, WEEE
Details: INSERTION LOSS (IN-OUT):5 - 40 MHz: 11.5 dB40 -1000 MHz: 12 dB1000 - 2050 MHz: 17 dB2050 - 2400 MHz: 17.5 dB INSERTION LOSS (OUT-OUT):5 - 40 MHz: 20 dB40 -1000 MHz: 18 dB1000 - 2050 MHz: 18 dB2050 - 2400 MHz: 20 dB RETURN LOSS:5 - 40 MHz: 9 dB40 -1000 MHz: 12 dB1000 - 2050 MHz: 12 dB2050 - 2400 MHz: 10 dB
