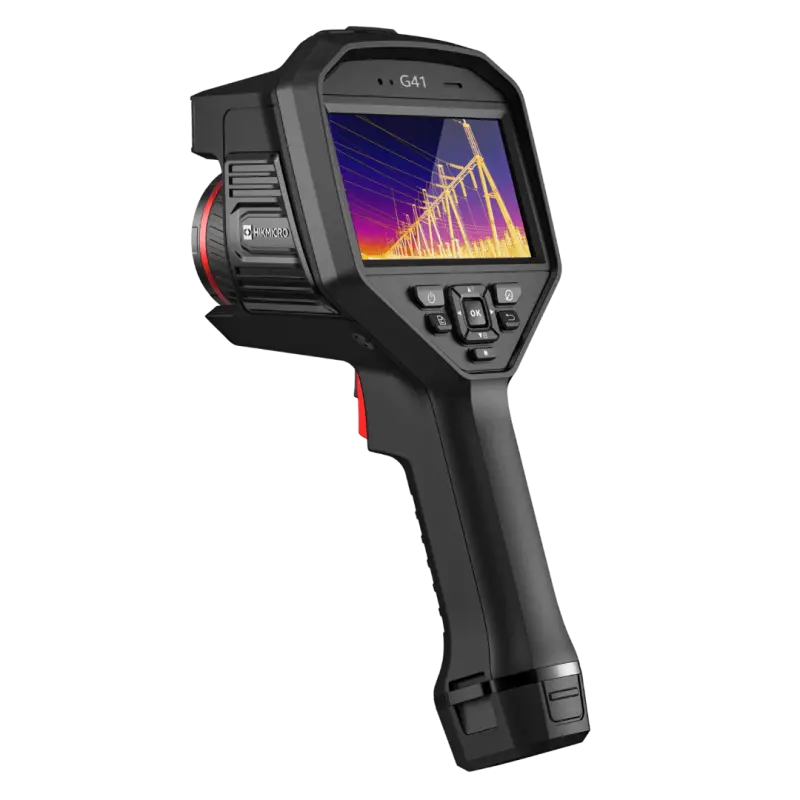

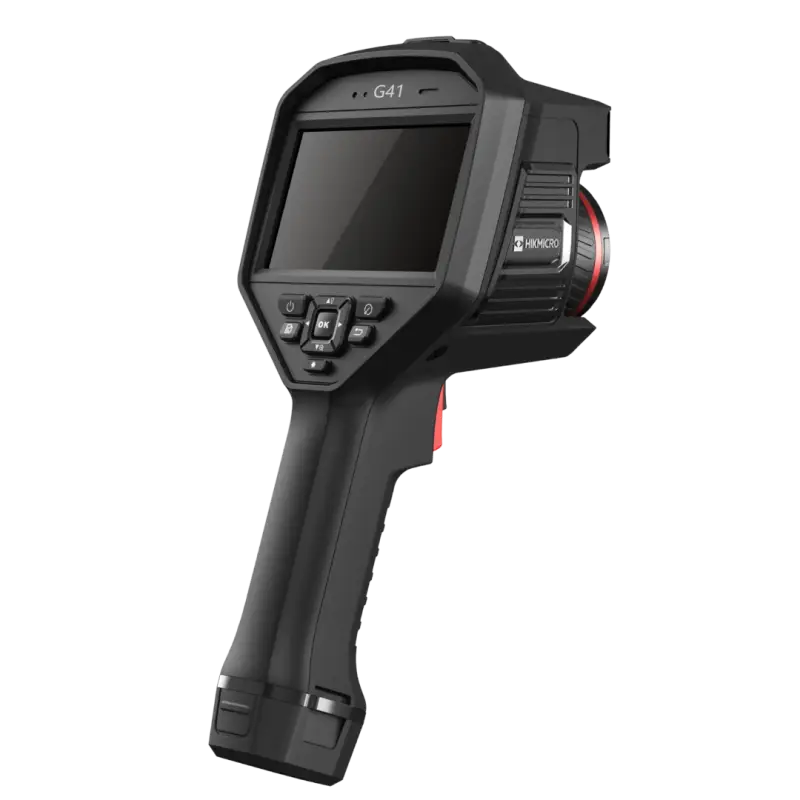

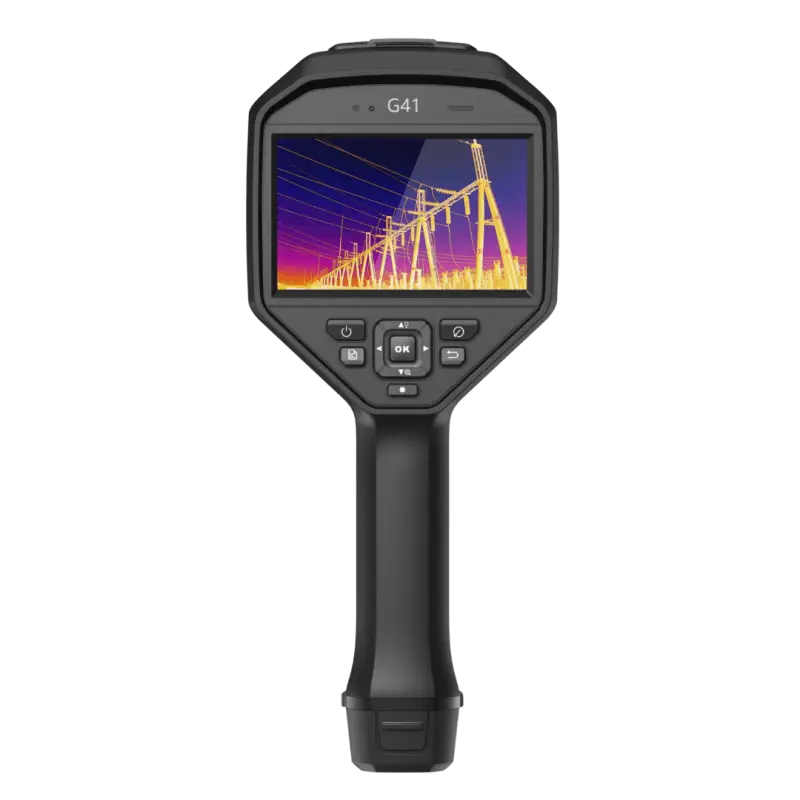

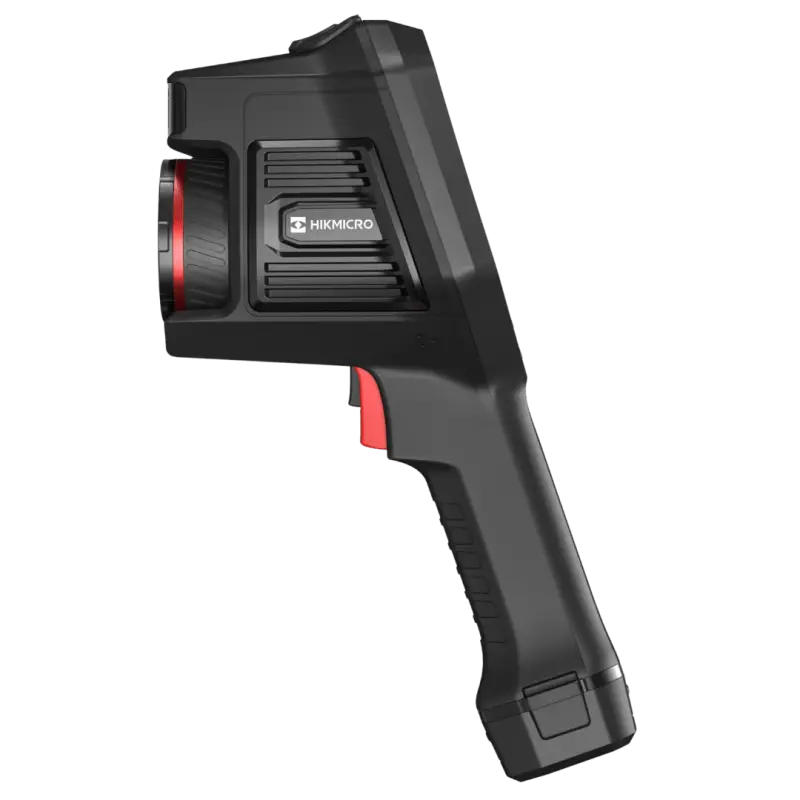

Termokaamera G41
Tootekood:HM-TP74-25SVF/W-G41
Pilt on illustratiivne
Gx1 Series: Ultra high resolution. More efficient inspection
Up to 640x480 @35mK NETD: A highly sensitive VOx detector with 640 x 480 (307,200 pixels)IR resolution, provides a distinct thermal vision of the target.
5 Quick Focus Modes: Support for 5 focus modes (Laser Assisted AF, Continuous AF, AF, Manual Focus, Touch AF) and a fast focus speed of 2 seconds help save time by providing sharper images for more accurate temperature measurements.
3 Add-on Lenses: 3 Add-on Lens 0.5X, 2X, and 3.3X are available for choice. Different teleconverter gives different Field Of View, which gives more choices when facing different scenarios.
Up to 2000°C Temperature Range: With a measurement range of up to 2000°C (3992°F), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures. (*G41H/G61H only)
Embedded Laser Distance Meter: An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.
5 Image Modes: Thermal, Fusion, PIP, Blending and Optical modes to suit your preferred.
Complete Image Annotations: In addition to supporting voice, text and QR Code Scan annotations, GPS and compass functions automatically add location and direction information to the image, helping to improve inspection efficiency and productivity.
Interchangeable Battery System: Includes 3 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.
Radiometric Video Analysis: Supports recording of radiometric video in-camera SD card storage, including all temperature data, for post analysis on PC software. Works seamlessly with HIKMICRO Analyzer software for intuitive viewing, advanced analysis, and processing of thermal data.
Up to 640x480 @35mK NETD: A highly sensitive VOx detector with 640 x 480 (307,200 pixels)IR resolution, provides a distinct thermal vision of the target.
5 Quick Focus Modes: Support for 5 focus modes (Laser Assisted AF, Continuous AF, AF, Manual Focus, Touch AF) and a fast focus speed of 2 seconds help save time by providing sharper images for more accurate temperature measurements.
3 Add-on Lenses: 3 Add-on Lens 0.5X, 2X, and 3.3X are available for choice. Different teleconverter gives different Field Of View, which gives more choices when facing different scenarios.
Up to 2000°C Temperature Range: With a measurement range of up to 2000°C (3992°F), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures. (*G41H/G61H only)
Embedded Laser Distance Meter: An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.
5 Image Modes: Thermal, Fusion, PIP, Blending and Optical modes to suit your preferred.
Complete Image Annotations: In addition to supporting voice, text and QR Code Scan annotations, GPS and compass functions automatically add location and direction information to the image, helping to improve inspection efficiency and productivity.
Interchangeable Battery System: Includes 3 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.
Radiometric Video Analysis: Supports recording of radiometric video in-camera SD card storage, including all temperature data, for post analysis on PC software. Works seamlessly with HIKMICRO Analyzer software for intuitive viewing, advanced analysis, and processing of thermal data.
Product Model: G41
IR Resolution: 480 x 360 (172,800 pixels)
NETD: < 35 mK (@ 30 °C, F#=1.0)
Image Frequency: 50 Hz
Detector Pitch: 17 μm
Spectral Range: 7.5 to 14 μm
Focal Length: 25 mm
For other optional lenses, see the respective spec sheets.
F-number: F 1.0
Field of View (FOV): 18.7° × 14°
For other optional lenses, see the respective spec sheets.
Spatial Resolution (IFOV): 0.68 mrad
For other optional lenses, see the respective spec sheets.
Focus Mode: Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF
Focus Speed: Approx. 2 second
SuperIR: 960 x 720 (691,200 pixels)
Min. Focus Distance: 0.25 m (0.82 ft)
For other optional lenses, see the respective spec sheets.
Visual Camera: 3264 × 2448 (8 MP)
Display: 800 × 480 Resolution, 4.3" LCD Touch Screen
Screen Brightness: Manual/Auto
Digital Zoom: 1.x to 8.x continuous
Image Modes: Infrared/Visual/Fusion/PIP/Blending
Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Focus Mode Palette: Above/Below/Interval
Color Alarm: Above/Below/Interval/Insulation/Condensation
Object Temperature Range: Range -20℃ to 150℃（-4 °F to 302°F)
Range 0℃ to 650℃（32°F to 1202°F）
Accuracy: Range -20 to 150°C （-4 to 302°F）：
-20 to 0℃ （-4 to 32°F）： ±2℃ （±3.6°F）
0 to 100℃ （32 to 212°F）： ±1℃ （±1.8°F）
100 to 150°C （212 to 302°F）： ±1%
Range 0 to 650°C （32 to 1202°F）：
0 to 100℃ （32 to 212°F）： ±2℃ （±3.6°F）
100 to 650°C （212 to 302°F）： ±2%
Measurement Tools: Center Spot, Hot Spot, Cold Spot
User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circle
Level and Span Mode: Auto/Manual/1-Tap Touch-screen
Inspection Route: Yes
Storage Media: Removable 64 GB Micro SD Card
Image Storage Capacity: Approx. 60,000 Images
Annotations: Voice note: max. 60 seconds;
Text note: max. 200 characters
Video Storage Capacity: Approx. 54 hours
Video File Format: MP4 video
and radiometric video
Image Format: Radiometric JPEG
Radiometric Infrared-Video Streaming (Compressed): Over UVC, Wi-Fi
Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth: Bluetooth 4.2
USB Interface: USB Type-C
HDMI Interface: Yes
Laser Distance Meter: Indoor distance: 50 m (164 ft);
Outdoor distance: 10 m (33 ft).
GPS & Compass: Yes
Battery Type: Interchangeable and rechargeable Li-ion battery
Battery Operating Time: Approx. 4 hours
Battery Charging Time: Approx. 4 hours fully charged
Power Saving Mode: Yes
Protection Level: IP54, IEC 60529
Drop Test Height: 2 m (6.56 ft), IEC 60068-2-31
Safety: IEC 61010-1
EMC: EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3, EN IEC 61326-1, EN IEC 61326-2-2
Vibration: 2 g, IEC 60068-2-6
Shock: 25 g, IEC 60068-2-27
Working Temperature Range: -20°C to 50°C ( -4°F to 122°F)
Storage Temperature Range: -20°C to 60°C ( -4°F to 140°F)
Relative Humidity: < 95% non-condensing
Weight: Approx. 1058 g (2.33 lb)
Dimension: 284.7 × 120.6 × 124.5 mm (11.21 × 4.75 × 4.9 in)
Tripod Mounting: UNC ¼”-20
Laser Pointer: Yes
Warranty: 3 years for the full product, 10 years for the detector, and 2 years for the battery.
LED Light: Yes
Laser: Yes, Class II, Wavelength: 635 nm; Power: < 1 mW
