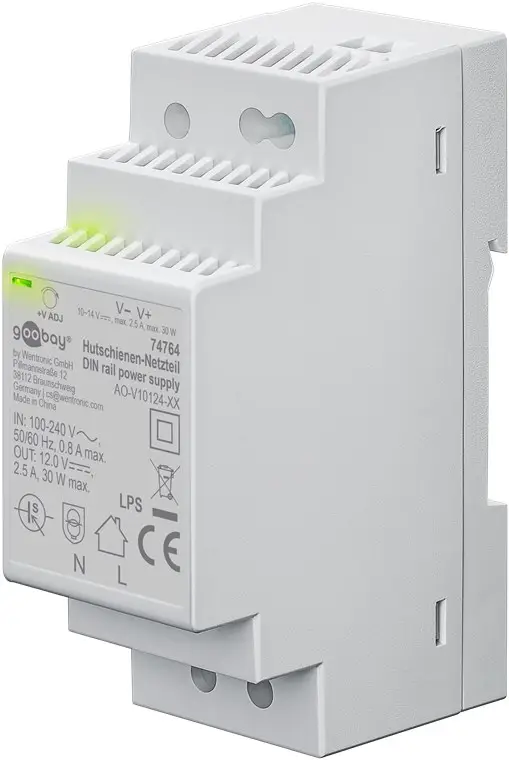

DIN Rail Power Supply 12 V (DC), 2.5 A, 30 W

Suitable for DIN mounting, TH 35/7.5 or TH 35/15 (formerly TS 35/7.5, TS 35/15)
The 12 V power supply is suitable for use as a doorbell transformer, for operating surveillance and access systems, door openers, door intercoms, doorbell systems, etc.

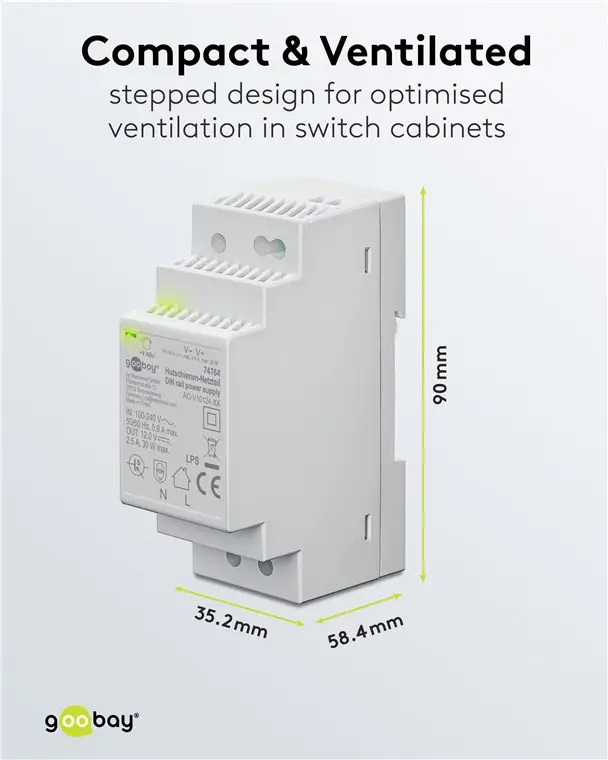

35.2 mm wide, it is particularly compact and can be quickly and easily mounted on a DIN rail with a top-hat profile, e.g. in a control cabinet, using a click system

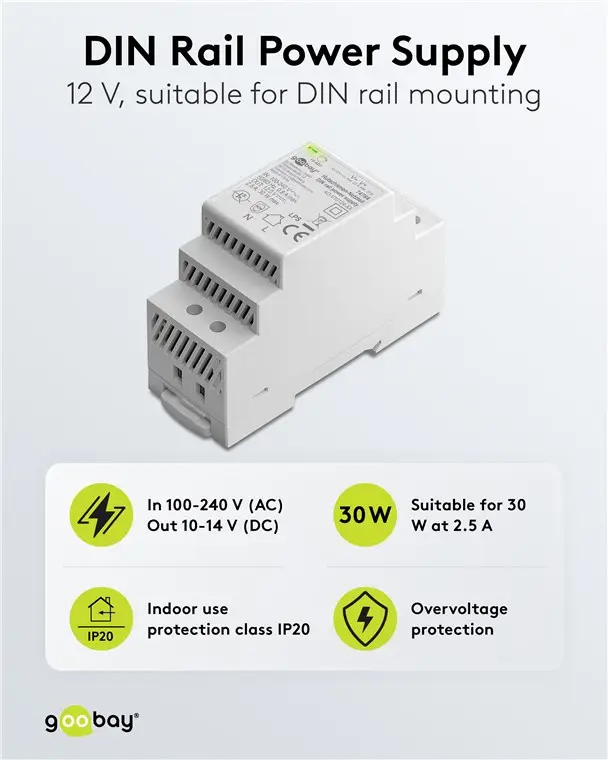

The DIN rail transformer converts the input voltage in the range of 100-240 V (AC) at 50/60 Hz to 12 V constant DC voltage
Features a variable DC output voltage of 10-14 V and high efficiency

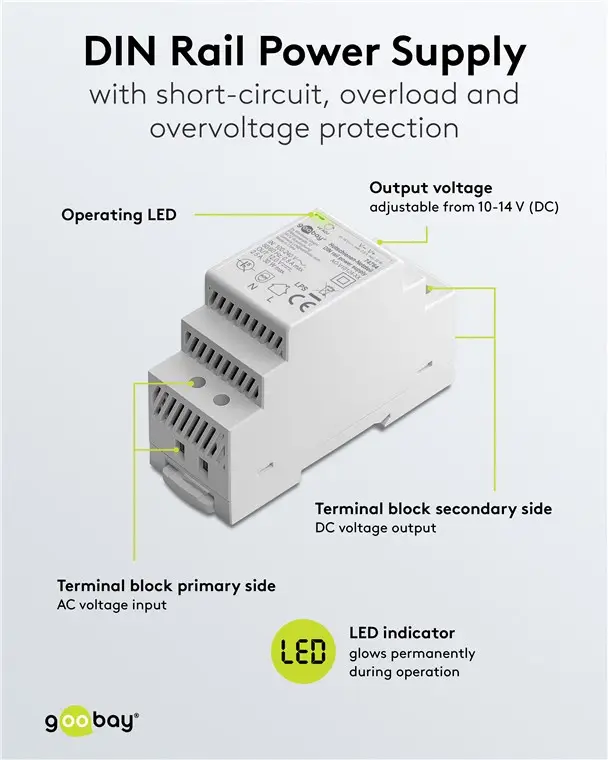

The switch-mode power supply is particularly safe thanks to overvoltage, overload and short-circuit protection, IP20 protection and safe electronic separation according to protection class II
The 230 V to 12 V transformer is passively cooled by convection and connected via touch-protected screw terminals
With integrated LED display that glows permanently when the power supply is in operation and working properly
The DIN rail power supply is the ideal solution for devices that must be permanently ready for use and rely on a stable supply of constant DC voltage (CV), e.g. doorbells, access systems or sensors. The compact, staircase-shaped design makes the power supply perfect for confined spaces with demanding heat requirements, e.g. in control cabinets or junction boxes.
